Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Oriental laser
-
Model Number:
-
diode laser stack
-
Wavelength:
-
755 /810nm/1064
-
laser Power:
-
1600w
-
laser bar quantity:
-
16bars
-
Lifetime:
-
40 millions shots
-
laser type:
-
micro macro channel
-
laser bar:
-
Germany imported
-
Operation Mode:
-
CW
Quick Details
-
Feature:
-
Hair Removal, Blood Vessels Removal, Pore Remover, Face Lift, Skin Tightening, Whitening, Skin Rejuvenation
-
After-sales Service Provided:
-
Online support, Video technical support
-
Warranty:
-
1 Year
-
Place of Origin:
-
China
-
Brand Name:
-
Oriental laser
-
Model Number:
-
diode laser stack
-
Wavelength:
-
755 /810nm/1064
-
laser Power:
-
1600w
-
laser bar quantity:
-
16bars
-
Lifetime:
-
40 millions shots
-
laser type:
-
micro macro channel
-
laser bar:
-
Germany imported
-
Operation Mode:
-
CW
OEM ODM high power 1600w 755nm 808nm 1064nm diode laser stack for hair removal beauty machine
Laser Diode Stack is designed for high laser power application, such as hair removal, laser cladding and etc.
Oriental-laser Provide various kinds of vetica l MCC(micro channel cooler) and MCC(macro channel cooler) diode laser stack for Hair removal application.
Advantage:
Oriental-laser major in diode laser mounting over 15 years. We buy diode bar from Germany and mount diode laser stack in our own clean-lab. For hair removal application, Laser stack have 1 year warranty periods or 10 millions shots guarantee time. Customer no longer need to worry about laser burn out.

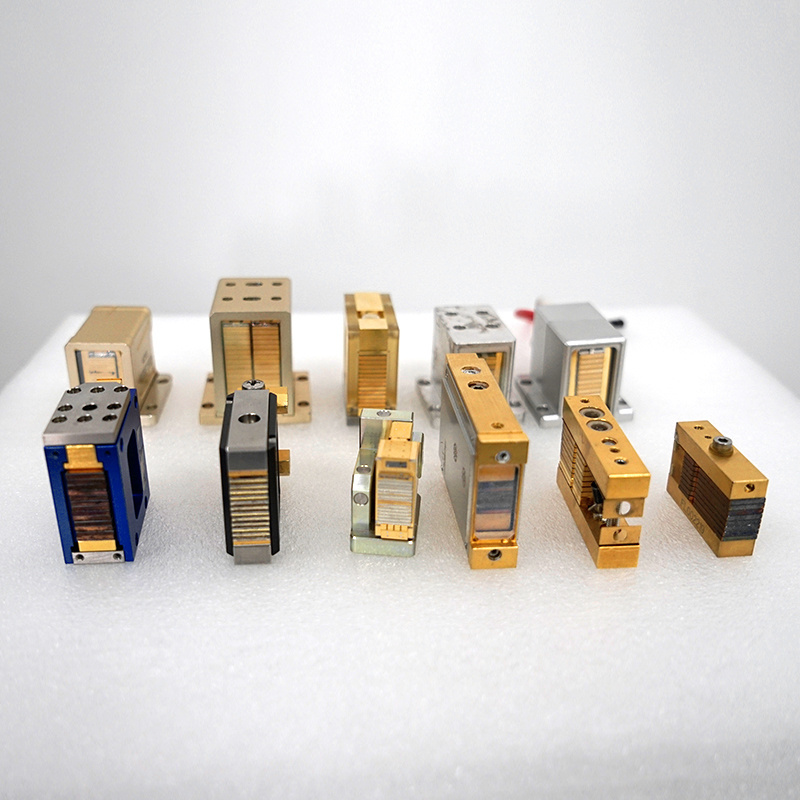

macro channel diode laser micro channel diode laser
There are 3 main reasons for long life time of our diode laser stack:
1. We use Jenoptik laser diode bar from Germany which has the highest quality.
2. We have 15 years laser diode bar mounting experience. Various of laser we can mounted in our 10k class clean room. Such as Micro channel cooling laser stack, Vertical diode laser stack for both industry and hair removal application.
3. Oriental-laser insists on high standards of workmanship. All of laser stack are assembled in our 10K class clean room. First step, we test each diode bar and assemble it to the vertical laser stack. Then do burning test of the stack over 8hours. All above step to make sure each handle have high quality.
Specifications
|
Output Power |
300W |
500W |
1000W and More |
|
Wavelength |
808nm( 800-810nm)792nm ,940nm,980nm |
||
|
Number of bars |
1-20Pcs |
||
|
Solder type |
Hard solder or soft solder |
||
|
Typical Pulse Width |
10ms~ 200ms |
||
|
Repetition Rate |
0~ 10Hz |
||
|
Max Duty Circle |
20% |
||
|
Operation Current |
40A |
40A |
40A |
|
Operation Voltage |
<12V |
<20V |
<40V |
|
Cooling Requirement |
1. Flow Rate: >4.5L/min 2. Water quality: Industrial grade, anti-freeze possible, particle filter<100µm 3. Chiller water Temperature: 15°C-25°C. |
||
Special Notes:
· Do not bid if you don't understand the applications.
· The buyer must know how to drive the bar. Professional Laser Diode Driver is required.
· The buyer must know how to cool the bar. Water cooling is required.
