Quick Details
-
Dimension(L*W*H):
-
650mm*650mm*650mm
-
Weight:
-
300KG
-
Power (kW):
-
5.5/4
-
Certification:
-
CE
-
Mounting:
-
Wooden box
-
Product name:
-
Product name
-
specification:
-
6-64
-
Fuel tank capacity:
-
45l
-
Alias:
-
Pipe press, crimping machine, shrinking machine.
-
Power(W):
-
3 kW
Quick Details
-
Place of Origin:
-
Hengshui, Hebei
-
Brand Name:
-
Kevin Extension
-
Voltage:
-
380v /220v
-
Dimension(L*W*H):
-
650mm*650mm*650mm
-
Weight:
-
300KG
-
Power (kW):
-
5.5/4
-
Certification:
-
CE
-
Mounting:
-
Wooden box
-
Product name:
-
Product name
-
specification:
-
6-64
-
Fuel tank capacity:
-
45l
-
Alias:
-
Pipe press, crimping machine, shrinking machine.
-
Power(W):
-
3 kW
pneumatic type terminal 3 inch couplamatic hydraulic hose crimper/gates pc707 hydraulic hose crimper
1. Add 50kg of hydraulic oil to 46# at a time (preferably the original brand original oil). Crimping machine
1. Add 50kg of hydraulic oil to 46# at a time (preferably the original brand original oil). Crimping machine

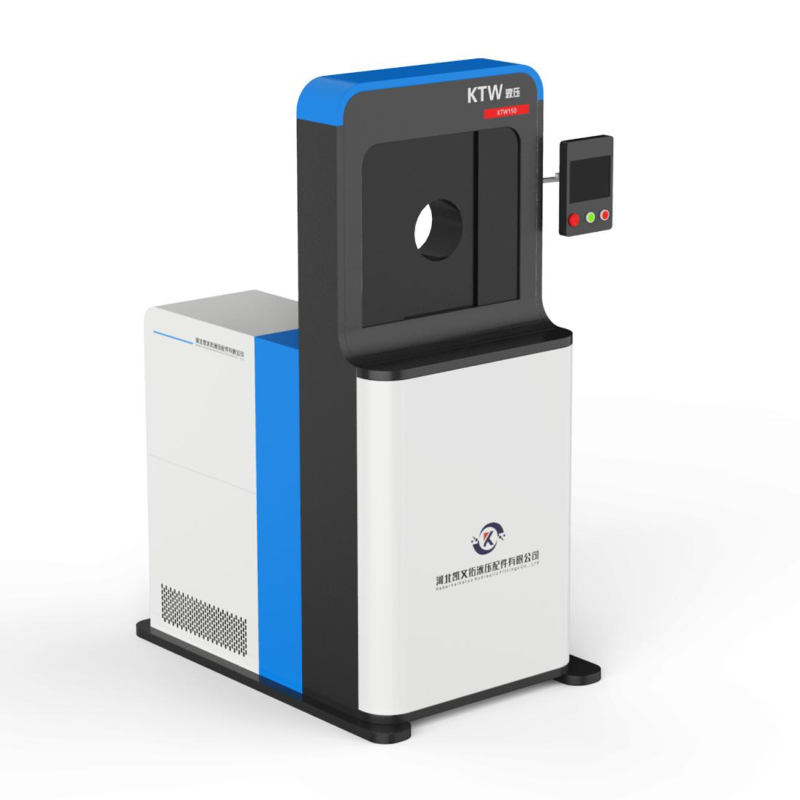

The crimping machine is a hydraulic device for crimping the pipe fitting assembly, which applies the contracting force of the matched metal joint through the die of the crimping machine, and firmly presses the metal joint on the supporting high-pressure oil pipe or automobile of the engineering machinery. Brake pipe, oil pipe, air conditioning pipe, power pipe. The crimping machine is suitable for all kinds of mechanical high and low pressure oil pipes, gas pipes, water pipes, cable joints, automobile air conditioning pipes, automobile power steering pipes, oil pipes, gasoline fuel supply pipes, as well as the buckles of construction parts and daily hot water pipes. Vehicles, engineering machinery, hydraulic machinery, welding and cutting equipment and other industries.
| Main technical parameters of hose crimping machine |
|
|
| Hose crimping range | φ6-φ64 | |
| Mold size | 105×65 (swallowtail type) | |
| Number of mold sets | 12 sets | |
| Drive motor | 4KW | |
| Oil pump discharge | 14.5L | |
| Maximum buckle pressure | 440T | |
| System rated pressure | 31.5Mpa | |
| Head material | CR12 | |
|
||
1.Are you trading company or manufacturer?
We are manufacturer and exporter.
2.How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3.Do you accept customized design?
Both ODM and OEM are OK.
4.Your rubber minimum order amount?
We did not set the amount of the minimum number of orders, as long as 10 or even a customer there, but you should understand the quantity, relative to the cost is low, the price will be even better, as a small number, you may want to pay higher unit price.
