Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 400*200*200 mm
-
Place of Origin:
-
China
-
Brand Name:
-
HBY
-
Voltage:
-
Adjustable
-
Dimension(L*W*H):
-
3700x2100x2780mm
-
Weight (KG):
-
4200 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Optional
-
Raw material:
-
Conrete
-
Block Type:
-
Hollow block
-
Product Name:
-
4-18
Quick Details
-
Type:
-
Hollow Block Making Machine
-
Brick Raw Material:
-
CONCRETE
-
Production Capacity (Pieces/8 hours):
-
4000-60000 Pieces/day
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 400*200*200 mm
-
Place of Origin:
-
China
-
Brand Name:
-
HBY
-
Voltage:
-
Adjustable
-
Dimension(L*W*H):
-
3700x2100x2780mm
-
Weight (KG):
-
4200 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Optional
-
Raw material:
-
Conrete
-
Block Type:
-
Hollow block
-
Product Name:
-
4-18

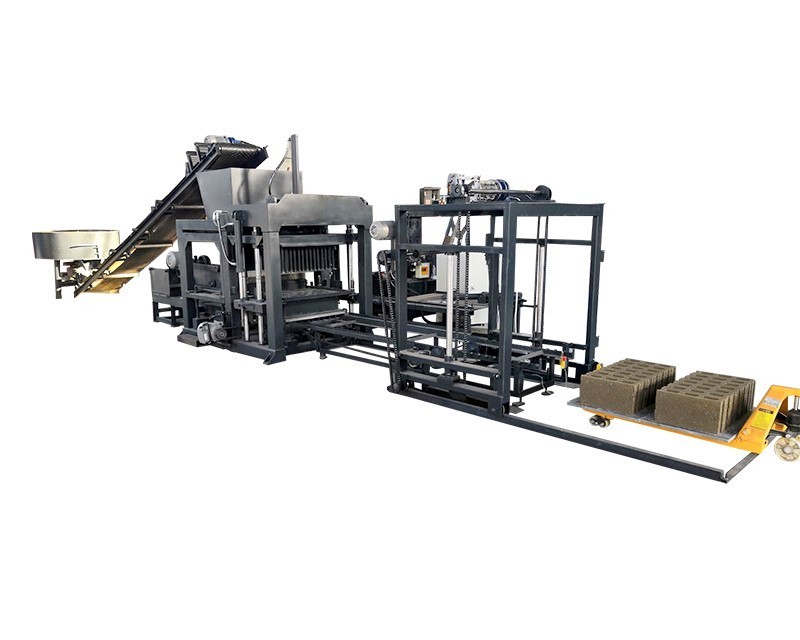

QTJ4-18hydraulic automatic brick making machine
QTJ4-18 is a fully automatic product developed by our company .And hot sell since been in the market .This machine is suitable for the small and medium sized block factories for mass production. And advantage as follows:
1)Fully automatic,PLC control. Automatic in
material feeding,material distributing,material scraping ,carriage plate placing ,brick convey.
2).High production efficiency.
videolink:
https://www.youtube.com/watch?v=XKtB88p8mic
QTJ4-18 hydraulic automatic brick making machine Main technical parameter
| Forming cycle | 18-20s |
| Power of host machine | 15kw |
| Total weight | 3.5T |
| Rated pressure | 15mpa |
| Viberating frequency | 4600r/min |
| Size of host machine | 3400x2100x2500mm |
| Pallet size | 880x550x30mm |
QTJ4-15 hydraulic automatic brick making machine Production capability
| SIZE(L*W*H) | Pcs/Mould | Pcs/hour | Pcs/8 hour |
| 400*150*200 | 6 | 1080 | 8640 |
| 400*200*200 |
4 |
720 | 5760 |
| 400*100*200 | 8 | 1440 | 11520 |
| 400*250*200 | 3 | 540 | 4320 |
| 240*115*52 | 26 | 4680 | 37440 |
| we can produce all kinds of moulds by your design | |||
Block samples
Work condition
1. Area: workshop area: 150-200m2, all factory area 2000m2, the bigger, the better.
2. Workers : two or three
3. Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
4. Water consumption per day:3%-5% of raw material .weight.
Product display
delivery
