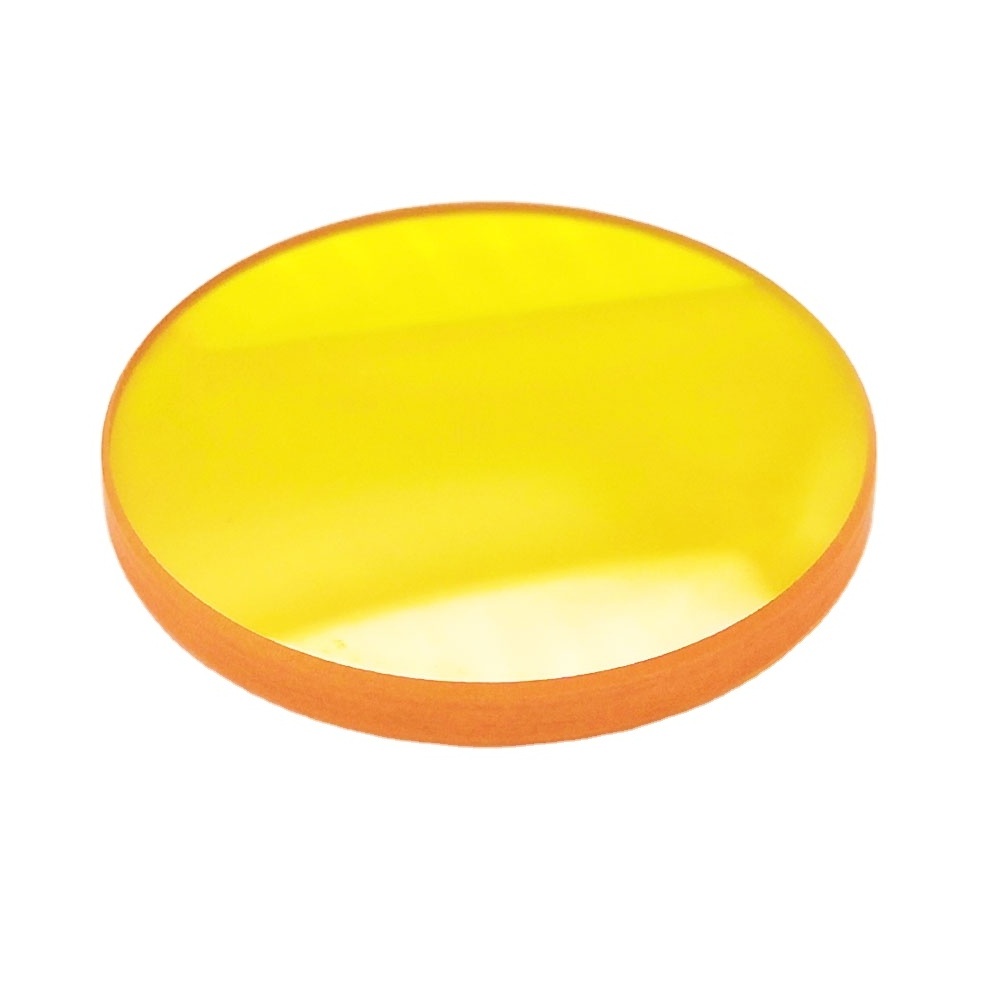

Zinc Selenide Znse Infrared Laser Lens

FOB Reference Price: Get Latest Price

≥5 Pieces

US $60

≥50 Pieces

US $30

≥200 Pieces

US $20

≥1000 Pieces

US $10

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Hubei, China

Brand Name:: Wuhan Especial Optic

Model Number:: Customization

Material:: CVD ZnSe, IR or Laser grade

Diameter:: 5-200mm

Thickness Tolerance:: ± 0.10mm

Focal length tolerance:: ±2% at 10.6microns

Surface quality:: 60/40, 40-20

Edges:: Fine Ground

Surface irregularity:: ≤5 Fringes

Centration:: < 3 arcmin

Bevel:: 0.1-0.5mm*45°

Coating:: AR coating @10.6um

Quick Details

Use:: Optical

Structure:: Plano-convex

Shape:: Spherical

Place of Origin:: Hubei, China

Brand Name:: Wuhan Especial Optic

Model Number:: Customization

Material:: CVD ZnSe, IR or Laser grade

Diameter:: 5-200mm

Thickness Tolerance:: ± 0.10mm

Focal length tolerance:: ±2% at 10.6microns

Surface quality:: 60/40, 40-20

Edges:: Fine Ground

Surface irregularity:: ≤5 Fringes

Centration:: < 3 arcmin

Bevel:: 0.1-0.5mm*45°

Coating:: AR coating @10.6um

Product Description

Zinc selenide (ZnSe) Lens Features:

*Usable Transmission Range is 600nm to 16 micron
*Low dispersion
*AR coating for 10.6, 2-13 or 8-12µm
*Plano-Convex ZnSe lenses according to your design

Zinc Selenide (ZnSe) Lenses, which offer high transmission from 0.6-16 μm, are available with a broadband AR coating optimized for 2-13µm and 8-14µm spectral range deposited on both surfaces. This coating can be applied on upon request.

This coating greatly reduces the high surface reflectivity of the substrate. ZnSe lenses are typically used as collimators for laser applications in the 0.6-16.0 μm spectral region. Due to the low absorption coefficient of ZnSe, these Zinc Selenide lenses are also particularly well suited for use with high-power CO2 lasers.

ZnSe properties
Chemical Formula	ZnSe
Molecular Weight	144.33
Crystal Class	Cubic, hexagonal
Crystal Structure	Polycrystalline
Density, g/cm3 at 293 K	5.27
Melting Temperature, K	1790
Thermal Conductivity, W/(m K) at 300 K	18
Thermal Expansion, 1/K at 173 K at 273 K at 473 K	5.6 x 10-6 7.1 x 10-6 8.3 x 10-6
Specific Heat, cal/(g K) at 296 K	0.081
Debye Temperature, K	246
Bandgap, eV	2.7
Solubility in water at 298 K	0.001 g/100 g H2O
Knoop Hardness, kg/mm2(100 g load)	105
Young's Modulus, GPa	510
Bulk Modulus, GPa	75.79
Poisson's Ratio	70

Our Company

Wuhan Especial Optic.,INC was founded in 2012,located in Wuhan East Lake High-tech Development Zone.
Especial Optic focuses on the design, development and production of infrared optical components and visible optical components, and is good at developing and producing kinds of infrared optical components of ultra high precision, ultra thin, very large, ultra small and customized service. The company has optical optimization design, precision optical processing and optical coatingtechnology and production technology, with complete production processing and testing equipment, perfect quality management system.
After many years of unremitting efforts, Especial Optic has successfully produced a variety of special customized products and small batch infrared optical components, accumulated rich experience, we look forward to continue to provide more perfect service for our customers.
With continuous technological progress and management innovation, we will create more value and provide better products and services for our customers.

Factory

Lobby

Coring

Forming

Rounding

Polishing

High speed polishing

Low speed polishing machine

Mould warehouse

Interferometer

Spectrophotometer

Central deviation measuring instrument

30-fold microscope

Coating machine

Our Service

a: Dimesion size : 5-300mm , thickness up to customer requirements

b: Many material could be choosed, like BK7, Fused Silica, Sapphire, MgF2, CaF2,Ge, Si, Znse,ZnS and so on.

c: AR HR DLC coating or as your request

d: Product shape : As required

For more information, kindly visit our website: www.wheo.cn

Our products

uncaoted BK7 windows

caf2 window

AR coating Ge window

ZnSe window

AR coating SI window

AR coating ZnS window

Sapphire window

Fused Slica window

optical lens

cylindrical lens

Si lens

optical convex mirror

Al coated mirror

gold coated mirror

optical bandpass filter

optical prism

Si galvanometer

Packing & Delivery

Packing Details: Protective film or Capacitor paper,Pearl cotton,Cardboard box.
Delivery Details: 7 days for stock.

3-4 weeks for custom-made products for sample.

in common, 4 weeks for mass production

Wuhan Especial Optic.,INC

Contacts: David Liu

T: 86-027-87504830

P: +86 18622556450

Skype: +86 18622556450

Email: David(at)wheo.cn

Website: www.wheo.cn

FAQ

What's the way of shipping?
We accept DHL, Fedex, TNT, UPS, SF, EMS etc. If you have your own express account, it's great.

How to pay?

We usually draft Trade Assurance Order on Alibaba, you can pay by the most convenient way which also protect most of your rights.

What's the deliver time?
For inventory: the delivery time is around 5 workdays.

Customized products: the delivery time is 10 to 30 workdays. According to the quantity and precision.

How to ensure the safety of payment?
Wuhan Especial Optic.,INC is the gold supplier and supports Alibaba Trade Assurance. Payment<=5000USD, 100% in advance. Payment>5000USD, 50% T/T in advance, balance before shippment.

Can I customize the products based on my need?
Yes, we can customize the material, specifications and optical coating for your optical components based on your needs. OEM is available.
