Quick Details
-
Table Travel (Z) (mm):
-
900 mm
-
Travel (W-axis) (mm):
-
700 mm
-
Core Components:
-
other
-
Positioning Accuracy (X axis) mm:
-
0.01
-
Positioning Accuracy (Y axis) mm:
-
0.01
-
Positioning Accuracy (Z axis) mm:
-
0.01
-
Range of Spindle Speed(r.p.m):
-
900 r.p.m
-
Spindle Motor Power(kW):
-
5.5
-
Place of Origin:
-
China
-
Brand Name:
-
RICHON
-
Dimension(L*W*H):
-
2680*1500*2325
-
Weight (T):
-
3.8 T
-
Product name:
-
High Precision Boring Machine
-
Functions:
-
Broing
Quick Details
-
Table Size (mm):
-
500*1500
-
Table Travel (X) (mm):
-
1500 mm
-
Table Travel (Y) (mm):
-
500 mm
-
Table Travel (Z) (mm):
-
900 mm
-
Travel (W-axis) (mm):
-
700 mm
-
Core Components:
-
other
-
Positioning Accuracy (X axis) mm:
-
0.01
-
Positioning Accuracy (Y axis) mm:
-
0.01
-
Positioning Accuracy (Z axis) mm:
-
0.01
-
Range of Spindle Speed(r.p.m):
-
900 r.p.m
-
Spindle Motor Power(kW):
-
5.5
-
Place of Origin:
-
China
-
Brand Name:
-
RICHON
-
Dimension(L*W*H):
-
2680*1500*2325
-
Weight (T):
-
3.8 T
-
Product name:
-
High Precision Boring Machine
-
Functions:
-
Broing
PRODUCT DESCRIPTION

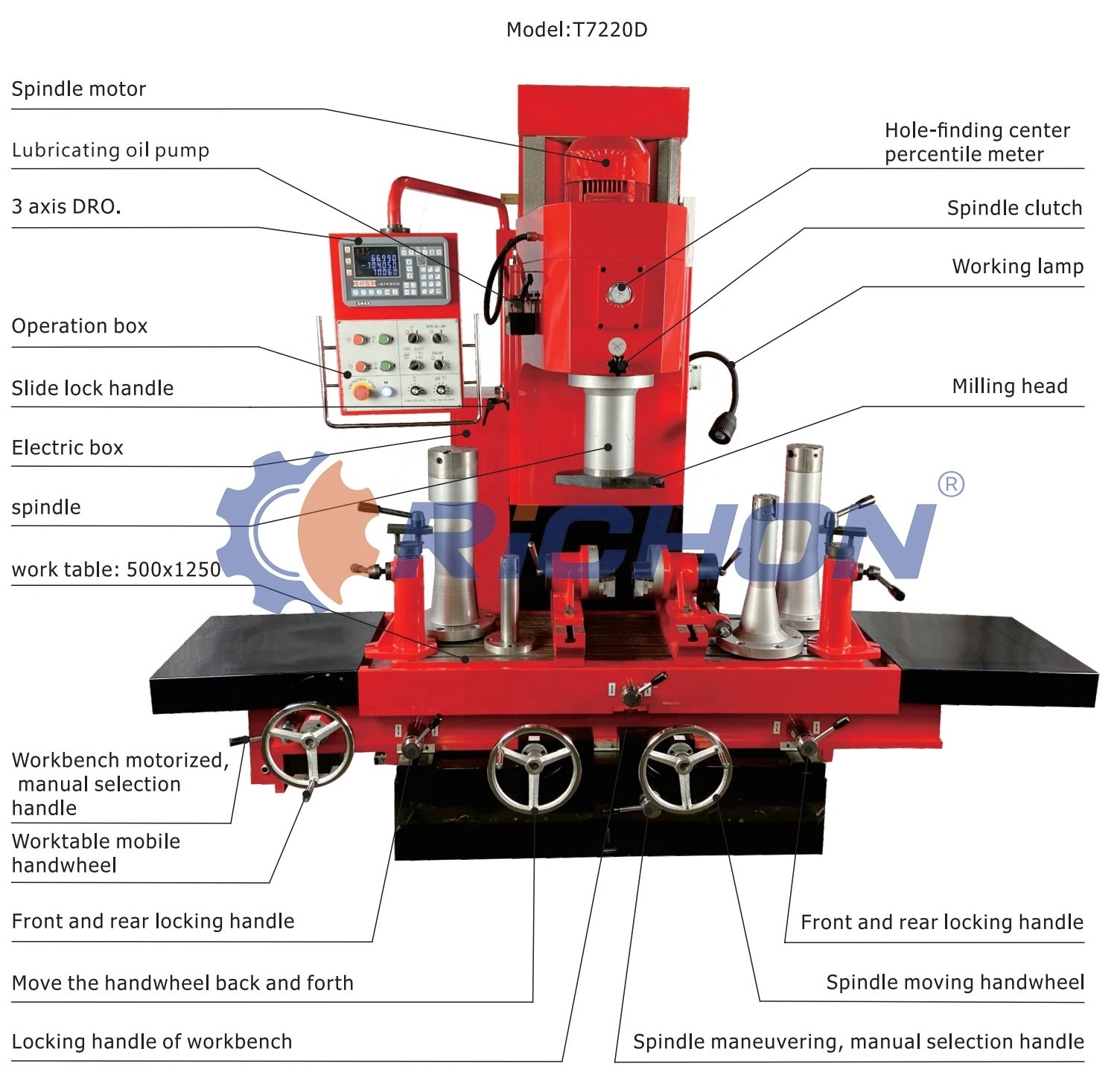

T7220D
BORING AND MILLING MACHINE
Customized color
Charicteristics
Stepless of spindle turning ,feeding and table travelling
Rotating speed and feed of spindle as well as the movement of worktable is free—setup, automatical returning of spindle can be realized
Longitudingal and cross movement of table
Complete set of accessories of boring, milling, drilling & reaming and easy exchange
Tool fast centering device
Tool measuring device
Boring depth control device
Table with digital readout for jig borer machine
Specifications
Stepless of spindle turning ,feeding and table travelling
Rotating speed and feed of spindle as well as the movement of worktable is free—setup, automatical returning of spindle can be realized
Longitudingal and cross movement of table
Complete set of accessories of boring, milling, drilling & reaming and easy exchange
Tool fast centering device
Tool measuring device
Boring depth control device
Table with digital readout for jig borer machine
Specifications
|
ITEMS
|
|
|
T7220D
|
|
|
Max. boring diameter
|
|
Mm
|
φ200
|
|
|
Max. boring depth
|
|
Mm
|
500
|
|
|
Max.milling area
|
|
Mm
|
400x1000
|
|
|
Max. drilling& reaming diameter
|
|
Mm
|
φ30
|
|
|
Spindle speed
|
|
r/min
|
120-860
|
|
|
Feeding of the spindle
|
|
Mm/min
|
14-900
|
|
|
Rapid moving speed of the spindle
|
|
Mm/mim
|
900
|
|
|
Spindle travel
|
|
Mm
|
700
|
|
|
Distance between spindle end face and table
|
|
Mm
|
0-700
|
|
|
Distance between spindle axis and carriage vertical plane
|
|
Mm
|
365
|
|
|
Longitudinal feed of worktable
|
|
Mm/mim
|
32-1350
|
|
|
Rapid moving speed of the table longitudinal travel
|
|
Mm/mim
|
1350
|
|
|
Max. longitudinal travel of the working table
|
|
Mm
|
1500
|
|
|
Max. cross travel of the working table
|
|
Mm
|
200
|
|
|
Worktable size(W*L)
|
|
Mm
|
500*1500
|
|
|
Dimensional precision of boring hole
|
|
|
H7
|
|
|
Machining precision
|
Roundness
|
Mm
|
0.005
|
|
|
|
Cylindricity
|
|
0.01/300
|
|
|
|
Milling flatness
|
|
0.10
|
|
|
Surface roughness
|
Boring
|
Um
|
Ra2.5
|
|
|
|
Milling
|
|
Ra3.2
|
|
|
Main motor power
|
|
Kw
|
5.5
|
|
|
Overall dimensions (L*W*H)
|
|
Cm
|
260*163*230
|
|
|
Packing dimensions(L*W*H)
|
|
Cm
|
225*190*228
|
|
|
N.W./G..W.
|
|
kg
|
3500/3800
|
|
RECOMMENDED PRODUCT
COUPONS
Q1:How long guarantee period you offer?/ how is warranty?
A1:12 month guarantee after machine on board.
Q2: What services are available during the guarantee period?
A2: Free replacing parts available in the warranty period.cost-value replacing parts available beyond thewarranty period.Quick action and reply for the technical questions at any time.
Q3: Can you provide training for operation CNC machines?
A3: Yes, free training in our factory or engineer overseas service available as customerrequirements(relative cost born by customer.
Q4: Can you provide customized machine or Special purpose machine?
A4: Yes, we provide different kinds processing solutions for customers, in order to meet differentrequirements.
Q5: Can we visit your factory before order?
A5: Sure, we warmly welcome you to visit our factory at any time. The more you know us, the more youtrust us! So you can rest assured on our quality products and our best services.
Q6: Where is your factory located?
A6:Our factory is located in Kunming city, Yunnan province, in the southwest of China.
