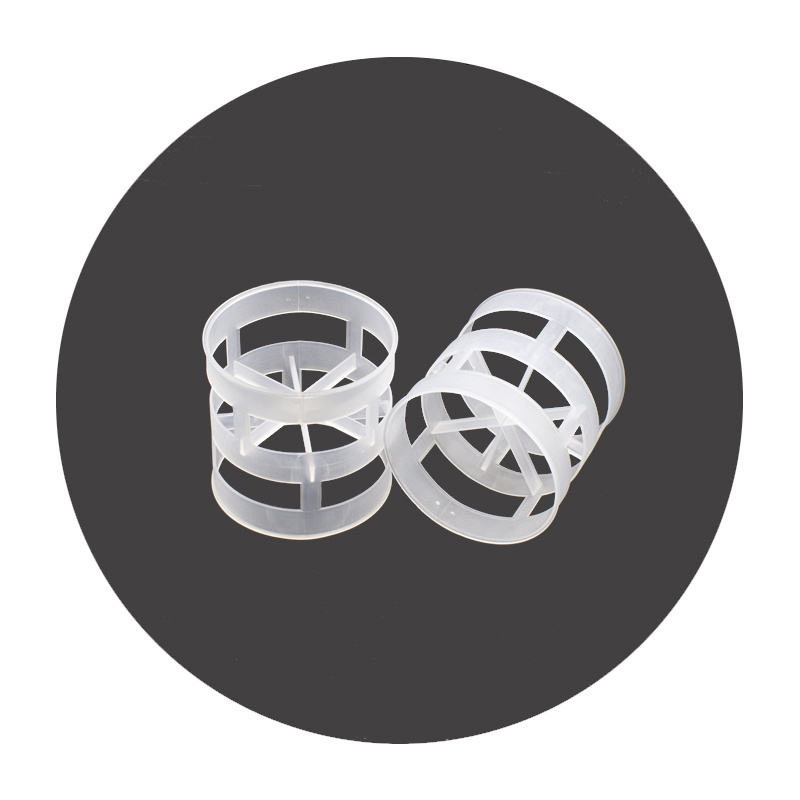

Plastic Pall Ring packing is a high hole diameter equal to the packing ring, each window there are five tongue leaves, each leaf
tongue ring in turn point to heart, upper and lower levels of the location of the opposite window at different times and in general Central area of wall openings about the total area of about 30%. With porosity, and pressure drop and low height of mass transfer unit, the pan-point high, vapor-liquid contact with the full, the proportion of small, high mass transfer efficiency.
This structure improves the vapor-liquid distribution, make full use of the inner surface of the ring, so that the tower fill the gas and liquid form from the free passage.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
ZT-PCR
-
Product name:
-
Polypropylene PP PE RPP PVC CPVC PTFE PVDF Plastic Packing Pall Ring
-
Material:
-
PP; PE; RPP; PDF; PVDF ect
-
Size:
-
16/25/38/50/76mm
-
Package:
-
Jumbo bags,Waven bags,carton Box + Wooden Pallet
-
Color:
-
Natural
-
Type:
-
Chemical Packing
-
Usage:
-
Tower packing
-
MOQ:
-
1 Cubic Meter
-
Application::
-
Tower packing for Absorption,Scrubbing and stripping services
-
Keyword:
-
Plastic Pall Ring
Quick Details
-
Processing Service:
-
Moulding
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
ZhongTai
-
Model Number:
-
ZT-PCR
-
Product name:
-
Polypropylene PP PE RPP PVC CPVC PTFE PVDF Plastic Packing Pall Ring
-
Material:
-
PP; PE; RPP; PDF; PVDF ect
-
Size:
-
16/25/38/50/76mm
-
Package:
-
Jumbo bags,Waven bags,carton Box + Wooden Pallet
-
Color:
-
Natural
-
Type:
-
Chemical Packing
-
Usage:
-
Tower packing
-
MOQ:
-
1 Cubic Meter
-
Application::
-
Tower packing for Absorption,Scrubbing and stripping services
-
Keyword:
-
Plastic Pall Ring
Product Description
Plastic Pall Ring for tower packing
|
Product name
|
|
|
|
Plastic pall ring
|
|
|
|||||
|
Material
|
|
|
|
PP/RPP/PVC/CPVC/PVDF/PTFE, etc
|
|
|
|||||
|
Life span
|
|
|
|
>3 years
|
|
|
|||||
|
Size( mm)
|
|
Surface area m2/m3
|
Void volume %
|
Packing number pieces/ m3
|
Packing density Kg/m3
|
Dry packing factor m-1
|
|||||
|
3/5”
|
16*16*1
|
188
|
91
|
170000
|
85
|
275
|
|||||
|
1”
|
25*25*1.2
|
175
|
90
|
53500
|
69
|
239
|
|||||
|
1-1/2”
|
38*38*1.4
|
115
|
89
|
15800
|
69
|
220
|
|||||
|
2”
|
50*50*1.5
|
93
|
90
|
6500
|
52
|
127
|
|||||
|
3”
|
76*76*2.6
|
73.2
|
92
|
1927
|
48
|
94
|
|||||
|
4”
|
100*100*3
|
52.8
|
94
|
1000
|
48
|
82
|
|||||
Physical & Chemical Properties of Plastic Pall Ring
Plastic tower packing can be made from heat resistant and chemical corrosion resistant plastics, including polyethylene
(PE),polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chlorinated polyvinyl chloride (CPVC),
polyvinyiidene fluoride (PVDF) and Polytetrafluoroethylene (PTFE). The temperature in media ranges from 60 Degree C to 280 DegreeC.
Material:
Our Factory assure all tower packing made from 100% Virgin Material.
Plastic tower packing can be made from heat resistant and chemical corrosion resistant plastics, including polyethylene
(PE),polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chlorinated polyvinyl chloride (CPVC),
polyvinyiidene fluoride (PVDF) and Polytetrafluoroethylene (PTFE). The temperature in media ranges from 60 Degree C to 280 DegreeC.
Material:
Our Factory assure all tower packing made from 100% Virgin Material.
|
Performace/Material
|
PE
|
PP
|
RPP
|
PVC
|
CPVC
|
PVDF
|
|
Density(g/cm3) (after injection molding)
|
0.98
|
0.96
|
1.2
|
1.7
|
1.8
|
1.8
|
|
Operation temp.(℃)
|
90
|
>100
|
>120
|
>60
|
>90
|
>150
|
|
Chemical corrosion resistance
|
GOOD
|
GOOD
|
GOOD
|
GOOD
|
GOOD
|
GOOD
|
|
Compression strength(Mpa)
|
>6.0
|
>6.0
|
>6.0
|
>6.0
|
>6.0
|
>6.0
|
Detailed Images
Application
Plastic Pall Ring
These various plastic tower packing are widely used in petroleum and chemical, alkali chloride, gas and environmental protection industries with max. temperature of 280°.
Packing & Delivery
PP polypropylene plastic packing pall ring
Packaging Details:Plastic woven bag, ton bag, carton box.
Port:shanghai; shenzhen, ningbo
|
Package type
|
Container load capacity
|
|
|
Delivery time
|
Quality insurance
|
Payment terms
|
||
|
|
20 GP
|
40 GP
|
40 HQ
|
|
|
|
||
|
Ton bag
|
20-24 m3
|
40 m3
|
48 m3
|
Within 3-10 days
|
Chinese national standard; SGSOffer quality assurance as request.
|
T/T, L/C, Paypal, West Union, Paypal
|
||
|
Plastic bag
|
25 m3
|
54 m3
|
65 m3
|
|
|
|
||
|
Paper box
|
20 m3
|
40 m3
|
40 m3
|
|
|
|
||
Certifications
Our Service
1.Quality: Excellent quality is our first pursuite, we have strict quality contral by our QC team.
2.Capacity: Constantly introducing new equipment to meet clients production requirment and market changing
3.Team: Specilized in Chemical Packing for more than 12 years, professional export team give customer comprehensive service
4.Efficiency: 24 hours on line service to solve all your questions.(Email, Trademanager, Skype, MSN, WhatsApp, Telphone), Factory direct sale price will be provided in 24 hours.
5.Customized: size & shape could be made as customer requirments
6.Payment: flexible and diverse payment ways can be chosen, make you more convenient
Our Company
Pingxiang Zhongtai Environmental Chemical Packing Co., Ltd was established in 2003, It is a professional manufacturer and exporter that has more than 10 years experience in Chemical Packing. We are located in West Section Hi-Tech Industry Park Pingxiang City, Jiangxi Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
