Quick Details
-
Voltage:
-
380V 50Hz
-
Dimension(L*W*H):
-
2302*1035*2015mm
-
Weight:
-
4500 kg
-
Model number:
-
SZLH25,32,35,40
-
Material:
-
stainless steel,alloy steel
-
Conditioner:
-
one,two or three
-
Pellet size:
-
1-12mm
-
Item:
-
cattle feed pellet machine
-
Bearing:
-
Imported
-
Motor:
-
Siemens Brand
-
Spare part:
-
ring die and roller
-
Factory located:
-
Liyang city,Jiangsu province,China
Quick Details
-
Max. Capacity:
-
20 ton/h
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
RD
-
Voltage:
-
380V 50Hz
-
Dimension(L*W*H):
-
2302*1035*2015mm
-
Weight:
-
4500 kg
-
Model number:
-
SZLH25,32,35,40
-
Material:
-
stainless steel,alloy steel
-
Conditioner:
-
one,two or three
-
Pellet size:
-
1-12mm
-
Item:
-
cattle feed pellet machine
-
Bearing:
-
Imported
-
Motor:
-
Siemens Brand
-
Spare part:
-
ring die and roller
-
Factory located:
-
Liyang city,Jiangsu province,China

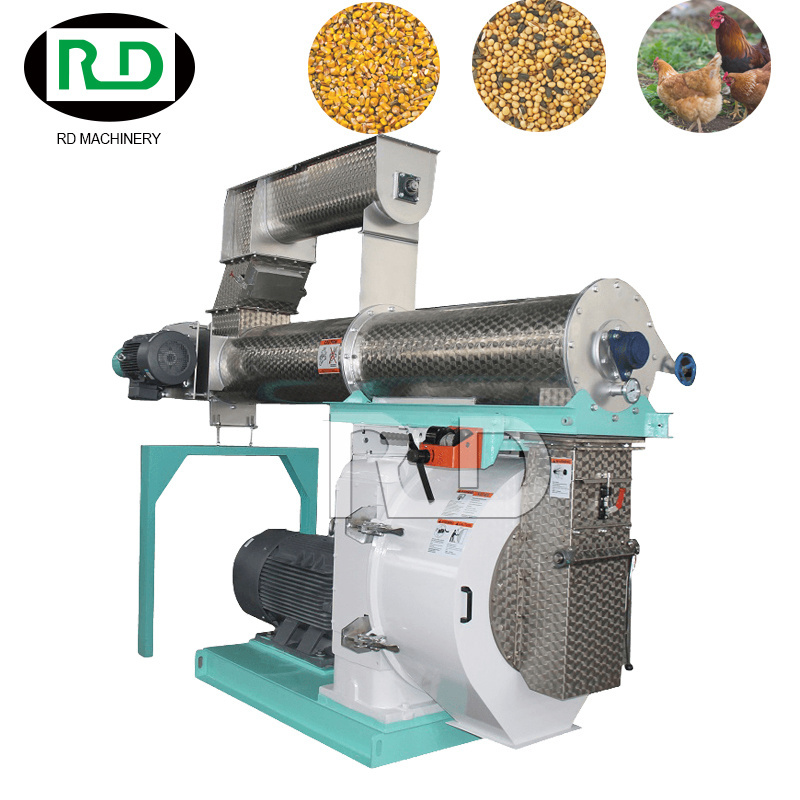

The capacities of different models range from 1T/H to 40T/H to meet different needs. The core part is made of stainless steel and
special alloy steel to ensure the durability and corrosion resistance of the machine. The motor adopts Siemens motor and has long service life. The ring die design is reasonable, the material is discharged quickly, there is no clogging, the pellets are formed to a high degree, and the feed quality is high.
It is suitable for a variety of feed types, livestock feed such as pig, cattle, sheep and horse feed, poultry feed such as
chicken, duck and goose feed, aquatic feed such as shrimp, sinking fish feed, etc.
chicken, duck and goose feed, aquatic feed such as shrimp, sinking fish feed, etc.
Versatility of RD SERIES Feed Pellet mill:
All animal feed types except floating fish feed can be produced. Such as a variety of poultry feed, livestock feed, ruminant feed, shrimp feed and so on.
|
Mode
|
Main Power
|
Capacity(t/h)
|
Feeder Power
(kw)
|
Conditioner Power(kw)
|
Die Dia(mm)
|
|
RD250
|
22
|
0.5-1.5
|
0.75
|
2.2
|
250
|
|
RD320
|
37
|
2-3
|
0.75
|
2.2
|
320
|
|
RD350
|
55
|
3-5
|
0.75
|
3
|
350
|
|
RD400
|
75/90
|
3-10
|
1.5
|
5.5
|
400
|
|
RD420
|
90/110
|
3-14
|
1.5
|
5.5
|
420
|
|
RD508
|
110/132/160
|
6-15
|
2.2
|
7.5
|
508
|
|
RD558
|
160/185
|
10-20
|
2.2
|
11
|
558
|
|
RD678
|
185/220
|
15-20
|
3
|
15
|
673
|
|
RD768
|
220/250
|
20-30
|
3
|
18.5
|
763
|
The final parameters may differ from those in the table. For specific parameters, please refer to the quotation we provide you. *The production capacity of the same model of machine will vary depending on the feed formulation raw materials and final particle size requirements. *Rongda provides customized services. If you have any requirements, Rongda can customize the machine for you.
Project case
For more than ten years, the company has installed several production lines for domestic and foreign customers, with customers in more than 30 countries around the world. The company has been studying the capacity upgrade of granulation equipment. Currently, the granulator developed in the feed industry can achieve a single machine output of 30-40 tons per hour, and in the biomass industry, a single machine can achieve an output of 5-6 tons per hour.
About us
The company has a development history of nearly 20 years and a total area of 25,000 square meters. It is a manufacturing
enterprise specializing in granulation machinery.The company has passed CE certification, GOST certification and ISO9001 quality system certification, and has more than a dozen patents. It is a high-tech enterprise with high-quality products.
If you are interested in our equipment and want to enter the pellet production industry, then build your own pellet factory.
Contact us, tell us your raw materials, your expectations for output, and we can customize a suitable pellet production plan for you.Of course, you are also welcome to visit our company.
enterprise specializing in granulation machinery.The company has passed CE certification, GOST certification and ISO9001 quality system certification, and has more than a dozen patents. It is a high-tech enterprise with high-quality products.
If you are interested in our equipment and want to enter the pellet production industry, then build your own pellet factory.
Contact us, tell us your raw materials, your expectations for output, and we can customize a suitable pellet production plan for you.Of course, you are also welcome to visit our company.
The company has multiple high-precision automated processing machine tools, a highly skilled machining team and production personnel, and full-time quality inspection personnel.The company has passed CE certification, GOST certification and ISO9001 quality system certification, and has more than a dozen patents
1. Q: Are you a trading company or a manufacturer?
A: We are a manufacturer, which has almost 20 years of experience in this industry.
2. Q: How can I get to your company?
A: You can get a flight to Nanjing Lukou Airport. We are just about 40-50mins away from Nanjing Airport.
You may also come to our city,Liyang city by High speed Railway,just 20-30mins.
3. Q: How long is your guarantee?
A: One year(Calculated from the equipment arrives the customer’s side.). After this period we will definitely support you when needed. You will be welcome to contact us with any problem may happened.
4. Q: Will you send engineers to install the plant?
A: yes, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send one supervising engineer.
5. Q: Do you have some foreign customers using your equipment?
A: yes, we have.our company has established business relationships with customers in Russia,German,Slovakia,Ukraine,
Vietnam,Pakistan, the Philippines, Indonesia, Thailand, Pakistan, Egypt ,Iraq,Jordan,Saudi Arabia,Syria, Libya etc.
A: We are a manufacturer, which has almost 20 years of experience in this industry.
2. Q: How can I get to your company?
A: You can get a flight to Nanjing Lukou Airport. We are just about 40-50mins away from Nanjing Airport.
You may also come to our city,Liyang city by High speed Railway,just 20-30mins.
3. Q: How long is your guarantee?
A: One year(Calculated from the equipment arrives the customer’s side.). After this period we will definitely support you when needed. You will be welcome to contact us with any problem may happened.
4. Q: Will you send engineers to install the plant?
A: yes, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send one supervising engineer.
5. Q: Do you have some foreign customers using your equipment?
A: yes, we have.our company has established business relationships with customers in Russia,German,Slovakia,Ukraine,
Vietnam,Pakistan, the Philippines, Indonesia, Thailand, Pakistan, Egypt ,Iraq,Jordan,Saudi Arabia,Syria, Libya etc.
