RF Modulator
-
Application:
-
Digital TV Head-end System
-
Input:
-
IP/ASI Input
-
Output:
-
RF:DVB-T/DVB-C/ATSC/ISDBT
-
Support:
-
TS Re-multiplexing
-
Power:
-
AC 100V-220V
-
Streaming Protocol:
-
UDP/RTP
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Tuoying
-
Model Number:
-
ND0316
-
Product name:
-
RF Modulator
-
Application:
-
Digital TV Head-end System
-
Input:
-
IP/ASI Input
-
Output:
-
RF:DVB-T/DVB-C/ATSC/ISDBT
-
Support:
-
TS Re-multiplexing
-
Power:
-
AC 100V-220V
-
Streaming Protocol:
-
UDP/RTP
The IN0316 is an IP/asi input DVB-T/DVB-C/ATSC/ISDBT RF output modulator. It has 3X 128 IP+6 ASI inputs. After multiplexing and modulation processing, it outputs 16 non-adjacent carriers (50MHz~960MHz) through the RF output interface. To meet the various needs of customers, the unit is also equipped with data ports to output 16 MPTS via UDP and RTP, which is ideal for the new generation of digital TV broadcasting systems.
|
Number
|

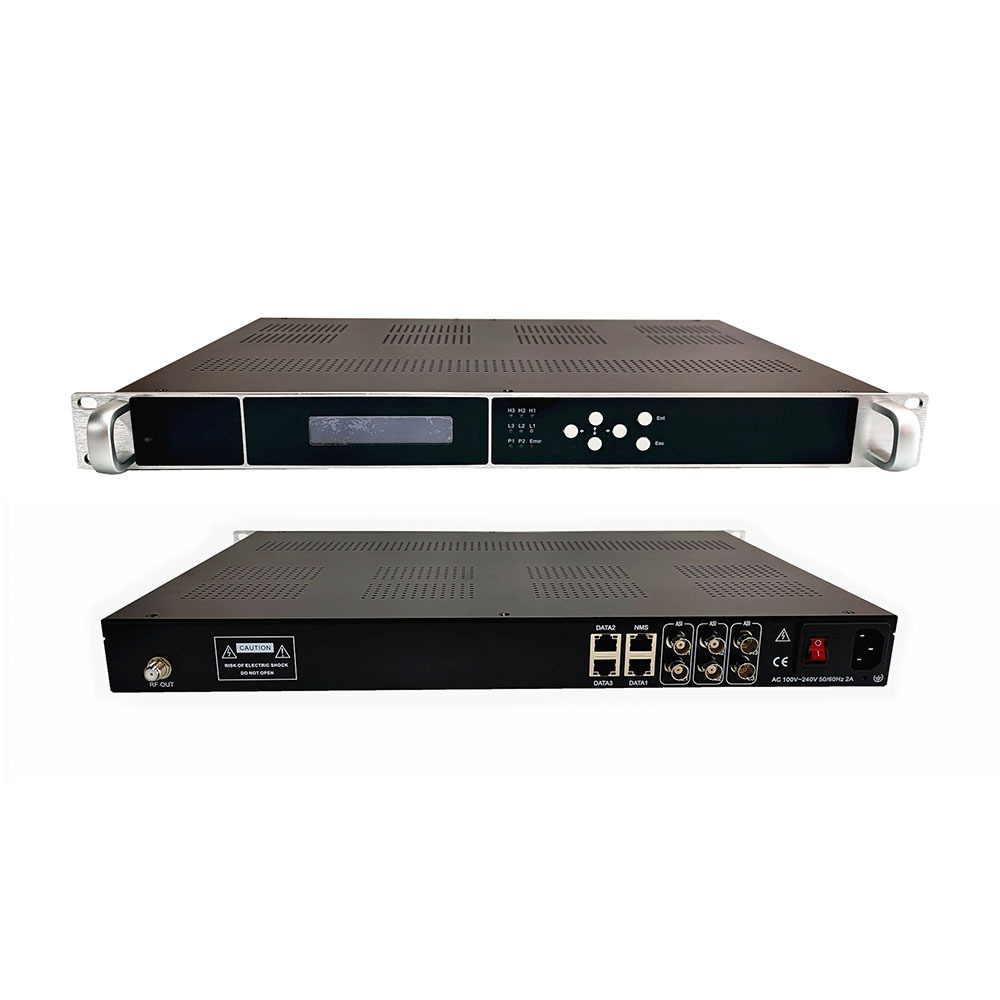

Interface Overview
|
|
|
|
|
1
|
RF out: Frequency Output
|
|
|
|
|
2
|
ASI IN: Serial TS Input (Any Multiplex)
|
|
|
|
|
3
|
NMS: Network Management System
|
|
|
|
|
4
|
DATA1: 128 SPTS/MPTS IP input /16 MPTS output
DATA2: 128 SPTS/MPTS IP input DATA3: 128 SPTS/MPTS IP input |
|
|
|
|
5
|
Power Switch
|
|
|
|
Specification
Supports up to 3*128 IP inputs (MPTS/SPTS) via UDP and RTP protocols
RF 96~864MHz arbitrary setting
Supports 6 serial TS inputs (arbitrary multiplexing)
Integrated multiplexing and modulation function
Supports accurate PCR tuning/PID remapping/PSI/SI reconstruction and editing.
Web-based NMS management
|
Modulation
(DVB-C)
|
Standard
|
ARIB STD-B31
|
|
|
|
|
FFT mode
|
|
|
|
|
|
Bandwidth
|
6M,7M,8M
|
|
|
|
|
Constellation
|
16QAM---265QAM
|
|
|
|
|
RF out
|
32 Channels DVBC，
|
|
|
|
|
RF frequency
|
96~864MHz，1kHz step
|
|
|
|
|
RF output level
|
-35dBm~-10dBm
|
|
|
|
|
MER
|
≥40db
|
|
|
|
|
Guard Interval
|
1/32, 1/16, 1/8, 1/4
|
|
|
|
|
|
|
|
|
|
Modulation
(DVB-T)
|
Standard
|
EN300744
|
|
|
FFT mode
|
2K,4K,8K
|
|
|
Bandwidth
|
6M, 7M, 8M
|
|
|
Constellation
|
QPSK, 16QAM, 64QAM
|
|
|
RF out
|
16 Channels DVBT，
|
|
|
RF frequency
|
96~864MHz，1kHz step
|
|
|
RF output level
|
-35dBm~-5dBm
|
|
|
MER
|
≥40db
|
|
|
Guard Interval
|
1/32, 1/16, 1/8, 1/4
|
|
|
FEC
|
1/2, 2/3, 3/4, 5/6, 7/8
|
|
Modulation
(ATSC)
|
Standard
|
ATSC A/53
|
|
|
|
|
Interface
|
F typed output port for 16 non-adjacent carriers
|
|
|
|
|
Bandwidth
|
6M
|
|
|
|
|
Constellation
|
8VSB
|
|
|
|
|
RF out
|
16 Channels ATSC，
|
|
|
|
|
RF frequency
|
96~864MHz，1kHz step
|
|
|
|
|
RF output level
|
-35dBm~-5dBm (for all carriers)
|
|
|
|
|
MER
|
≥40db
|
|
|
|
|
ACL
|
-55 dBc
|
|
|
|
|
FEC
|
RS(208 188)+Trellis
|
|
|
|
Modulation
|
Standard
|
ARIB STD-B31
|
|
|
|
|
|
FFT mode
|
2K,4K,8K
|
|
|
|
|
|
Bandwidth
|
6M
|
|
|
|
|
|
Constellation
|
QPSK, 16QAM, 64QAM
|
|
|
|
|
|
RF out
|
16 Channels ISDB，
|
|
|
|
|
|
RF frequency
|
96~864MHz，1kHz step
|
|
|
|
|
|
RF output level
|
-35dBm~-5dBm
|
|
|
|
|
|
MER
|
≥40db
|
|
|
|
|
|
Guard Interval
|
1/32, 1/16, 1/8, 1/4
|
|
|
|
|
|
|
|
|
|
|
|
IP Input
|
3ch 128 IP(SPTS/MPTS) input over UDP and RTP, RJ45,1000M/100M, Unicast/Multicast, 6ch ASI input.
|
|
|
|
|
|
System
|
LCD/Keyboard operating and web-based NMS support
|
|
|
|
|
|
|
Ethernet software upgrading
|
|
|
|
|
|
General
|
Dimension (W*D*H)
|
440mm×300mm×45mm (Box)
482mm×340mm×45mm (Max) 525mm×375mm×85mm (Pack) |
|
|
|
|
|
Temperature
|
0~40℃(work)；-20~80℃(storage)
|
|
|
|
|
|
Power supply
|
AC 110V±10%，50/60Hz
AC 220V±10%，50/60Hz |
|
|
|
