Quick Details
-
Material:
-
cold rolled steel plate, Cold Rolled Steel Plate
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HVPAL
-
Model Number:
-
HA7613
-
Usage:
-
cabinet;truck bodies;camper car
-
Name:
-
227kg Load Rating With Locking Function Full Extension Drawer Rail
-
Feature:
-
3 Fold+Full Extension
-
Finish:
-
Clear Zinc Electroplate
-
Loading capacity:
-
227KG/450MM(18'')
-
Length:
-
10''-60''(254mm-1524mm)
-
Width:
-
76mm
-
Thickness:
-
2.5mm*2.5mm*2.5mm
Quick Details
-
Application:
-
Home Office, Dining, Outdoor, Office Building, Sports Venues, Supermarket, Warehouse, Storage & Closet, Garage & Shed, Villa
-
Design Style:
-
Modern
-
Type:
-
drawer slide
-
Material:
-
cold rolled steel plate, Cold Rolled Steel Plate
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HVPAL
-
Model Number:
-
HA7613
-
Usage:
-
cabinet;truck bodies;camper car
-
Name:
-
227kg Load Rating With Locking Function Full Extension Drawer Rail
-
Feature:
-
3 Fold+Full Extension
-
Finish:
-
Clear Zinc Electroplate
-
Loading capacity:
-
227KG/450MM(18'')
-
Length:
-
10''-60''(254mm-1524mm)
-
Width:
-
76mm
-
Thickness:
-
2.5mm*2.5mm*2.5mm
Specification
|
ITEM
|
VALUE
|
|
Product Name
|
227kg Load Rating With Locking Function Full Extension Drawer Rail
|
|
Length
|
10''-60''(254-1524mm)
|
|
Side space
|
19.1+/-0.8mm
|
|
Thickness
|
2.5*2.5*2.5mm
|
|
Load capacity
|
500lbs/pair 450MM(18'')
|
|
Finish
|
Clear Zinc Electroplate
|
|
Material
|
Cold Rolled Steel Plate
|
|
Packing
|
2 set/carton
|
Product Description
Hvpal 76MM full extension heavy duty slide is mainly used for heavy duty storage drawers,truck bodies and large pantry pull-outs etc.The rail can not be separated.We have two different types of this model,and here goes the type with lock function HA7613.

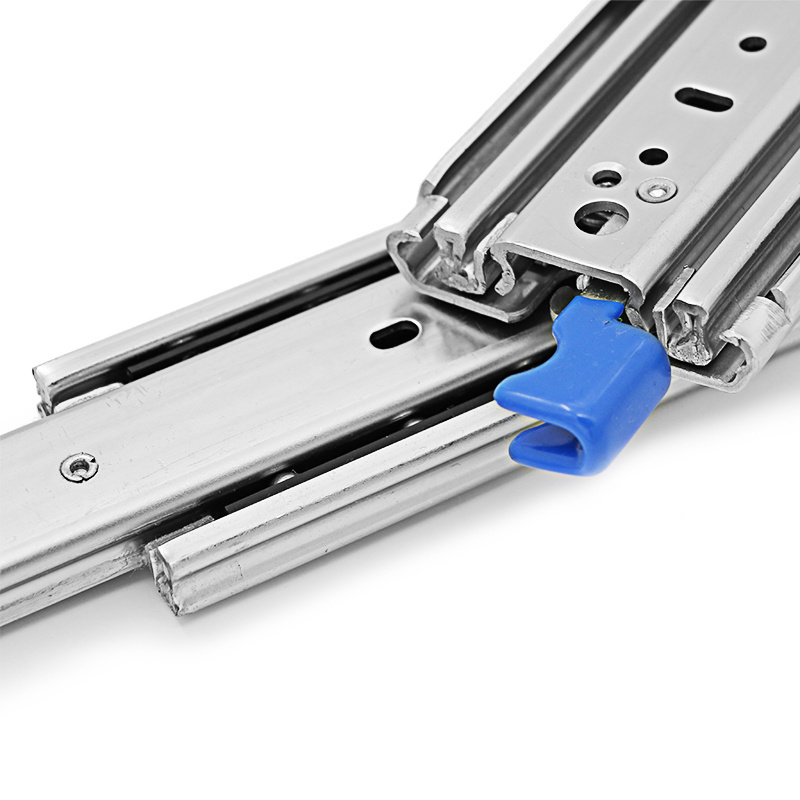

BUCKLE DESIGN
Buckle design plays the role of fixing when drawer is totally in/out.
SELECTED STEEL BALLS
Selected steel balls make it more smoothly and sliencely when sliding.
THIN THICKNESS
Thickness to 2.5MM every fold makes control of the side space when mounting available.
BLUE SEALED
Blue sealed makes our product anti-rust and wear-resisting, and the product will be more durable.
DAMPING BUFFER
Damping buffer makes it slowly closed to achieve the mute effect.
FIXED CARD SLOT
The fixed card slot can avoid the lock automatically to open or close.
Application Scenario
This 115kg load capacity heavy duty drawer slide can be used in heavy load storage drawers, server cabinet and ATM, truck beds,camping van,canopy set ups and large pantry pull outs. The drawers will stay fixed with the locking system. Anywhere you want to use locking function can perfectly fit this kind of lock in lock out over travel heavy duty drawer rails.
Popular sale
Besides the product above,we have more selections below,and you can choose different types of product based on your demands.
HA7613 HA7603 HA5303M HA4503
HA7613: 227kg capacity ;lock function;and lock-in/lock-out actuated with latch in the front of the slide.
HA7603:227kg load capacity;no lock function,;mainly used for big storage drawers,truck bodies,and large pantry pull-outs etc .
HA5303M: 115kg load capacity ;used for furniture,industrial drawer,toolbox ark etc.
HA4503: 45kg load capacity; used for furniture,ambry industrial drawer,toolbox ark etc.
About Us
Shanghai Hvpal Hardware Products Co.,Ltd is a professional hardware manufacturer, engaged in research, production and sales. We supply a series of hardware accessories, including sliding rails, locks, hinges, which are widely used in industry,
automotive,mechanical, furniture etc.
We have advanced production equipment, professional technical personnel, skilled operators and high-quality service team. Our company spirit, integrity, pragmatism and innovation, makes us stand out above the crowd.
We are striving to build up a better enterprise image and become market leader. We are willing to work with people from all walks of life to achieve sustainable management. We are going ahead to offer best products and services to all partners.
We offer OEM service for non-standard parts. Any info.,pls visit www.hvpal.com.
automotive,mechanical, furniture etc.
We have advanced production equipment, professional technical personnel, skilled operators and high-quality service team. Our company spirit, integrity, pragmatism and innovation, makes us stand out above the crowd.
We are striving to build up a better enterprise image and become market leader. We are willing to work with people from all walks of life to achieve sustainable management. We are going ahead to offer best products and services to all partners.
We offer OEM service for non-standard parts. Any info.,pls visit www.hvpal.com.
OFFICE, EXHIBITIONS AND PARTNERS HOME AND ABROAD
Our Cooperative Clients and Honors
Packaging & Shipping
1. Inner packing: PE Bag
2. Outer packing: Carton (4 sets/Ctn)
3. Package can be customized as client requirements.
4. Delivery Details :Within 2 weeks after the contract confirmed.
we usually pack 4 pairs of drawer slide in one carton, each pair will be separately in plastic bags, and finally, we use a big tray to wrap all their goods. It will make loading and unloading easier with this big wood tray.Each tray is around 1m*1.2m*1m, CBM is 1.2m³, weigh 1T.
2. Outer packing: Carton (4 sets/Ctn)
3. Package can be customized as client requirements.
4. Delivery Details :Within 2 weeks after the contract confirmed.
we usually pack 4 pairs of drawer slide in one carton, each pair will be separately in plastic bags, and finally, we use a big tray to wrap all their goods. It will make loading and unloading easier with this big wood tray.Each tray is around 1m*1.2m*1m, CBM is 1.2m³, weigh 1T.
