- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
MINLE
-
Motor Power:
-
18HP
-
Charging Capacity:
-
350L
-
Reclaiming capacity:
-
350L
-
Speed of Mixing Drum:
-
14r/min
-
Water Supply Mode:
-
Water Pump
-
Outline Dimension:
-
2800mm*2100mm*2100mm
-
Marketing Type:
-
Hot Product 2022
-
Weight (KG):
-
1600 kg
Quick Details
-
Mixing Power:
-
Other
-
Productivity:
-
14M³/H
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MINLE
-
Motor Power:
-
18HP
-
Charging Capacity:
-
350L
-
Reclaiming capacity:
-
350L
-
Speed of Mixing Drum:
-
14r/min
-
Water Supply Mode:
-
Water Pump
-
Outline Dimension:
-
2800mm*2100mm*2100mm
-
Marketing Type:
-
Hot Product 2022
-
Weight (KG):
-
1600 kg
Product Description
Details Images
|
Model
|
ML350-DH
|
ML500-DH
|
ML750-DH
|
|
|
Charging capacity (L)
|
560
|
760
|
1200
|
|
|
Discharging capacity (L)
|
400
|
500
|
750
|
|
|
Production capacity (m3/h)
|
10-14
|
16-18
|
25-30
|
|
|
Max aggregate diameter
|
60mm
|
60mm
|
60mm
|
|
|
Lifting model
|
Hydraulic
|
Hydraulic
|
Hydraulic
|
|
|
Water pump
|
Hydraulic motor supplying
|
Hydraulic motor supplying
|
Hydraulic motor supplying
|
|
|
Drum drive mode
|
Gear
|
Gear
|
Gear
|
|
|
Speed of drum (r/min)
|
14
|
14
|
12
|
|
|
Diesel power
|
18hp
|
18hp
|
22hp
|
|
|
Drum thickness
|
6mm Manganese steel
|
8mm Manganese steel
|
8mm Manganese steel
|
|
|
Drum volume （L）
|
2210
|
2510
|
/
|
|
|
Starting Mode
|
Electric
|
Electric
|
Electric
|
|
|
Max tow speed (km/h)
|
10-15
|
10-15
|
10-15
|
|
|
Tire size
|
6.50-16
|
7.50-16
|
7.50-16
|
|
|
Mixer Size (mm)
|
2800*2100*2100
|
3100*2200*2100
|
3800*2150*2500
|
|
|
Weight （kg）
|
1600
|
1800
|
2200
|
|

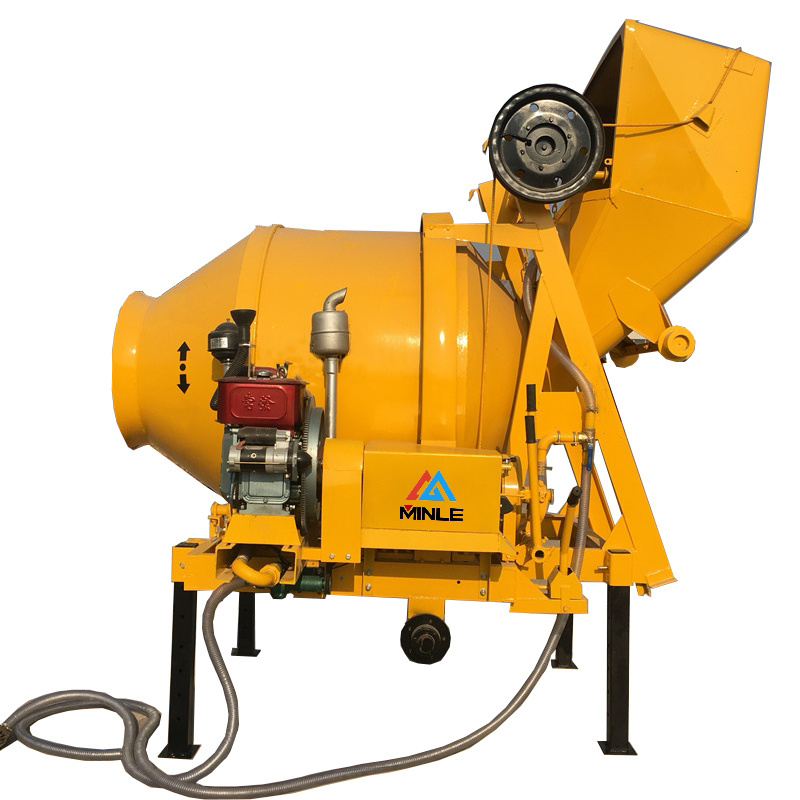

Mobile Portable Cement Concrete Mixer can turn over 360 degree at both sides when it works. The drum revolves for mixing and reverses for discharging. Power source: diesel and electrical
engine Features:
1. The mobile mobile cement concrete mixer adds a water pump between the engine water tank and the mixer for water circulation radiator to keep the engine water temperature stable.
2. Move the suction point away from back to front to avoid sucking in dust. Extending the time will improve the service life of the engine.
2. Move the suction point away from back to front to avoid sucking in dust. Extending the time will improve the service life of the engine.
3. It has the advantages of compact structure, high reliability, uniform mixing, large capacity, convenient operation,convenient movement, etc.
It can mix the plastic and half-dry hard concrete. It is applicable to the common construction workingsite,road,bridge and each kind of precast product factory.
