Quick Details
-
Resolution:
-
1920X1080P
-
Interface type:
-
Three rows of 15 pins
-
Audio interface:
-
3.5MM stereo
-
Optical port type:
-
FC interface
Quick Details
-
Place of Origin:
-
Shanghai, China
-

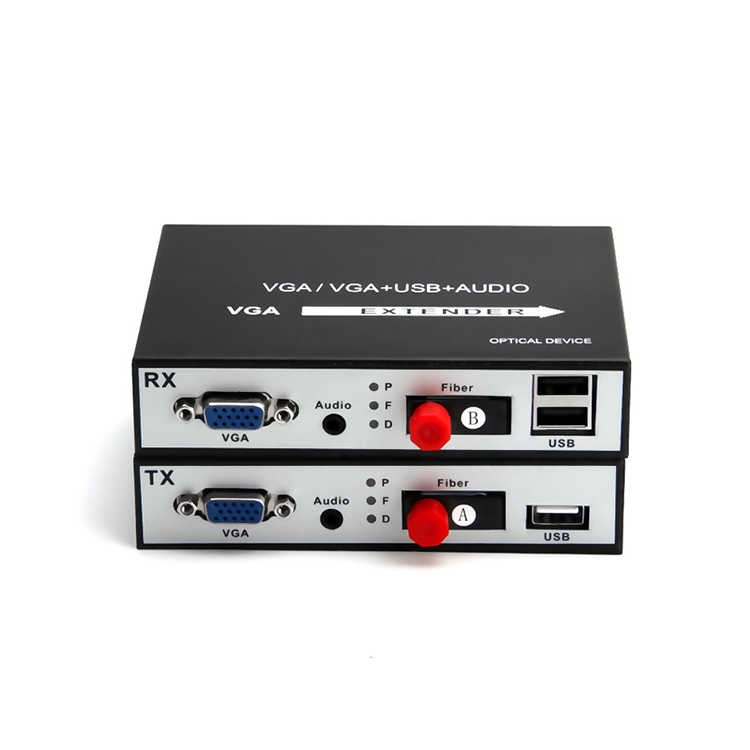

Product Name:
-
VGA Fiber Optic Extender
-
Product mode:
-
VGA + 1Channel stereo +USB
-
Resolution:
-
1920X1080P
-
Interface type:
-
Three rows of 15 pins
-
Audio interface:
-
3.5MM stereo
-
Optical port type:
-
FC interface
Specifications:
1.Support 1920×1080@60Hz;
2.Support highest resolution of video up to 1080P;
3.1 channel VGA video/audio over one fiber optic.
4.1 channel standard 3.5mm stereo audio equidirectional transmission
5.Optical interface: FC
6.Working wavelength: singlemode 1310/1550μm (9/125μm)
7.Transmission distance:singlemode 0~20Km, multimode 0~500m
8.Long-distance transmission of industrial monitoring and large venues, etc.
9.Plug and play at any time, basically no need to be adjusted and could be up to image output of high-quality
10.Power and indicators of other parameter could monitor system status
11.Synchronous optic
12.Automatic identification of input video format, receiver output meets industry-standard video
13.Power supply: AC100~240V, DC5V/2A.(US/EU/UK/AU plug optional)
| Product Name | VGA Fiber Optical Converter |
| Resolution | 1920X1080P |
| Optical port type | FC interface |
| Application |
1.Remote monitoring, traffic management
2.Broadcast Studio Camera Feeds 3.Long-haul Signal Transport 4.TV station/video conference 5.Lecture Hall Projector Connectivity 6.Medical/Surgical Room Broadcast 7.Small corporate campus video links 8.Building to Building video conference calling |
