Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SENYAN
-
Copper Thickness:
-
0.5oz-4oz
-
Min. Hole Size:
-
0.2mm
-
Min. Line Width:
-
0.1mm
-
Min. Line Spacing:
-
0.1mm
-
Surface Finishing:
-
HASL/HASL-LF/ENIG/OSP, OSP
-
Board Size:
-
Optional size
-
Application:
-

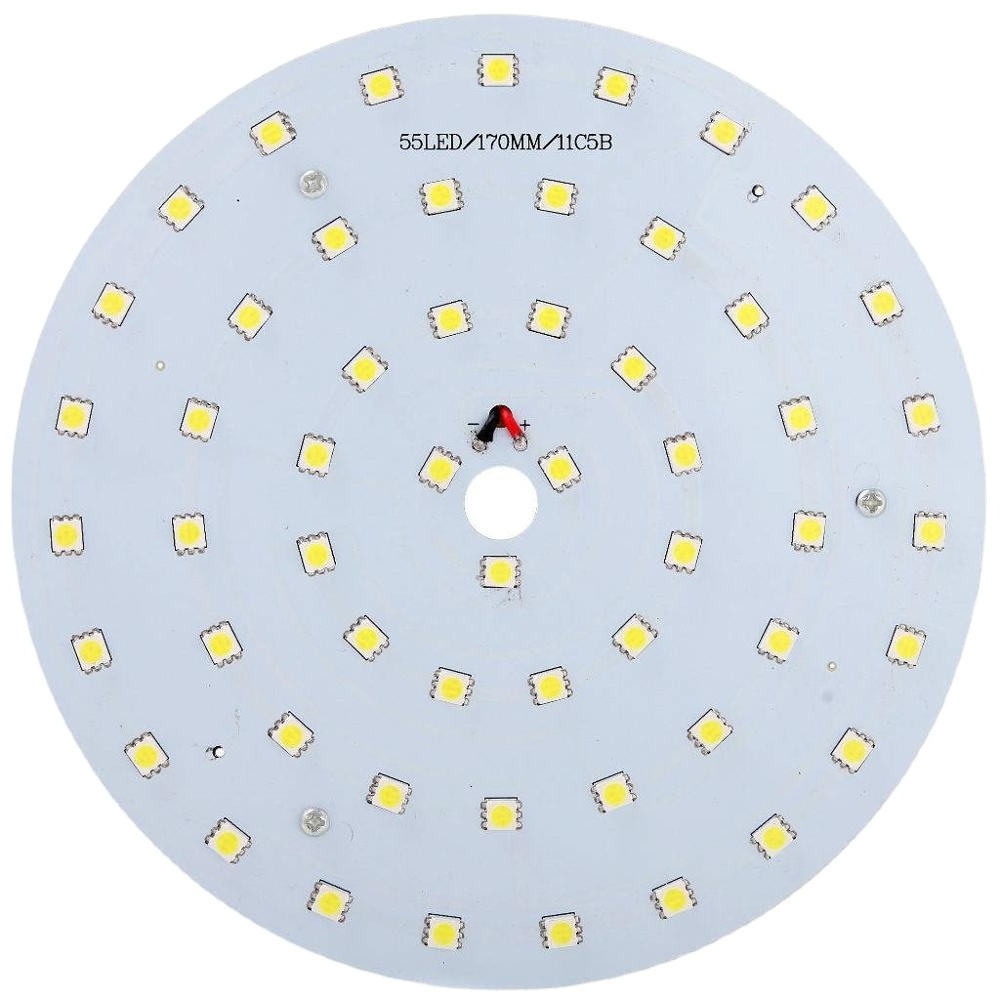

Led Lamp
-
Certificate:
-
ISO9001/ISO14001/ROHS
-
Product name:
-
Printed Circuit Board
-
Usage:
-
OEM Electronics
-
Type:
-
Customizable
-
Service:
-
OEM Services Provided
-
MOQ:
-
1pcs
-
Color:
-
Red Blue Green Black White
-
Testing Service:
-
100% AOI Testing
Quick Details
-
Base Material:
-
FR-4, CEM-1, 94v0,Aluminum
-
Board Thickness:
-
0.2mm-3mm
-
Model Number:
-
SY PCB19100905
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SENYAN
-
Copper Thickness:
-
0.5oz-4oz
-
Min. Hole Size:
-
0.2mm
-
Min. Line Width:
-
0.1mm
-
Min. Line Spacing:
-
0.1mm
-
Surface Finishing:
-
HASL/HASL-LF/ENIG/OSP, OSP
-
Board Size:
-
Optional size
-
Application:
-
Led Lamp
-
Certificate:
-
ISO9001/ISO14001/ROHS
-
Product name:
-
Printed Circuit Board
-
Usage:
-
OEM Electronics
-
Type:
-
Customizable
-
Service:
-
OEM Services Provided
-
MOQ:
-
1pcs
-
Color:
-
Red Blue Green Black White
-
Testing Service:
-
100% AOI Testing
Specification
|
Layer
|
1-20 layer
|
|
Material Type
|
FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers
|
|
Board Thickness
|
0.21mm to 7.0mm
|
|
Copper Thickness
|
0.5 OZ to 6 oz
|
|
Size（Custom）
|
Max. Board Size: 580mm×1100mm
|
|
|
Min. Drilled Hole Size: 0.2 mm (8 mil)
|
|
|
Min. Line Width: 4mil (0.1mm)
|
|
|
Min. Line Spacing: 4mil (0.1mm)
|
|
Surface Finishing
|
HASL / HASL lead free, HAL, Chemical tin,
|
|
|
Immersion Silver / Gold, OSP, Gold plating
|
|
Solder Mask Color
|
Green / Yellow / Black / White / Red / Blue
|
|
Tolerance
|
Shape tolerance: ±0.13
|
|
|
Hole tolerance: PTH: ±0.076 NPTH: ±0.05
|
|
Certificate
|
International Certification Standards
|
|
Special Requirements
|
Buried and blind vias+controlled impedance +BGA
|
|
Profiling
|
Punching, Routing, V-CUT, Beveling
|
