Quick Details
-
Internal Dimensions(l x W x H)(mm):
-
26 CBM
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
ACE
-
Product Name:
-
iso tank container
-
Frame Material:
-
Corten steel
-
Tank Material:
-
316L/SAN50028-7/WNr 1.4402/1.4404
-
Insulation:
-
Rockwood
-
Design Temperature:
-
-40 to +130 centigrade
-
Approval:
-
IMDG, CFR49, ADR/RID, AAR 600, CSC, TC, TIR, ISO UIC, US/UK DOT
-
Certificate:
-
BV or GL CSC
-
Pressure(Working/Test):
-
4.0/6.0Mpa
-
Stacking:
-
Each container is approved for 9 high stacking.
Quick Details
-
Type:
-
Tank Container
-
Capacity:
-
26000 Liters
-
External Dimensions(l x W x H)(mm):
-
6058 x 2438 x 2591 mm
-
Internal Dimensions(l x W x H)(mm):
-
26 CBM
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
ACE
-
Product Name:
-
iso tank container
-
Frame Material:
-
Corten steel
-
Tank Material:
-
316L/SAN50028-7/WNr 1.4402/1.4404
-
Insulation:
-
Rockwood
-
Design Temperature:
-
-40 to +130 centigrade
-
Approval:
-
IMDG, CFR49, ADR/RID, AAR 600, CSC, TC, TIR, ISO UIC, US/UK DOT
-
Certificate:
-
BV or GL CSC
-
Pressure(Working/Test):
-
4.0/6.0Mpa
-
Stacking:
-
Each container is approved for 9 high stacking.
Low Cost
Convenient and fast
Safety and Eco-Friendly
|

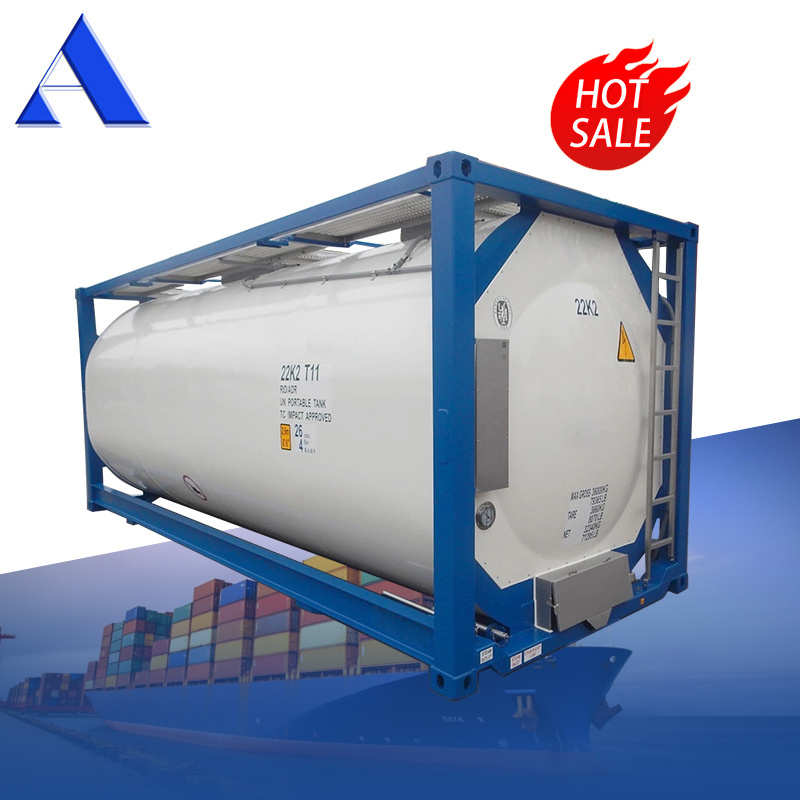

20ft ISO Tank Container
|
|
|
||
|
Frame Dimensions (L x W x H)
|
|
6058 x 2438 x 2591 mm
|
||
|
Nominal Capacity
|
|
20000-25000 litre (±0.75%)
|
||
|
Maximum Gross Mass
|
|
36000 kgs
|
||
|
Tare Mass
|
|
3550 kg (± 3%)
|
||
|
Design Temperature (Frame & Tank)
|
|
-40 to +130 °C
|
||
|
Pressure
|
Working
|
4.0 bar
|
||
|
|
Test
|
6.0 bar
|
||
|
Material
|
Tank (Shell & Ends)
|
316L/SAN50028-7/WNr 1.4402/1.4404
|
||
|
|
Frame
|
SPA-H or equivalent
|
||
|
Steam Heating
|
6 runs, 110mm width stainless steel 304
|
|
||
|
Manhole
|
500 low TIR provision, 8 point fixing with super tanktyt Lid seal
|
|
||
|
Safety Relief
|
2½” BSP Supermaxi Highflow relive, without gauze, Pressure only set at +4.4 bar (63.8psi).
|
|
||
|
Air Inlet Assembly
|
1.5 BSP air inlet with 1 1/2BSP connection,
|
|
||
|
Bottom Discharge
|
3 stainless steel foot-valve with butterfly valve and blank flange / 3 BSP cap and chain.
|
|
||
|
Top Discharge
|
Provision only
|
|
||
|
Design Code
|
ASME VIII DIV. 1
|
|
||
|
Approval
|
Lloyds or BV Construction Certificate, IMDG, CFR49, ADR/RID, AAR
600, CSC, TC, TIR, ISO UIC, US/UK DOT |
|
||
Q:. Are your cement ISO tank container is brand new?
Yes, our all tank containers are brand new.
Q: Can you provide the drawing for confirmation?
Sure, we'll provide the drawing after order confirmed before production.
Q: Do you have Small or Large Volume cement ISO Tank Container?
Sure, we could do Tank Container form 1000L to 60000L.
And could produce offshore Tank as per DNV2.7-1 / EN12079 Standard.
Q: Do you provide OEM Service?
Yes, we have a first-class team and could design as per your requirement.
Q: Does your iso tank container meet with international requirement?
All of our iso tank container will be approval by BV //LR / CCS and meet with below requirement.
ISO 1496/3
UN Transport of Dangerous Goods
UIC International Rail Approval
TIR International Transport Goods under Custom Seal
CSC International Convention for Safe Containers
DOT US Code Federal Regulations CFR49
DOT UK Carriage of Dangerous Goods
CTC Canadian Transport Commission (Rail)\
AAR American Association of Railroads
FRA Federal Rail Association USA
BAM G.D.R Domestic Approval
ISO/TC11
