Quick Details
-
Marketing Type:
-
New Product 2023
-
Product Name:
-
tube disc plough
-
Working Width:
-
600mm
-
Working depth:
-
250-300mm
-
No.of disc:
-
2
-
Dia of disc:
-
660/710mm
-
Linkage:
-
Three Point Mounted
-
Matched power:
-
40-120HP
-
Usage:
-
Soil Ploughing
-
OEM:
-
YES
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Lermda
-
Weight:
-
350 KG, 350 KG
-
Marketing Type:
-
New Product 2023
-
Product Name:
-
tube disc plough
-
Working Width:
-
600mm
-
Working depth:
-
250-300mm
-
No.of disc:
-
2
-
Dia of disc:
-
660/710mm
-
Linkage:
-
Three Point Mounted
-
Matched power:
-
40-120HP
-
Usage:
-
Soil Ploughing
-
OEM:
-
YES

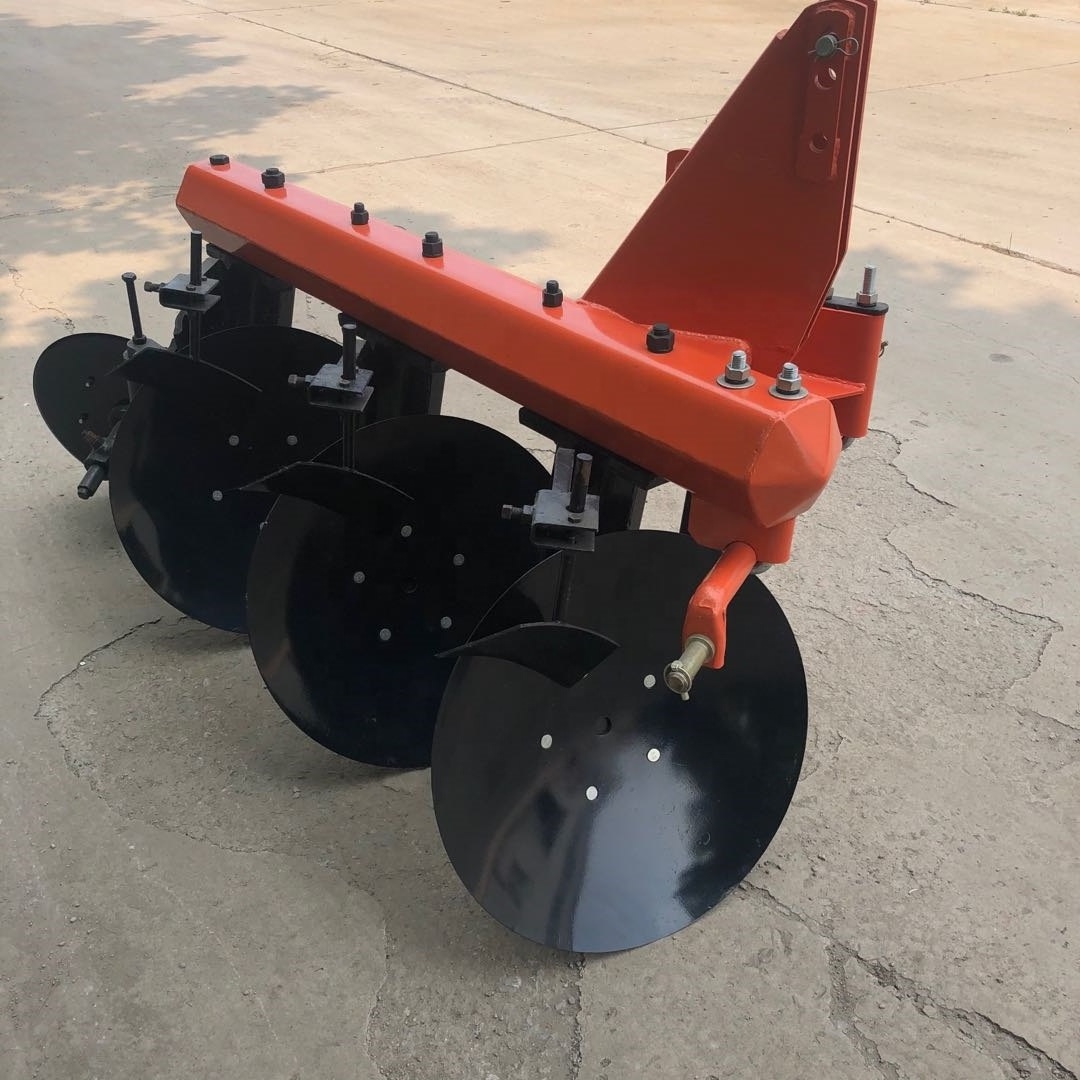

MF Disc Plough
In the field, it is good at cutting grasses and straw, free from stopped by the grasses, soil or stones. etc. It is efficient in the work.
It is of good quality during operation. It is easy to adjust and strong and durable.
Thanks to the use of 8 mm rectangular tubes, and more than 20 years of experience in the production of agricultural tools, our disc plough main frame is rugged and durable
Thanks to the use of 8 mm rectangular tubes, and more than 20 years of experience in the production of agricultural tools, our disc plough main frame is rugged and durable
Thanks to the discs produced by the factory itself, the discs are hard, wear-resistant and not easily damaged by the use of Anshan and Lingyuan steel, the best steel in China
Thanks to our factory status, we can provide all the accessories, which are all produced by ourselves.
Main Feature
1)
The disc plough uses the blades 26"x6mm produced by our own factory and the best steel in China, Anshan and Lingyuan, and the plough blades are of good quality.
2)
The
MF disc plough tube thickness is 8mm, the structure is strong and durable.
3)
The plough legs are specially heat-treated to make them more durable.
----------Product Introduction---------
1.
Suspension arm
The suspension arm is the pressure type produced by our factory, no welding, reasonable structure, easy to use
2. Pipe
The thickness of the pipe is 8mm, which makes the disc plough stronger and more durable.
3.
Disc Blade
Plough blades 26X6M are produced by our factory and each piece is subjected to a separate heat treatment process.
Made of Angang Lingyuan Steel.
Surface spray plastic treatment.
4. Plough Leg
The plough legs are made of special heat treatment and are strong and not easily broken
|
Type
|
1LY-2
|
1LY-3
|
1LY-4
|
1LY-5
|
|||
|
Working width（mm）
|
600
|
900
|
1200
|
1500
|
|||
|
Working depth（mm）
|
250~300
|
|
|
|
|||
|
No. of disc （pc）
|
2
|
3
|
4
|
5
|
|||
|
Dia. Of disc (mm)
|
660/710
|
|
|
|
|||
|
Total weight （kg）
|
350
|
406
|
470
|
560
|
|||
|
Matched power（hp）
|
40
|
60
|
80
|
120
|
|||
|
Linkage
|
Three-point suspension II type
|
|
|
|
|||
---------
Customized Color &ODM/OEM
--------
We absolutely accept ODM/OEM order because we are factory you can require paint color for the machinery.
