Quick Details
-
Brand Name:
-
Longtime
-
Model Number:
-
LT-B071A
-
Surface Treatment:
-
smooth surface
-
Color:
-
Yellow,White
-
Name:
-
fiberglass cable bracket supports, cable tray bracket
-
Other name:
-
frp cable tray,frp cable briage
-
Material:
-
FRP
Quick Details
-
Application:
-
cable tray
-
Technique:
-
pultrusion
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Longtime
-
Model Number:
-
LT-B071A
-
Surface Treatment:
-
smooth surface
-
Color:
-
Yellow,White
-
Name:
-
fiberglass cable bracket supports, cable tray bracket
-
Other name:
-
frp cable tray,frp cable briage
-
Material:
-
FRP

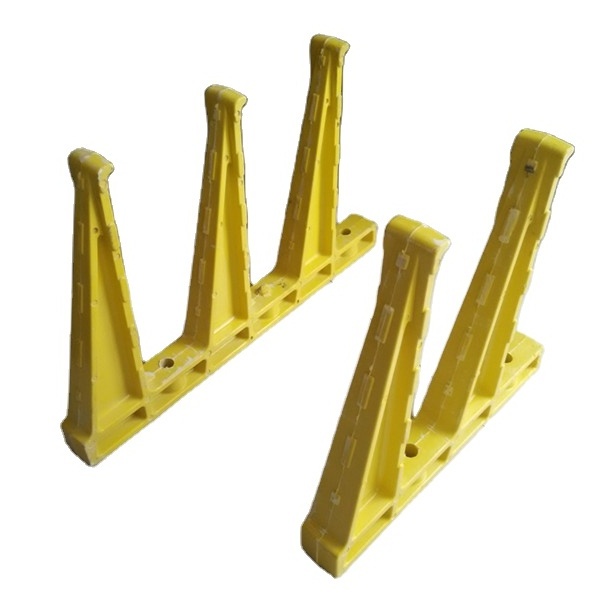

fiberglass cable bracket supports, cable shelf brackets, cable tray bracket
fiberglass cable bracket supports, cable shelf brackets, cable tray bracket introduction
Cable bracket is made of fiberglass and SMC production process.frp cable bracket is a thermoset composite material, which is pressed by the SMC composite materials at high temperatures. frp cable brackets is a brand new innovational product which is ideal for cable wiring projects in tunnels, power stations, etc.
|
Product |
Size |
Length ( mm ) |
Dead Load ( kg ) |
|
Cable bracket |
670*60*30 |
670 |
≥ 50 |
|
880*60*30 |
880 |
||
|
1250*60*30 |
1150 |
||
|
1300*60*30 |
1200 |
||
|
Cable pallet |
130*45 |
130 |
|
|
200*45 |
200 |
||
|
300*45 |
300 |
fiberglass cable bracket supports, cable shelf brackets, cable tray bracket advantage
1.High strength, good design
Glass fiber reinforced thermosetting composites strength can be in the range of 30-1000 mpa. Therefore, we according to the force of the products, production, production technology, ability to set price
2.No creep
Under long-term load not deformation, not tilt.
3.Fireproof
Oxygen index is cable set product evaluation important detection means.Oxygen index refers to the maximum under the condition of oxygen, fire resistant to burn the characteristics of products.
According to the requirement we developed the cable bracket of oxygen index greater than or equal to 70%. In line with the fire low smoke, zero halogen, non-toxic safety requirements.
4.Anti-corrosion
Composite scaffold corrosion resistance, especially suitable for humid, salt fog, acid and weak base environment use.
5.Electrical insulation
(1) Type electric insulation, insulation resistance is greater than 1000 g Ω;
(2) Antistatic type, the surface resistance is less than 10 g Ω
6.Easy to use accurate and firm, construction is convenient
7.Service life: 50 years underground, 20 years overground. Environment, appropriate temperature range: - 50 ℃~130 ℃.
- Professional FRP products manufacturer.
- Customized design is available, OEM and ODM are welcomed.
- High quality, reasonable & competitive price.
- High speed forwarder services.
- Prompt answer on Trademanager and Inquiry,will not delay 24 hours.
Thanks for browsing our products,send your Inquiry Details in the Below, Click " Send " Now! Contact with me
.
fiberglass cable bracket supports, cable shelf brackets, cable tray bracket
