With 20 years professional experience , we are the supplier of chain link fence fabric , fence from 3ft-12 ft , three colors(silver,dark green,black) and a variety of wire gauges all in stock .Galvanized and Vinyl coated chain link fence was considered for its ability to difficult application.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Muyuan
-
Model Number:
-
MY-CLF-22315
-
Product name:
-
chain link fence double swing gate
-
Material:
-
Steel
-
Surface treatment:
-
Vinyl coat
-
Color:
-
black green silver
-
Height:
-
0.5m-6m
-
Length:
-
10m-100m
-
Wire diameter:
-
2mm-5mm
-
Mesh Size:
-
20mm 40mm 50mm 60mm 80mm
-
Post:
-
32mm 48mm 60mm 85mm 100mm
-
MOQ:
-
200m
Quick Details
-
Frame Material:
-
Metal
-
Feature:
-
Easily Assembled, Sustainable, ECO FRIENDLY, FSC, Pressure Treated Timbers
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Muyuan
-
Model Number:
-
MY-CLF-22315
-
Product name:
-
chain link fence double swing gate
-
Material:
-
Steel
-
Surface treatment:
-
Vinyl coat
-
Color:
-
black green silver
-
Height:
-
0.5m-6m
-
Length:
-
10m-100m
-
Wire diameter:
-
2mm-5mm
-
Mesh Size:
-
20mm 40mm 50mm 60mm 80mm
-
Post:
-
32mm 48mm 60mm 85mm 100mm
-
MOQ:
-
200m
Product Description
Superior Budget-Friendly Chain Link Fence for All Your Demands
Specification
|
Product
|
Galvanized Vinly Coat Chain Link Fence
|
|
Mesh opening
|
1'' 1.5'' 2'' 2-1/4" 2-3/8'' 2-1/2'' 2-5/8'' 3''
25 40 50 57 60 65 70 75
mm mm mm mm mm mm mm mm
|
|
Wire diameter
|
18 Ga. – 13 Ga. 16 Ga. – 8 Ga. 14 Ga. –6 Ga.
1.2–2.4 mm 1.6–4.2 mm 2.0–5.0 mm
|
|
Width
|
50–100 m (or more)
|
|
Height
|
0.5-6m
|
|
Post
|
32 mm, 42 mm, 48 mm, 60 mm, 76 mm, 89 mm;
thickness: 0.8–5.0 mm
|
|
Primary Material
|
Steel
|
|
Manufacturer Color
|
Galvanized Vinyl Coat
|
|
Color
|
Silver , Black , Green , Brown
|
|
Warranty
|
20- Years Limited
|
|
Notes
|
* All colors are available in Ral;
* Other materials and specifications are available upon request. |
|
Application
|
* Sport chain link fence
*Residential chain link fence
*Commercial chain link fence
*Heavy duty chain link fence
|
|
Application
|
|
Light Duty
|
Medium Duty
|
Heavy Duty
|
|
3’-4’ high
|
Top Rail
|
1-3/8” 17 ga.
|
1-3/8” 16 ga.
|
1-3/8” 15 ga.
|
|
|
Line Posts
|
1-5/8” 17 ga.
|
1-5/8” 16 ga.
|
1-5/8” 15 ga.
|
|
|
Terminal Posts
|
1-7/8” 17 ga.
|
1-7/8” 16 ga.
|
1-7/8” 15 ga.
|
|
5’-6’ high
|
Top Rail
|
1-3/8” 17 ga.
|
1-3/8” 16 ga.
|
1-5/8” 15 ga.
|
|
|
Line Posts
|
1-7/8” 17 ga.
|
1-7/8” 16 ga.
|
1-7/8” 15 ga.
|
|
|
Terminal Posts
|
2-3/8” 17 ga
|
2-3/8” 16 ga.
|
2-3/8” 15 ga.
|
Details
Hot dip galvanized & Vinyl coat chain link fabric mesh
Hot dip galvanized & Vinyl Coat Chain Link Framework
Chain link fence accessories
Gallery

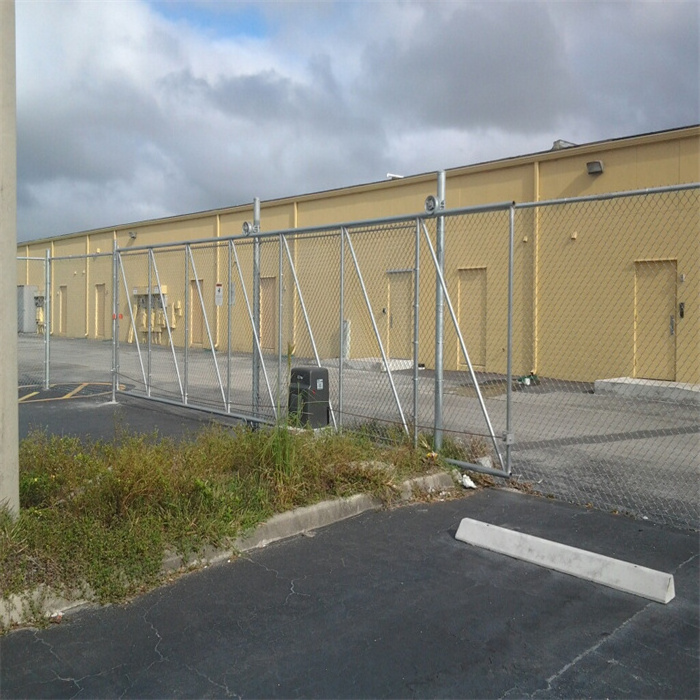

It is widely used for residential and commercial applications to create a secure barrier and provide both visibility and security.
HIGH-SECURITY INDUSTRIAL:Data Centers, Prisons, Airports, Power Plants, etc.
RESIDENTIAL: Back/Frontyard Fencing, Pool Fencing, Prefabricated Dog Kennels, etc.
Product Test
Fence Products Quality Control
√ Choosing the Standard wire mesh fence raw material √ Strict QC system in the production line.
√ Reinforce the welding panel by welding machine
√ R&D department researches the new Products and Designs
√ Standard international packing with steel pallet & plastic film
√ Comply with America ,Australian & international Fence standards.
√ Choosing the Standard wire mesh fence raw material √ Strict QC system in the production line.
√ Reinforce the welding panel by welding machine
√ R&D department researches the new Products and Designs
√ Standard international packing with steel pallet & plastic film
√ Comply with America ,Australian & international Fence standards.
