Quick Details
-
Product Name:
-
single channel HD video and power balun with no ghost image
-
Body Color:
-
Black
-
Housing:
-
ABS engineering plastic
-
Input:
-
No external power required
-
Feature:
-
renewable solid state surge protection
-
Application:
-
Security Camera
-
Warranty:
-
2 Years
-
Color:
-
Black
-
Dimensions:
-
210-29-20mm(BNC connector+pigtail included)
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FOLKSAFE
-
Model Number:
-
FS-HD4301VPA
-
Product Name:
-
single channel HD video and power balun with no ghost image
-
Body Color:
-
Black
-
Housing:
-
ABS engineering plastic
-
Input:
-
No external power required
-
Feature:
-
renewable solid state surge protection
-
Application:
-
Security Camera
-
Warranty:
-
2 Years
-
Color:
-
Black
-
Dimensions:
-
210-29-20mm(BNC connector+pigtail included)
Video Power Transceiver Balun HDTVI Balun BNC UTP RJ45 Power Over CAT5/5E/6 Cable CCTV Balun
Description

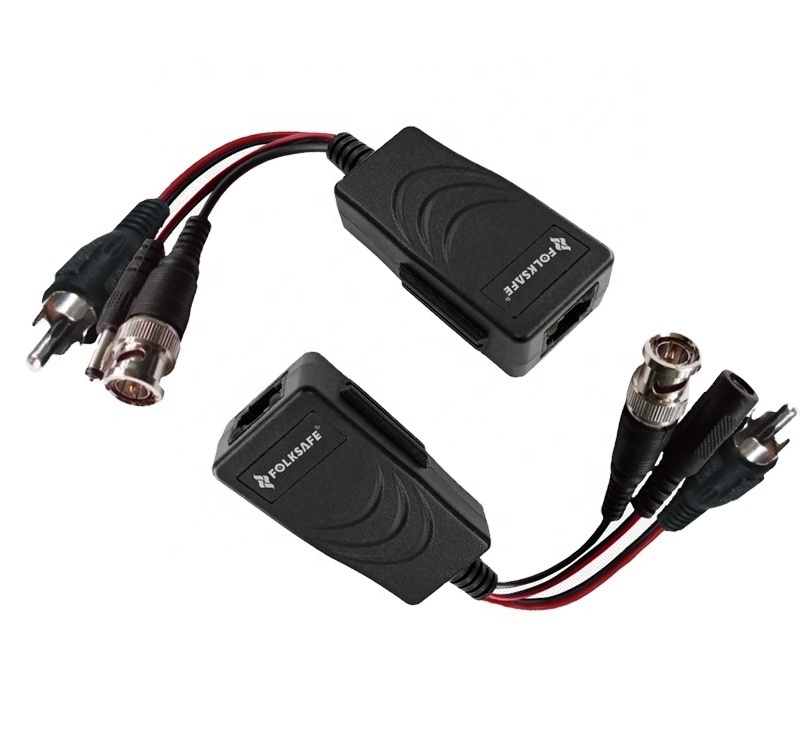

1-CH Passive Video & Power Balun ( transmitter+receiver )
RJ45 Jack for UTP cat5e/6 cable
12V/24V DC/AC are both workable
Transmit power signal up to 656ft(200m) in pairs
Dimensions: 210*29*20mm (L*W*H BNC connector+ pigtail included)
Feature
•Built-in TVS for surge protection
•Wave Filter Design, Anti-Static Design
•Lightning protection design Grade: Ⅲ
•60 dB crosstalk and noise immunity
•Exceptional interference rejection
Overview
The FS-HD4301VP i s video & power transmitter and receiver that allows the transmission of real-time CCTV HD video and power signal via cost-effective u nshielded Twisted Paired (UTP) cable. Baseband (composite) signals of any type are supported.
The FS-HD4301VP is compatible with all HD-TVI, HD-CVI and AHD analog camera. Used in pairs, FS-HD4301VP eliminates costly and bulky coaxial cable.
The superior interference rejection and low emissions of the FS-HD4301VP allow video & power signals to coexist in the same wire bundle as telephone, datacom, or low-voltage power circuits. This allows the use of a shared or existing cable plant. The FS-HD4301VP T and FS-4301VPR is built-in surge suppressor to protect video equipment against damaging
voltage spikes. Its crosstalk and noise immunity ensure quality video signals.
