- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
FULLWELL
-
Use:
-
FTTH, FTTH
-
Warranty Time:
-
2 years
-
No. of Fiber:
-
1.
-
Product name:
-

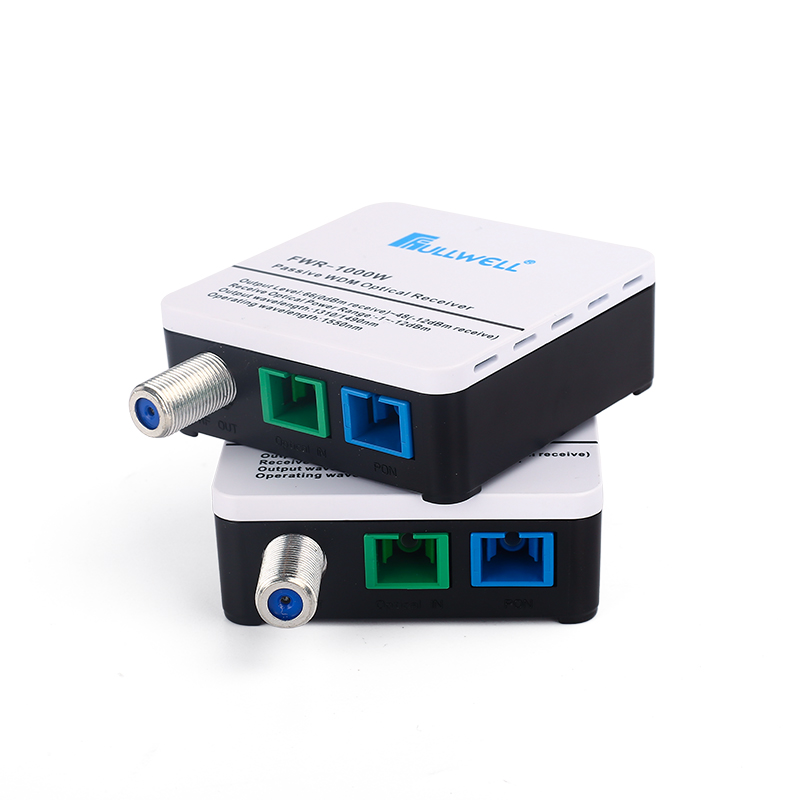

FTTH AGC CATV Optical Receiver
-
output wavelength:
-
1490/1310 nm
-
input wavelength:
-
1310/1550/1490nm
-
dimensions:
-
60*60*20mm
-
optical connector:
-
SC/APC ,SC/UPC
-
Power supply:
-
Outlay AC100~240V or DC12,/5
-
Bandwidth /inequality:
-
47-1000/≤±1 MHz/dB
-
Fiber Type:
-
Optical Fiber
Quick Details
-
Type:
-
Fiber Optic Transceivers
-
Model Number:
-
FWR-1000W(1 RF)
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FULLWELL
-
Use:
-
FTTH, FTTH
-
Warranty Time:
-
2 years
-
No. of Fiber:
-
1.
-
Product name:
-
FTTH AGC CATV Optical Receiver
-
output wavelength:
-
1490/1310 nm
-
input wavelength:
-
1310/1550/1490nm
-
dimensions:
-
60*60*20mm
-
optical connector:
-
SC/APC ,SC/UPC
-
Power supply:
-
Outlay AC100~240V or DC12,/5
-
Bandwidth /inequality:
-
47-1000/≤±1 MHz/dB
-
Fiber Type:
-
Optical Fiber
♦ Only WDM & optical electric exchanging parts, average fault-free time is over 150 thousands hours;
♦ Optial in: SC/APC, Optical out: SC/UPC, output ports have F type metric/inch screw, nut base , F base and RF to choose.
♦Superior low optical power receiving, 1540-1565nm inputting, plug and play,PON insert loss ≤0.8dB
♦ No external power source required, no consumption, safe and energy conservation
♦ Optial in: SC/APC, Optical out: SC/UPC, output ports have F type metric/inch screw, nut base , F base and RF to choose.
♦Superior low optical power receiving, 1540-1565nm inputting, plug and play,PON insert loss ≤0.8dB
♦ No external power source required, no consumption, safe and energy conservation
|
Item
|
|
Unit
|
Performance Parameter
|
|
|
|
input wavelength
|
(nm)
|
131,014,901,550
|
|
|
|
Output wavelength
|
(nm)
|
13,101,490
|
|
|
|
operation wavelength
|
(nm)
|
1540～1565
|
|
|
|
Insertion loss
|
dB
|
≤ 0.8 (IN ≤ PON or CATV)
|
|
|
|
channel separation
|
(dB)
|
≥40（1310/1490nm and 1550nm )
|
|
|
|
response
|
(A/W)
|
≥0.9
|
|
|
|
receive power range
|
(dBm)
|
0～-12(-3~-6 recommended)
|
|
|
|
reflection loss
|
(dB)
|
≥45
|
|
|
|
fiber linker
|
/
|
SC/APC
|
|
|
|
PON linker
|
/
|
SC/UPC(or SC/APC)
|
|
|
|
Bandwidth/flatness
|
MHz/dB
|
47-1000/≤±2
|
|
|
|
output levelb(RFMD)
|
dBuv
|
68(0dbBm) -50(-9 dBm)
|
|
|
|
RF output interface
|
/
|
1 way output Female or RF
|
|
|
|
CNR/MER
|
dB
|
≥44/34(0dBm),≥38/29dBm(-6dBm)
|
|
|
|
CTB/CSO/HUM
|
dB
|
≥70/≥66/≥60(-3dBm/60dBuv)
|
|
|
|
working/storage temperature
|
℃
|
-35～50/-40～75(humidity 5～90%)
|
|
|
|
size
|
mm
|
60×60×20
|
|
Network Application Diagram
