Name: Electronic throttle
Brand: BOSCH
Original: Germany
Control the supply of gas flow
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
YDN-10-1200
-
Rated Voltage:
-
220/440V
-
Rated Current:
-
18-2160A
-
Speed:
-
1000/1500/1800rpm
-
Frequency:
-
50/60HZ
-
Product name:
-

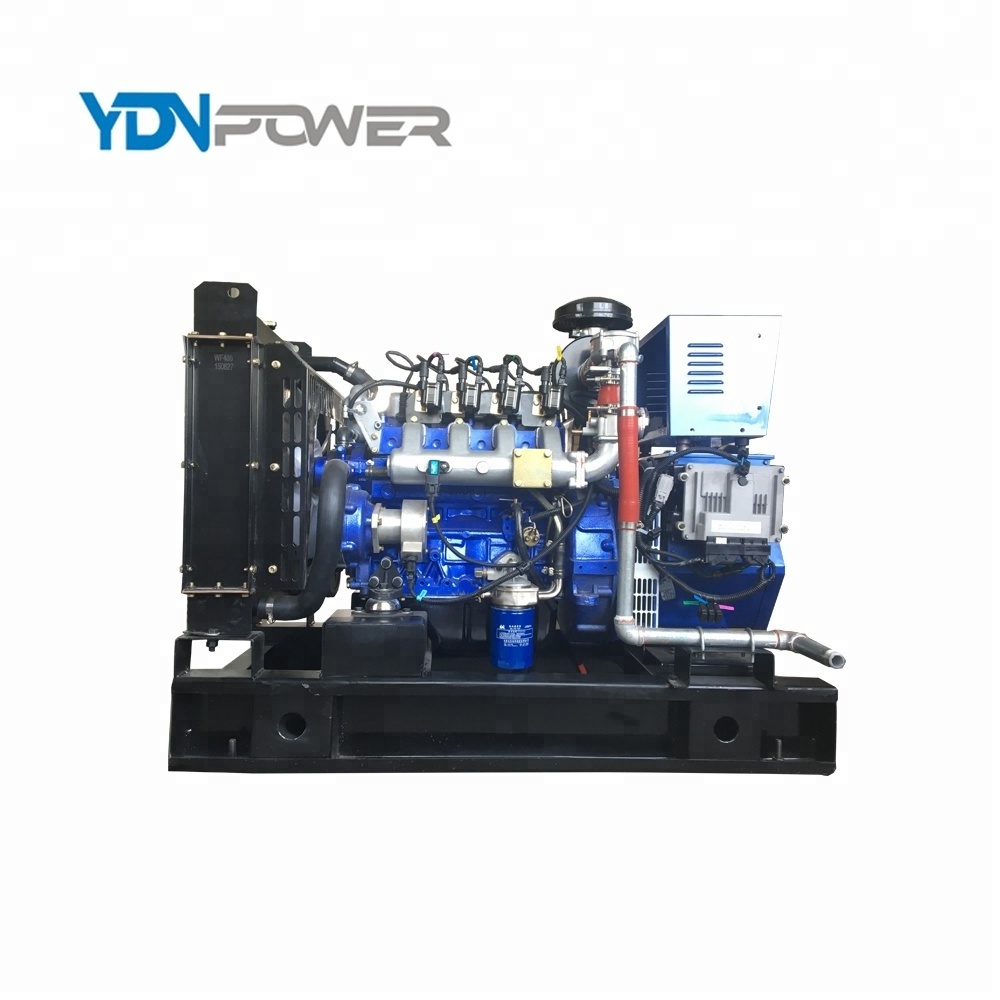

10-1200kw natural gas power generator
-
Fuel:
-
Natutal Gas
-
Certificate:
-
CE ISO SASO
-
Alternator:
-
100% copper wire brushless
-
E-Throttle Brand:
-
BOSCH
-
Gas Mixer Brand:
-
IMPCO
-
Regulator Brand:
-
MADAS
-
Spark Plug Brand:
-
TORCH
-
Water Temperature brand:
-
BOSCH
-
Certification:
-
ce
Quick Details
-
Warranty:
-
1years, One Year Or 8000 Running Hours
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YDN
-
Model Number:
-
YDN-10-1200
-
Rated Voltage:
-
220/440V
-
Rated Current:
-
18-2160A
-
Speed:
-
1000/1500/1800rpm
-
Frequency:
-
50/60HZ
-
Product name:
-
10-1200kw natural gas power generator
-
Fuel:
-
Natutal Gas
-
Certificate:
-
CE ISO SASO
-
Alternator:
-
100% copper wire brushless
-
E-Throttle Brand:
-
BOSCH
-
Gas Mixer Brand:
-
IMPCO
-
Regulator Brand:
-
MADAS
-
Spark Plug Brand:
-
TORCH
-
Water Temperature brand:
-
BOSCH
-
Certification:
-
ce
Product Description
|
Gas Genset #
|
Rated Power(Kw/Kva)
|
Gas Engine #
|
Dimension(mm)
|
Weight(Kg)
|
|
YDNYD-10
|
10/12.5
|
YD4M1D
|
1450*700*1100
|
510
|
|
YDNYD-15
|
15/18.75
|
YD4B1D
|
1700*720*1250
|
620
|
|
YDNYD-20
|
20/25
|
YD4102D
|
1750*740*1250
|
650
|
|
YDNYD-25
|
25/31.25
|
YD4102D
|
1750*740*1250
|
680
|
|
YDNYD-30
|
30/37.5
|
YD4102D
|
1750*740*1250
|
700
|
Lovol 30-100kw Natural gas generator
|
Gas Genset #
|
Rated Power(Kw/Kva)
|
Gas Engine #
|
Dimension(mm)
|
Weight(Kg)
|
|
YDNL-30
|
30/37.5
|
YND1004
|
1850*800*1430
|
950
|
|
YDNL-40
|
40/50
|
YDN1006
|
2150*800*1430
|
1100
|
|
YDNL-50
|
50/62.5
|
YDN1006
|
2150*800*1430
|
1150
|
|
YDNL-60
|
60/75
|
YDN1006ZD
|
2150*800*1430
|
1200
|
|
YDNL-80
|
80/100
|
YDN1006ZD
|
2150*800*1430
|
1250
|
|
YDNL-100
|
100/125
|
YDN1006ZD
|
2200*800*1430
|
1300
|
VMAN 150-500KW Natural gas generator
|
Gas Genset #
|
Rated Power(Kw/Kva)
|
Gas Engine #
|
Dimension(mm)
|
Weight(Kg)
|
|
YDNV-150
|
150/187.5
|
DT11
|
2700*1500*1800
|
2800
|
|
YDNV-200
|
200/250
|
DT15
|
2850*1500*1950
|
3100
|
|
YDNV-300
|
300/375
|
DT22
|
3420*1700*2100
|
3800
|
|
YDNV-400
|
400/500
|
DT30
|
4300*2100*2500
|
4500
|
|
YDNV-500
|
500/625
|
DT30-1
|
4500*2100*2500
|
5000
|
Requirments for natural gas
1.Methane should be at least 85%
2.The natural gas temperature should be between 0-60 ℃3. No inpurity should be in the gas. Water in the gas should be less than 20g/Nm3.
4. Heat value should be at least 8500kcal/m3, if less than this value, the power of the engine will be declined.
5. Gas pressure should be 3-100KPa, if the pressure is less than 3KPa, booster fan is necessary.
6.The gas should be dehydrated and desulfurated. Make sure that there is no liquid in the gas. H2S<200mg/Nm3
Certifications
Detailed Images
Control System
Mixed system
Name:
MIXER
Brand:
IMPCO
Original:
USA
Mix gas and air for combustion
Regulator System
Name:
Regulator
Brand:
MADAS
Original:
Italian
Regulate the pressure of gas supply
Central control system
Name:
ECU
Brand:
YDN
Original: China
Central control system of gas generator, computer of gas generator, ignition control system, speed control system, hybrid system and so on.
Famous Brand Control Module
Brand:Smartgen/DSE/And other famous brand
Real-time monitoring of unit operating conditions
To prevent damage to the unit due to excessive oil temperature and high water temperature
