Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
3RD EYE
-
Model Number:
-
TE910H
-
Style:
-
tube camera, 2.4ghz wireless mini camera DVR
-
Technology:
-
Pinhole
-
item name:
-
wireless inspection camera
-
resolution:
-
800*400
-
battery for monitor:
-
4500mah
-
Battery capacity:
-
380mah LI- battery
-
LED light:
-
6pcs LED lights
-
Loop recording:
-
support
-
View angle:
-
90 degree
-
LCD screen:
-
5inch no blue monitor
Quick Details
-
Special Features:
-
NIGHT VISION, One-way Audio
-
Function:
-
NIGHT VISION, Built-in Mic
-
Customized support:
-
Online technical support, Customized logo, OEM, ODM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
3RD EYE
-
Model Number:
-
TE910H
-
Style:
-
tube camera, 2.4ghz wireless mini camera DVR
-
Technology:
-
Pinhole
-
item name:
-
wireless inspection camera
-
resolution:
-
800*400
-
battery for monitor:
-
4500mah
-
Battery capacity:
-
380mah LI- battery
-
LED light:
-
6pcs LED lights
-
Loop recording:
-
support
-
View angle:
-
90 degree
-
LCD screen:
-
5inch no blue monitor

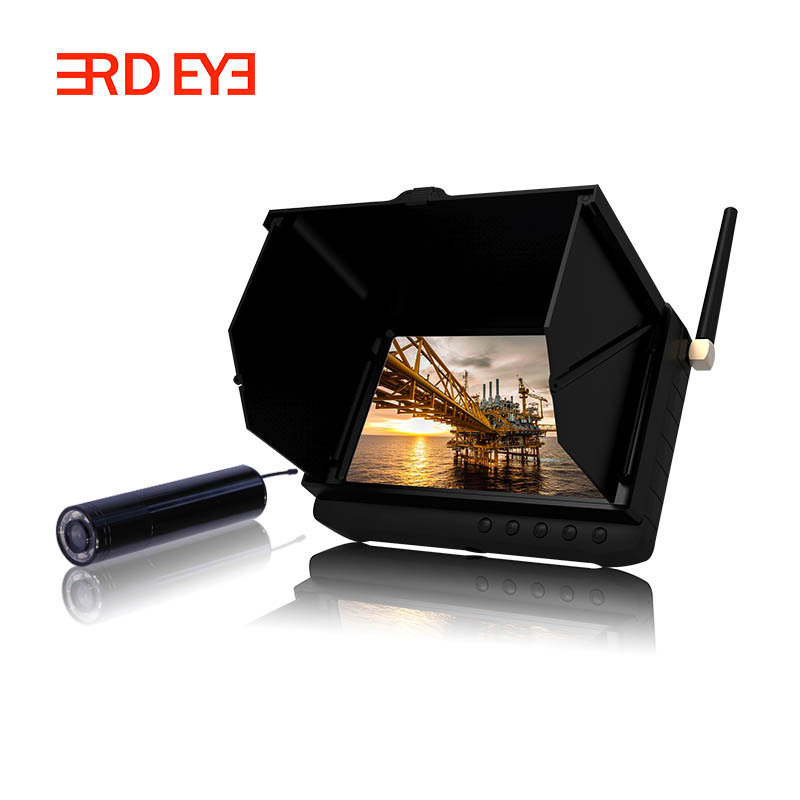

High quality 2.4ghz Wireless inspection camera with large screen monitor for pipeline , sewer, well , chimney inspection
Model: TE910H
Wireless 2.4GHz mini inspection Camera with head-set for sewer inspection with 380mah battery-powered (20X84mm;520TVL;5/8 meters view,90deg,6 LED/IR lights)
This portable wireless inspection camera is our company's newly-developed simple and convenient inspection instrument. It’s a new product that combined the technology of electronics, optics, and 2.4GHz wireless. It’s very small in size and lightweight, very convenient to carry.
Application
It can be used in dangerous & complicated surroundings, like high-altitude working. It’s easy operated and powered by high capacity Li battery with 1.5 hours continuous working time. High brightness LED/IR offers a long visible range of up to 8 meters. Moreover, it offers high-definition video and good performance.
Auto engine and gearing inspection; Medical inspection, like dental, skin disease, gynecology, etc.; All kinds of pipe & tube, building inspection; Antiterrorism search & rescue; Safety inspection; Archeology, etc.
Note: 3 types of lamps available , please choose 1 type when you order:
(1) 6 bright LED lamps: 5 meters of night vision
(2) 6 invisble light IR940 lamps: 5 meters of night vision
(3) 6 invisble light IR850 lamps: 8 meters of night vision
Selling points:
*Super small size & light weight, very convenient to carry;
*High resolution 720X576pix(PAL),720x480pix(NTSC),520TVL,offers good quality video;
*6 LED/IR lamps offers 5 or 8 meters clear view in complete darkness.(LED can be turned off too;IR is invisble light);
*High capacity built-in Li-battery offers power supply anywhere;
*No need any installation, and very easy to operate, just power on and it works!
* First complete wireless mini inspection camera with LED/IR in the world!
* with head-set, it is easy to view the video in the monitor or do other things convienient
* camera focus can be manually adjusted
* 5 inch monitor can receive the real-time image of the pipeline
* DVR supports external 32G memory card , video recording up to 32 hours .
Specification:
Wireless camera:
|
Frequency |
2414Mhz(CH1) |
|
|
RF Output Power |
50mW (300 feet in line of sight) |
|
|
Total Pixels |
PAL:720 X 576 NTSC:720 X 480 |
|
|
Minimum Illumination |
0.01Lux / F1.2 |
|
|
Lens Focus |
1-100cm (adjustable) |
|
|
View Angel |
90° |
|
|
Light Source |
LED |
2200mcd x 6 Range of LED lamp: 5 meters |
|
IR/940nm |
70mW x 6 Range of IR940 lamp: 5 meters |
|
|
IR/850nm |
70mW x 6 Range of IR850 lamp: 8meters |
|
|
Li-battery Capacity |
380MAH |
|
|
Working Time |
1.5 hours |
|
|
Charge Time |
1.5 hours |
|
|
Voltage |
DC 5V |
|
|
Current |
Lamp off:160mA Lamp on: 260mA Lamp highlight:300mA |
|
|
Weight |
35g |
|
|
Size ( DXL ) |
20mm X 84mm |
|
5 inch wireless 2.4Ghz DVR :
| Wireless Receiving | Sensitivity | -88dB |
| AV IN | TV system | NTSC / PAL |
| Output voltage | 3.6-4.2 V | |
| AV OUT | TV system | NTSC / PAL |
| HD 5-inch LCD screen | Active area | 108mm(W) X 64.8mm(H) |
| Resolution | 800 X 480 Pixel | |
| Luminance for LCM | 300 cd | |
| Video | Resolution | 720*576 / 720*480 |
| Video compress | MPEG-AVI 30fps | |
| Play format | MPEG-AVI | |
| Audio | Frequency | 20HZ-20KHz stereo |
| Earphone Output | Left: 20MW+ right 20mW [16O](suit to largest volume) | |
| Speaker | 1W | |
| Photo | Format | JPG/JPEG |
| Storage | External SD card | TF card 1GB-32GB(optional) |
| 32GB recording time | 10-32 hours | |
| 1GB photos | 15625pcs | |
| Operating system | PC | Windows & Mac OS |
| Port | USB 2.0 | |
| Language | Multiple | |
| Power | Voltage | DC 5V |
| Current(receiving mode) | 660MA | |
| Current( recording mode) | 680MA | |
| Power | Current(recording with off-screen mode) | 340MA |
| AC adapter | DC 5V 2A | |
| Built-in battery | Li-battery 4000Mah | |
| Standby time | Wireless record | ≥9.5 hours(off-screen); ≥5hours(on-screen) |
| Wired record | ≥12 hours(off-screen); ≥6hours(on-screen) *LED camera not included. | |
| Size:(LX W X H) | Without sunshade | 131mm x 90.5mm x 18mm |
| Size:(LX W X H) | With sunshade | 131mm x 90.5mm x 28mm |
| Weight: | Without sunshade | 215g |
| Weight: | With sunshade | 260g |
Pictures of TE910 H
