Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Haoan
-
Dimensions(L*W*H):
-
900*680*1650mm
-
Weight:
-
55 KG
-
Certification:
-
CE
-
Max. Print Area:
-
160*230mm
-
Name:
-
Silicone Glove Screen Printing Machine
-
Printing speed:
-
500~1200pcs/h
-
Operation:
-
Pneumatic
-
Printing type:
-
1time 1 Color
-
Feature:
-
Simple Operation
-
Advantage:
-
Easy Handling
-
Printing color:
-
Single One Time
-
Machine type:
-
Rapid Tagless Screen Printing Machine
-
Lead Time:
-
15 DAYS
Quick Details
-
Condition:
-
New
-
Color & Page:
-
single color
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Haoan
-
Dimensions(L*W*H):
-
900*680*1650mm
-
Weight:
-
55 KG
-
Certification:
-
CE
-
Max. Print Area:
-
160*230mm
-
Name:
-
Silicone Glove Screen Printing Machine
-
Printing speed:
-
500~1200pcs/h
-
Operation:
-
Pneumatic
-
Printing type:
-
1time 1 Color
-
Feature:
-
Simple Operation
-
Advantage:
-
Easy Handling
-
Printing color:
-
Single One Time
-
Machine type:
-
Rapid Tagless Screen Printing Machine
-
Lead Time:
-
15 DAYS

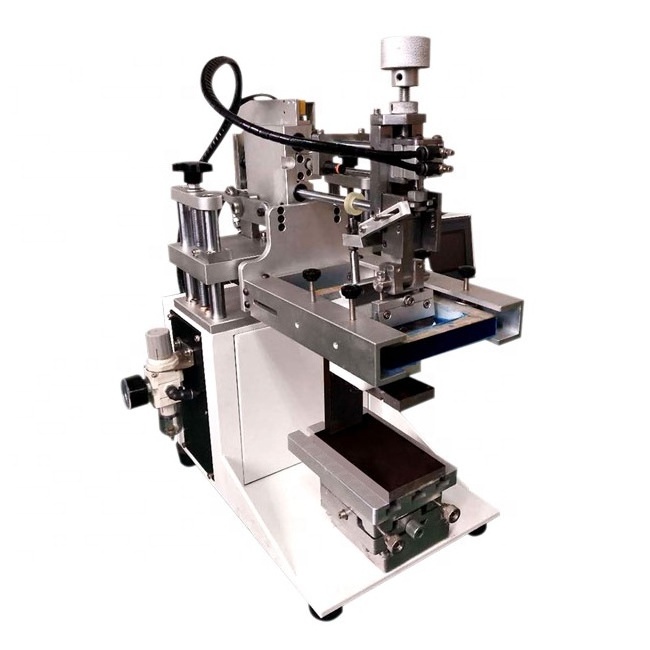

Silicone Glove Screen Printing Machine
Sample display
Products Description
This model is suitable for screen printing of industrial products such as nameplates, adhesive stickers, dashboards, membrane switch, computer keys, etc.
Screen vertical up down is driven by motor, motor drives the printing stroke stability, accuracy and smooth speed, it is corresponded with diverse production benefit. Stationary vacuum table is attached with three-point micro adjustment for quick alignment, HMI touch panel is used to work with CPU control, it is the best choice of flat printing the small & medium size substrate.
|
Model
|
HA-1218F Silicone Glove Screen Printing Machine
|
|
Substrate thickness
|
0〜100mm
|
|
Productivity
|
840 pph
|
|
Max printing area (DxW)
|
120x180mm
|
|
Max frame O/D size (DxW)
|
170x220mm
|
|
Table size (DxW)
|
130x200mm
|
|
Power consumption
|
35W
|
|
Air exhaustion
|
2.02L/cycle
|
|
Machine weight
|
50kg
|
|
Machine dimension (WxDxH)
|
600x650x650mm
|
Features:
Compact size non-occupy space, pneumatic transmission design, screen vertical up down avoids ink flow bias at lateral side.
Printing stroke is driven by DC motor to allocate with linear guide rail to attain smooth and fast motion and precise positioning.
Attached with precise micro-adjustment slider, table can be adjusted to front rear and right left side to facilitate multi-layer printing.
Moveable cantilever design is adopted for screen frame holder, robust structure with lightweight, convenient shift adjustment.
CPU control is used to obtain various printing cycle modes selection and correspond with diverse special requirement for printing.
Emergency Press Plate, E-stop switch are equipped for comprehensive safety protection.
Customer Photos
Exhibition
FAQ
1) How long for
Silicone Glove Screen Printing Machine
warranty?
1 years
2) Payment terms?
50% deposit in advance, balance before delivery
3) Lead time for the screen printer?
in 15 working days
