Quick Details
-
Brand Name:
-
GoKWh
-
Model Number:
-
BAP-GoKWh-12V100Ah-LCD
-
Battery Size:
-
335*185*215mm/L522 * W240 * H215 mm
-
Place of Origin:
-
China
-
Weight:
-
Approx 10kg/19kg
-
The charging ratio:
-
Max 50A/100A
-
The discharge rate:
-
Max 100A/200A
-
Product name:
-

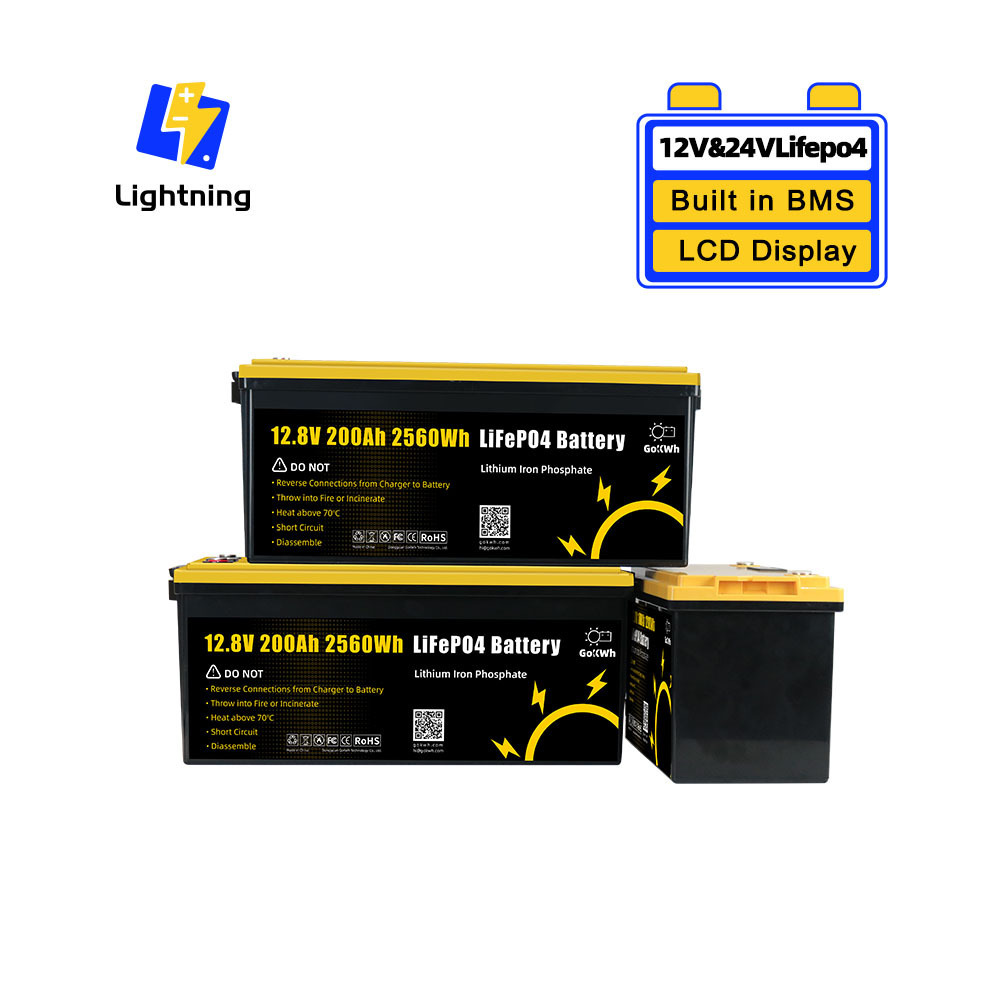

GoKWh Lithium 12V 24V 100Ah 200Ah Lifepo4 Battery
-
Service Life::
-
10 Years (25°C/77°F)
-
Color:
-
Black+Yellow
-
Cycle life:
-
≥4000 times
-
Internal Resistance:
-
≤30mΩ
-
OEM/ODM:
-
Yes(Accepted)
-
Charge Temperature:
-
0~45°C (32~113°F)
-
Discharge Temperature:
-
-20~60°C (-4~140°F)
-
BMS:
-
Built-in BMS Protection
Quick Details
-
Storage Type:
-
Home Storage
-
Anode Material:
-
LFP
-
Application:
-
Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric Forklifts
-
Brand Name:
-
GoKWh
-
Model Number:
-
BAP-GoKWh-12V100Ah-LCD
-
Battery Size:
-
335*185*215mm/L522 * W240 * H215 mm
-
Place of Origin:
-
China
-
Weight:
-
Approx 10kg/19kg
-
The charging ratio:
-
Max 50A/100A
-
The discharge rate:
-
Max 100A/200A
-
Product name:
-
GoKWh Lithium 12V 24V 100Ah 200Ah Lifepo4 Battery
-
Service Life::
-
10 Years (25°C/77°F)
-
Color:
-
Black+Yellow
-
Cycle life:
-
≥4000 times
-
Internal Resistance:
-
≤30mΩ
-
OEM/ODM:
-
Yes(Accepted)
-
Charge Temperature:
-
0~45°C (32~113°F)
-
Discharge Temperature:
-
-20~60°C (-4~140°F)
-
BMS:
-
Built-in BMS Protection
Products Description
|
Overview
|
GoKWh LiFePO4 Battery 12.8V 100Ah 1280Wh | 4000+ Cycles | Built-in BMS
#Grade A Blade Pouch Cell #Buit-in BMS #LCD Capacity Display #2 Hrs Charge Up to 80%, 50A Charging Current #IP65 Rated Gives Protection Against Low Pressure Water #5-Year Warranty |
|
|
|
Specifications
|
BASICAL SPECIFICATIONS
|
Model: 12V 100Ah
|
|
|
|
Rechargeable:Yes
|
|
|
|
|
Cell Type:LiFePO4(LFP) Pouch
|
|
|
|
|
Dimensions:
L13.19 * W7.28 * H8.46 ”
L335 * W185 * H215 mm |
|
|
|
|
Case Material:ABS
|
|
|
|
|
Warranty:5 Years
|
|
|
|
|
ELECTRICAL SPECIFICATIONS
|
Nominal Voltage: 12.8V
|
|
|
|
|
Nominal Capacity: 100Ah
|
|
|
Dimension and Weight
|
|
Nominal Energy: 1280 Wh
|
|
|
|
|
Standard Charge Voltage: ≤14.6V
|
|
|
|
|
Max Charge Current: ≤50 A
|
|
|
|
|
Discharge Cut-Off Voltage: ≥10V
|
|
|
|
|
Max Discharge Current: ≤100 A
|
|
|
|
|
Internal Resistance: ≤30mΩ
|
|
|
|
PERFORMANCE SPECIFICATIONS
|
Cycle Life: ≥4000 Times (80%DoD)
|
|
|
|
|
Service Life: 10 Years
|
|
|
|
|
Charge Temperature Range: 0~45°C (32~113°F)
|
|
|
|
|
Discharge Temperature Range: -20~60°C (-4~140°F)
|
|
|
|
|
Protection: IP65, Built-in BMS
|
|
For More Specification
Click Here
Battery Dimensions
About 1/3 the weight of a comparable lead acid battery.
M8 Terminal - 16mm
Why Choose Us
GoKWh VS Others
Automotive-grade Blad Pouch Cell
Usable Energy 1280W 100% DOD
4000-15000 Cycles and 8-10 Years Life Time
Light Weight and Samll Size of Lead Acid
Eco-Friendly&Green
4000-15000 Cycles and 8-10 Years Life Time
Light Weight and Samll Size of Lead Acid
Eco-Friendly&Green
Genuine LiFePO4 Prismatic Cell
Manufactured with automotive-grade battery cells, it offers excellent cycle life expectancy even under high and varied loads.
4000-15000 Cycle
Times @ Different DOD
10 Years
Life Time
Reliable BMS System | Ultra-Saftey
The internal Battery Management System (BMS) provides comprehensive protection to the battery and delivers sophisticated management of charging and discharging.
Charging Protection
Thermal Management
Battery Cell Balancing
Data Transmission
Safe Operation
Battery Aging
DIY Your Battery Bank System
The batteries pack support max 4S or 4P, but in practical applications, consumers need to calculate based on their own load situation.
In Parallel (up to 4P)
12.8V 400Ah | 5.12 kWh
In Series (up to 4S)
51.2V 100Ah | 5.12kWh
Due to the limitations of BMS, the default model does not support series and parallel connection at the same time. If necessary, please contact our
Sales
Note
Not A Starting/Power Battery
• Do not use it as a starting battery
• Do not use it to run Golf Cart
•
Charge the battery between 0~45°C (32~113°F)
Series/Parallel Tips
• The same model (capacity & voltage & BMS)
• The same brand
• Recent purchases (within 3 months)
Battery Mounting Direction
• The sides and tops of batteries can not be placed face down.
High Output Power
Suitable for A Variety of Home or Outdoor Devices
1280Wh Uasble Energy
3 Ways to Recharge The Battery
• Charger
12V(14.6) 20A LiFePO4 Battery Charger: 5hrs
• Solar Panel + MPPT
Recommend ≥400W Within 1 sunny day
• Generator
Add a 20A DC to DC Charger: 5hrs
* Please make sure your charger supports lithium batteries.
* Due to the difference in charging voltage, it is recommended to choose only one method of charging at a time.
What's in the box
1 *
GoKWh 12V100Ah LiFePO4 Battery
2 * Insulation Caps
2* M8 Post Bolts
1 * User Manual
Certification
MSDS UN38.3 CE
Shipping&Delivery
Total Delivery Time = Handling Time + Transit Time (+ any holidays and weekends)
|
Purchase Region
|
Warehouse
|
Shipping Option
|
Handling Time
|
Estimated Delivery Time
|
||||
|
USA/Canada
|
USA/CA
|
FedEx/DHL/UPS
|
1~7 working days
|
2~7 working days
|
||||
|
|
CN
|
By sea+Express(FedEx/DHL/UPS, Tax free)
|
|
|
||||
|
EU Country
|
DE(*2)/PL
|
DPD/UPS/TNT
|
|
2~7 working days
|
||||
|
|
CN
|
By railway or sea+Express(DPD/UPS/TNT, Tax free)
|
|
|
||||
|
Asia
|
CN
|
By sea/railway+Express(DPD/Toll/UPS/FedEx/TNT, most country are Tax free)
|
1~7 working days
|
25~60 working days
|
||||
|
Australia or other
|
CN
|
|
|
|
||||
|
We can't deliver the following address directly
|
|
|
|
|
||||
|
A
|
USA:
Military address and PO box address are not acceptable; Puerto Rico, Virgin Islands, Guam, Alaska Note: Hawaii does not
include customs duties and requires additional freight, Please contact us online. |
|
|
|
||||
|
B
|
Portugal:
Azores and Madeira
|
|
|
|
||||
|
C
|
Spain:
Canary Islands, hueda,Missily and melilia and some other Island
|
|
|
|
||||
|
D
|
Russia:
Kamchatka Peninsula
|
|
|
|
||||
|
E
|
Other:
Some remote areas not listed，Please provide shipping address and zip code to to us to check.
|
|
|
|
||||
|
Noted: *The above transportation time is only the reference time of most orders, excluding inspection time or other special time,such as natural accidents, congestion and other uncontrollable factors.*The tracking will be update after pick up by local express. Please wait patiently or contact us for help.
*Countries that do not appear in the table, Please Click https://shandian.en.alibaba.com/contactinfo.html Here to consult us for freight charges |
|
|
|
|
||||
FAQ
1).
Q: I need more function such Bluetooth and LCD screen,i also want anti vibration design for using at my Marine/RV/Vehicle can i customized my battery pack?
A: Yes of course, just let me know what exactly you need, our professional engineer team will give you an excellent solution, more than you expection.
2). Q: I'm very sensible in price, i am a wholesaler of battery pack, if i sell your battery pack in my city , the profit is very low,can i get a cheaper price? and i can see your competitor sells more cheap then you.
A: It is highly suggest that you can have a comparision with our competitor. Indeed, there are also some supplier provide low price battery pack but using cheap material. Pls pay attention to the cycle life and the warranty, and we have anti vibration design and communication design. maybe you know the price of cylindrical cell is far cheap then prismatic cell.besides, we also provide cylindrical cell solution , pls contact us directly and we will tell you more. Most Importantly, we can give you a professional solution according to your local market? low profit? Don't worry about that, our engineer team will help you help you to solve it.
3). Q: I can see the post that your company shows the warranty is 5 Years, so no matter what the battery pack be used for, all 5 Years?
A: No sir, maybe you know the cycle life of cell is not only depends on the quality itself , but also be affected by the
discharge/charge rate the actual temperature. So it is unresponsibility at all if a supplier tell you the cycle life but no
talking about the actual usage. For room temperature 25℃ and 1C discharge and 0.5C charge, the cycle life of the battery pack can exceed 4000 cycles and warranty 5 Years, only energy storage usage.
4). Q: Can these battery pack be compatible with my inverter? do you have a company list of the inverter which is compatible?
A: Yes sir, our battery pack can compatible with most brand of inverter on the market, contact us and let me tell you more.
5). What kind of the package of the cells?
They will come with well package,each cell into thickness PE foam or bag,then into 5 layers strong carton.
6). Q:Can it be series or parallel for use?
A: Yes sir, it can support max. 4 in series or parallel connection for use and no any additional device.
2). Q: I'm very sensible in price, i am a wholesaler of battery pack, if i sell your battery pack in my city , the profit is very low,can i get a cheaper price? and i can see your competitor sells more cheap then you.
A: It is highly suggest that you can have a comparision with our competitor. Indeed, there are also some supplier provide low price battery pack but using cheap material. Pls pay attention to the cycle life and the warranty, and we have anti vibration design and communication design. maybe you know the price of cylindrical cell is far cheap then prismatic cell.besides, we also provide cylindrical cell solution , pls contact us directly and we will tell you more. Most Importantly, we can give you a professional solution according to your local market? low profit? Don't worry about that, our engineer team will help you help you to solve it.
3). Q: I can see the post that your company shows the warranty is 5 Years, so no matter what the battery pack be used for, all 5 Years?
A: No sir, maybe you know the cycle life of cell is not only depends on the quality itself , but also be affected by the
discharge/charge rate the actual temperature. So it is unresponsibility at all if a supplier tell you the cycle life but no
talking about the actual usage. For room temperature 25℃ and 1C discharge and 0.5C charge, the cycle life of the battery pack can exceed 4000 cycles and warranty 5 Years, only energy storage usage.
4). Q: Can these battery pack be compatible with my inverter? do you have a company list of the inverter which is compatible?
A: Yes sir, our battery pack can compatible with most brand of inverter on the market, contact us and let me tell you more.
5). What kind of the package of the cells?
They will come with well package,each cell into thickness PE foam or bag,then into 5 layers strong carton.
6). Q:Can it be series or parallel for use?
A: Yes sir, it can support max. 4 in series or parallel connection for use and no any additional device.
Pls kindly know due to the limitations of BMS, the default model does not support series and parallel connection at the same time.
