Quick Details
-
Brand Name:
-
DYS
-
Use:
-
FTTH
-
Product name:
-
1x8 plc splitter
-
Splitter type:
-
Mini Steel Tube
-
Fiber diameter:
-
0.9mm,2.0mm,3.0mm
-
Cable Length of Blockless Splitter:
-
1m,1.5m,can be customized
-
Port Configuration:
-
1x2 1x4 1x8 1x16 1x32
-
Fiber Type:
-
G657A1 or customized
-
Connector Type:
-
SC/APC,SC/UPC,or customized
-
Operating Wavelength(nm):
-
1260~1650
-
Cassette material:
-
aluminium
-
Color:
-
blue, orange,green,grown,grey,white,red,black
Quick Details
-
Type:
-
PLC splitter
-
Model Number:
-
plc splitter 1x8
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DYS
-
Use:
-
FTTH
-
Product name:
-
1x8 plc splitter
-
Splitter type:
-
Mini Steel Tube
-
Fiber diameter:
-
0.9mm,2.0mm,3.0mm
-
Cable Length of Blockless Splitter:
-
1m,1.5m,can be customized
-
Port Configuration:
-
1x2 1x4 1x8 1x16 1x32
-
Fiber Type:
-
G657A1 or customized
-
Connector Type:
-
SC/APC,SC/UPC,or customized
-
Operating Wavelength(nm):
-
1260~1650
-
Cassette material:
-
aluminium
-
Color:
-
blue, orange,green,grown,grey,white,red,black
Product Description
Planar waveguide light optical distributor (PLC Splitter), is a kind of planar waveguide integrated optical device, it can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive optical network access technology FTTP fiber network system, broadband passive optical distributor (POS) use.

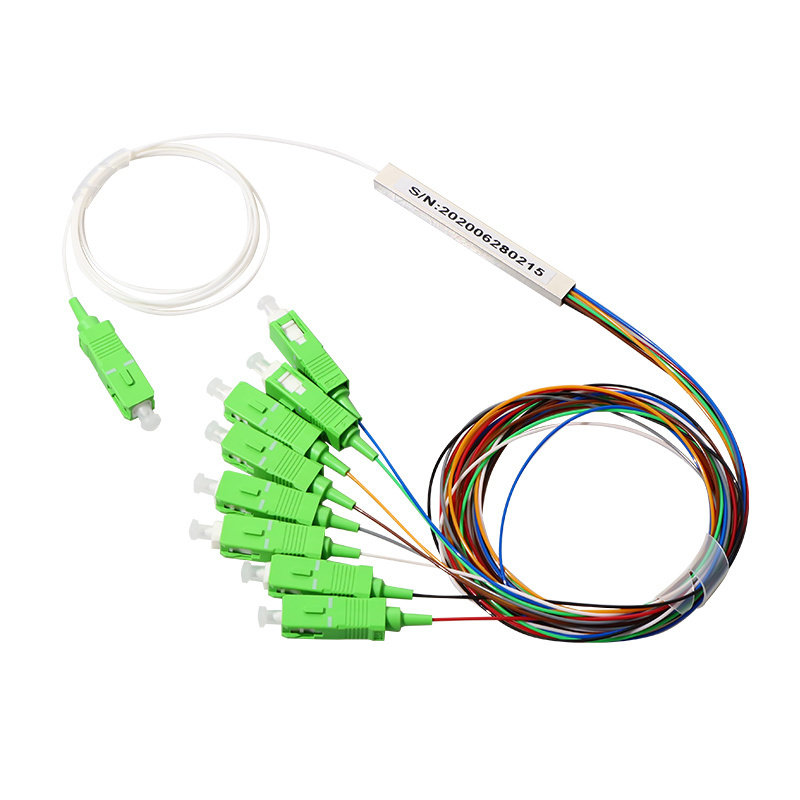

Mini 1x8 PLC Splitter Steel Tube Fiber Optic SC/APC 1 8 PLC Splitter
APPLICATION
FTTx Systems
Digital, hybrid and AM-Video systems
LAN,WAN and Metro Networks
CATV systems
Other applications in fiber optic systems
FEATURES
Low Insertion loss and Low PDL
Uniform power splitting
High reliability
Excellent environmental stability
Compact size and various package
ABS PLC splitter with SC APC connector
type PLC splitter without connector
PLC splitter with SC APC connector
LGX PLC splitter with SC APC connector
|
Parameter/Type
|
Nx2(N=1or2)
|
Nx4(N=1or2)
|
Nx8(N=1or2)
|
Nx16(N=1or2)
|
Nx32(N=1or2)
|
Nx64(N=1or2)
|
|||||
|
Fiber
|
9/125 um SMF-28e or customer appoint
|
|
|
|
|
|
|||||
|
Operating Wavelength(nm)
|
1260~1650(nm)
|
|
|
|
|
|
|||||
|
Insertion Loss
|
≤3.9dB
|
≤7.1dB
|
≤10.3dB
|
≤13.3dB
|
≤16.3dB
|
≤19.8dB
|
|||||
|
Loss Uniformity(dB)
|
≤0.6dB
|
≤0.6dB
|
≤0.8dB
|
≤1.2dB
|
≤1.5dB
|
≤2.0dB
|
|||||
|
Polariation Dependent Loss
|
≤0.15dB
|
≤0.15dB
|
≤0.2dB
|
≤0.2dB
|
≤0.2dB
|
≤0.3dB
|
|||||
|
Return Loss
|
UPC≥50dB APC≥60dB
|
|
|
|
|
|
|||||
|
Directivity
|
≥55dB
|
|
|
|
|
|
|||||
|
Working Temperature(℃)
|
-40°C to +85°C
|
|
|
|
|
|
|||||
