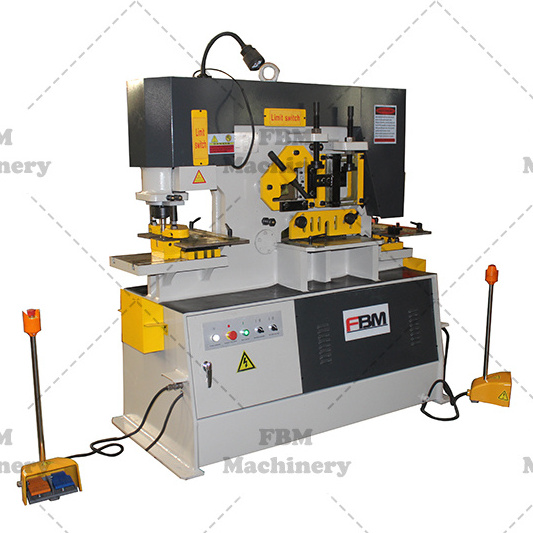

Q35Y series Using hydraulic transmission,can cut and punch all kinds of materials such as plates, square steel, round steel, angle steel, channel steel, joist steel.
Main standard properties components:
1. Professionally engineered design frame structures.
2. Steel welds with high precision strength and rigidity to eliminate vibrations.
3. Ironworker steel frame Q235 = American standard steel A306 GR55.
4. Five sets of punch and blades were installed on the machine.
5. Dual independent hydraulic cylinder.
6. Dual Footswitch controlled work separately
7. Easy Adjustable stroke control.
8. Indicator of both hydraulic cylinders.
9. 1m Electric back gauge auto stop (press button,add cost ).
10. Moveable working light that can be placed at any desired position.
11. Hydraulic system with overload protection system.
12. Emergency safety stop switch .
13. Most important easy maintenance.
- Product Details
- {{item.text}}
Quick Details
-
Year:
-
2020
-
Voltage:
-
220V/380V/415V/480V
-
Dimension(L*W*H):
-
1950mmx900mmx1950mm
-
Motor Power (kW):
-
7.5
-
Weight (T):
-
2.4
-
Type:
-
Hydraulic Press
-
Application:
-
Metal Sheet Stamping
-
Color:
-
Customized
-
Keyword:
-
Q35y Hydraulic Ironworker
-
Punching Pressure(KN):
-
90 T
-
MAX punching diameter:
-
30 Mm Hole Punching
-
Main Electric Component:
-
Schneider
-
Max Shearing Thickness(mm):
-
20 Ironworker
-
Flat bar shearing:
-
20*330 10*480
-
Cutting Material:
-
Metal Stainless Steel Carbon Steel
Quick Details
-
Nominal Force (kN):
-
900
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
FBM
-
Year:
-
2020
-
Voltage:
-
220V/380V/415V/480V
-
Dimension(L*W*H):
-
1950mmx900mmx1950mm
-
Motor Power (kW):
-
7.5
-
Weight (T):
-
2.4
-
Type:
-
Hydraulic Press
-
Application:
-
Metal Sheet Stamping
-
Color:
-
Customized
-
Keyword:
-
Q35y Hydraulic Ironworker
-
Punching Pressure(KN):
-
90 T
-
MAX punching diameter:
-
30 Mm Hole Punching
-
Main Electric Component:
-
Schneider
-
Max Shearing Thickness(mm):
-
20 Ironworker
-
Flat bar shearing:
-
20*330 10*480
-
Cutting Material:
-
Metal Stainless Steel Carbon Steel
Products Description
Introduction:
|
Model
|
Q35Y-30
|
Q35Y-25
|
Q35Y-20
|
Q35Y-16
|
|
Punching force(T)
|
145
|
120
|
90
|
60
|
|
Max. shearing thickness(mm)
|
30
|
25
|
20
|
16
|
|
Material strength (N/mm2)
|
≤450
|
≤450
|
≤450
|
≤450
|
|
Angle of shear
|
8°
|
8°
|
8°
|
7°
|
|
Flat bar(thickness x width)
(mm)
|
30 x 335
20 x 600
|
25 x 330
16 x 600
|
20 x 330
10 x 480
|
16 x 250
8 x 400
|
|
Max. length of cylinder stroke(mm)
|
80
|
80
|
80
|
80
|
|
Stroke times (times/min)
|
6-16
|
8-18
|
12-20
|
12-28
|
|
Depth of throat (mm)
|
600
|
400
|
355
|
300
|
|
Max. punching thickness(mm)
|
28
|
25
|
20
|
16
|
|
Max. diameter of punching(mm)
|
38
|
35
|
30
|
25
|
|
Motor power(KW)
|
15
|
11
|
7.5
|
5.5
|
|
Overall dimensions
(L×W×H)
(mm)
|
2800
|
2355
|
1950
|
1700
|
|
|
1100
|
960
|
900
|
750
|
|
|
2500
|
2090
|
1950
|
1800
|
|
Weight(KG)
|
6400
|
4000
|
2400
|
1800
|
Certifications
Packaging & Shipping
FAQ
Q
Don't know what model of machine is needed?
A Please tell us your product material, product thickness, product size.
A Please tell us your product material, product thickness, product size.
Q
Do not know what kind of control operating system is needed?
A We will recommend a suitable control system based on your product needs and your budget.
A We will recommend a suitable control system based on your product needs and your budget.
Q
Need to change machine parts requirements and other special requirements of the machine?
A According to customer requirements.
A According to customer requirements.
Q
How to operate machines?
A We provide operation videos and operation manuals to help customers learn to how to operate machine. We can support overseas commissioning and training. Also can provide help through agents or other end users.
A We provide operation videos and operation manuals to help customers learn to how to operate machine. We can support overseas commissioning and training. Also can provide help through agents or other end users.
