Quick Details
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3100*1300*1300MM
-
Application:
-
sawmill cut log to board
-
Weight (KG):
-
2000 KG
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
Argentina
-
Showroom Location:
-
Japan
-
Other name:
-
Multi-blade Saw For Log
-
Application::
-
wood, round wood log
-
Usage::
-
Wood cutting
-
Keyword:
-
chainsaw wood cutting machine
-
Saw blade arrangement::
-
Upper and down
-
Keyword 2:
-
multi rip saw
-
Feed speed::
-
Frequency control
-
function:
-
cutting wood
-
Weight:
-
1300KG
-
Power(W):
-
18KW
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
MONA
-
Usage:
-
Woodworking
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3100*1300*1300MM
-
Application:
-
sawmill cut log to board
-
Weight (KG):
-
2000 KG
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
Argentina
-
Showroom Location:
-
Japan
-
Other name:
-
Multi-blade Saw For Log
-
Application::
-
wood, round wood log
-
Usage::
-
Wood cutting
-
Keyword:
-
chainsaw wood cutting machine
-
Saw blade arrangement::
-
Upper and down
-
Keyword 2:
-
multi rip saw
-
Feed speed::
-
Frequency control
-
function:
-
cutting wood
-
Weight:
-
1300KG
-
Power(W):
-
18KW
-
Certification:
-
CE

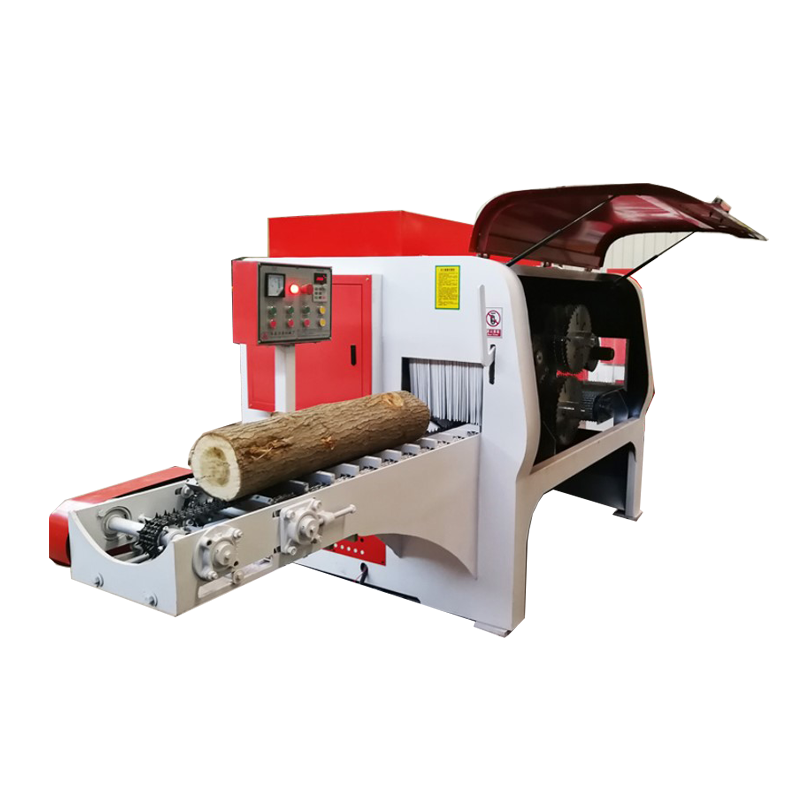

Automatic Multi-blade Saw For round and square Log/Multi Rip Saw Machine
1. The multiple rip saw machine is mainly used for the cutting of logs. The logs can be sawed into five or six sheets of different thicknesses through the feeding port. It is a commonly used round cutting machine.
2. The process of cutting wood with gang rip saw is automatic feeding, multi-saw sawing, continuous discharging, so its production efficiency is many times higher than that of band saw.
3. Heavy-duty design, the wood circular saw machine suitable for general hardwood and imported wood processing. Such as (Pinus sylvestris, radiata pine, birch, white pine, Chinese fir, metasequoia, pine, pineapple, poplar, elm, Cyclobalanopsis, Acacia, etc.) and a variety of hardwood.
1.type one is used to saw the round wood
Log multi-blade saw (i.e. multi-blade saw for round wood) is a new saw machine for damp & dry raw wood that
Main feature:
Up and down saw spindle, small saw blade diameter and thin saw kerfs (50% of normal single-spindle multi-blade saw for same log);
V-Shape chains feeding and automatic centering design and can improve the efficiency
Scientific control panel makes it easy to learn
flat and smooth sawing surface (replace planer);
energy-saving and low waste due to the multi-blade design;
high feeding speed and greatly improve efficiency.
Upper pressing roll automatically increase tensile force to ensure stable feeding.
Moreover, the spindle cooling, electric degreasing & cooling functions and external high pressure spray head help save energy and improve cooling effects.
|
Model |
MN 8-18 |
MN10-20 | MN12-24 | MN15-30 | MN18-35 | MN20-40 |
|
Dimension (mm) |
3600*1500*1450 | 3800*1600*1600 | 4100*1650*1600 | 4200*1700*1750 | 4300*1750*1750 | 4500*2200*1750 |
| Total Power(kw) | 30kw+22kw | 30kw+30kw | 37kw+30kw | 37kw+37kw | 45kw+45kw | 55kw+45kw |
|
Feeding Speed |
CVT | CVT | CVT | CVT | CVT | CVT |
| Working width(mm) | 80-180mm | 100-200mm | 120-240mm | 150-300mm | 180-350mm | 200-400mm |
| Working height(mm) | 80-170mm | 100-190mm | 120-220mm | 150-280mm | 180-330mm | 200-380mm |
| Working length(mm) | 600-4000mm | 700-4000mm | 700-4000mm | 1000-4000mm | 1000-4000mm | 1200-4000mm |
| Weigt-Main Unit(kg) | 1800kg | 1850kg | 2200kg | 2600kg | 3100kg | 3500kg |
2. type second one is used to saw the square wood
Product Shows
