Quick Details
-
Brand Name:
-
Susen Clamp
-
Model Number:
-
SXL*G9-6mm-102mm
-
Usage:
-
Pipe Clamp
-
Application:
-
Industrial
-
Certification:
-
ISO9001
-
Surface treatment:
-
Zinc Plating
-
Function:
-
Fixed Tube
-
Finish:
-
Coating
-
Structure:
-
Assembly
-
Sample:
-
Freely Supplied
-
Surface:
-
Zinc Plated /galvanized/ss304/ss316
-
Package:
-
Carton Box+plastic Bag
Quick Details
-
Measurement system:
-
INCH, Metric
-
Material:
-
Stainless steel, Metal, Plastic, Aluminium
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Susen Clamp
-
Model Number:
-
SXL*G9-6mm-102mm
-
Usage:
-
Pipe Clamp
-
Application:
-
Industrial
-
Certification:
-
ISO9001
-
Surface treatment:
-
Zinc Plating
-
Function:
-
Fixed Tube
-
Finish:
-
Coating
-
Structure:
-
Assembly
-
Sample:
-
Freely Supplied
-
Surface:
-
Zinc Plated /galvanized/ss304/ss316
-
Package:
-
Carton Box+plastic Bag

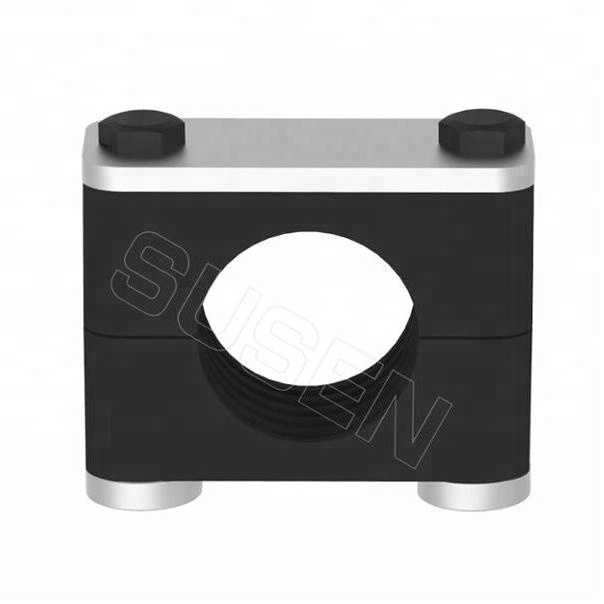

Product Description
Clamp is made as per DIN3015 and meets national heavy machinery standard. This model has 8 series (fixing pipe outer diameter from 6mm~102mm),applicable to the pipeline fixing environments of low mechanical strength. It is used to fix the pipelines of medium pressure and low pressure (PN≤8Mpa) with oil, water and gas as medium in the mechanical hydraulic systems of meltallurgy, ship-making, petroleum, chemistry, oceaneering, engineering machinery and such other industries.
| 1. Structure |
| Hexagon head bolt/hexagon socket bolt+cover plate+clamp body+welded base plate/rail nuts |
| 2. Material |
| Clamp body: plastic PP-polypropylene /PA-polyamide /AL-aluminium |
| cover plate: carbon steel (Zn-galvanised) or stainless steel (SS 304/316) |
| Bolt: carbon steel (Zn-galvanised) or stainless steel (SS 304/316) |
| 3. Temperature |
| PP: -30°c up to + 90°c green |
| PA: -40°c up to + 120°c dark |
| AL: -80°cup to 300°c grey |
Certifications
FAQ
Q:Are you a factory or trading company?
A: We are a professional hydraulic clamps for many years,welcome to visit our company.
Q:What is your trading system?
A;1,payment system:T/T 30% deposit after order confirmed,70% balance paid against bill of loading,or order in Alibaba directly.
2, Lead time:normally in 10 days after deposit received.
3,Sample policy:Sample are free,but the freight in affored by yourself.
4,shipping port:Jiangsu province, Zhejiang province, and Shanghai sea port in China
5,we offer a good discount for big quantity.
Q; How to make a business with you?
A:Quatation -- >PI--->comnfirm PI-------->Arrange 30% deposit ---->producing--->pay balance----->shipping
