Pure water water filter system include:Raw water tank,Raw water pump,Quartz sand filter,Active carbon filter,Precision filter,Roverse osmosis ,Ozone gengerator,Ozone mixer tank, Water tank .
Mineral water filter system include :Raw water tank ,Raw water pump,Quartz sand filter,Active carbon filter,Precision filter,Hollow Fiber Ultra Filter, Water tank .
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
2400X1600X2400mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Video technical support, Free spare parts
-
Name:
-
automatic filling machine
-
Processing Types:
-
Washing Filling Capping
-
Material:
-
Stainless Steel 304
-
Capacity:
-
5000-6000bph
-
Model:
-
CGF 16-16-6
-
Bottle type:
-
square bottle /round bottle
-
Product:
-
mineral water/pure water
-
Filling volume:
-
500-2500ml
-
Type:
-
Filling Machine
-
Packaging Type:
-
Barrel, Bottles, CANS, Pouch, Cartons, Stand-up Pouch, Bags, case
-
Packaging Material:
-
Glass, metal, plastic
-
Automatic Grade:
-
Automatic
-
Machinery Capacity:
-
4000BPH, 8000BPH, 12000BPH, 6000BPH, 20000BPH, 16000BPH, 2000BPH, Other
-
Filling Material:
-
Beer, Milk, Water, Oil, Juice, Other
-
Marketing Type:
-
New Product 2020
-
Machinery Test Report:
-
Provided
-
Video outgoing-inspection:
-
Provided
-
Warranty of core components:
-
1 Year
-
Core Components:
-
Motor, Pressure vessel, Pump, PLC, Gear, Bearing, Gearbox, Engine
-
Filling Accuracy:
-
±5%
-
Certification:
-
CE ISO
-
Weight:
-
3000kg
Quick Details
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ZPACK
-
Dimension(L*W*H):
-
2400X1600X2400mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Video technical support, Free spare parts
-
Name:
-
automatic filling machine
-
Processing Types:
-
Washing Filling Capping
-
Material:
-
Stainless Steel 304
-
Capacity:
-
5000-6000bph
-
Model:
-
CGF 16-16-6
-
Bottle type:
-
square bottle /round bottle
-
Product:
-
mineral water/pure water
-
Filling volume:
-
500-2500ml
-
Type:
-
Filling Machine
-
Packaging Type:
-
Barrel, Bottles, CANS, Pouch, Cartons, Stand-up Pouch, Bags, case
-
Packaging Material:
-
Glass, metal, plastic
-
Automatic Grade:
-
Automatic
-
Machinery Capacity:
-
4000BPH, 8000BPH, 12000BPH, 6000BPH, 20000BPH, 16000BPH, 2000BPH, Other
-
Filling Material:
-
Beer, Milk, Water, Oil, Juice, Other
-
Marketing Type:
-
New Product 2020
-
Machinery Test Report:
-
Provided
-
Video outgoing-inspection:
-
Provided
-
Warranty of core components:
-
1 Year
-
Core Components:
-
Motor, Pressure vessel, Pump, PLC, Gear, Bearing, Gearbox, Engine
-
Filling Accuracy:
-
±5%
-
Certification:
-
CE ISO
-
Weight:
-
3000kg
Product Description
Product Application

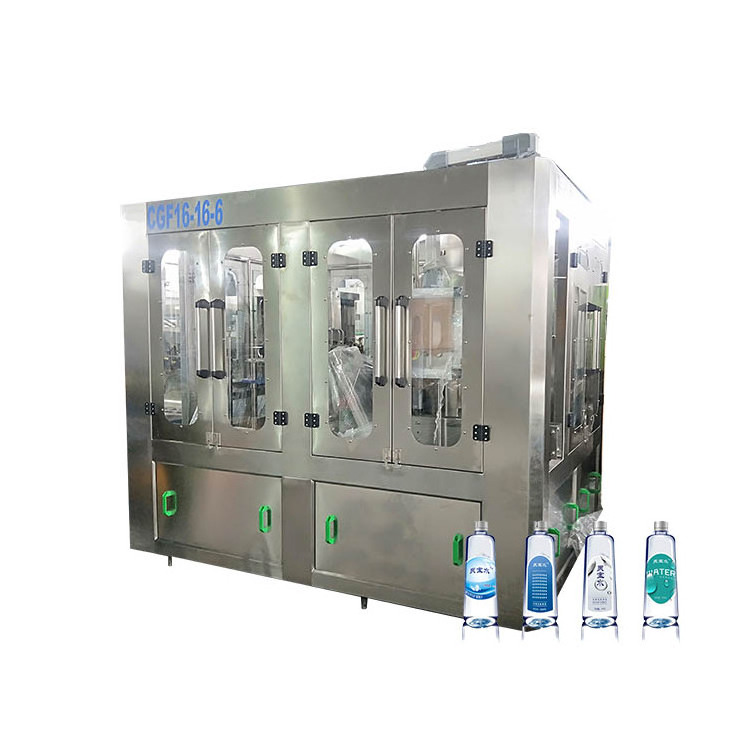

Water filling machine small water bottle packing machine mineral water bottling line machine
This series Automatic 3-in-1 machine intergrates
Wash bottle,filling bottle ,capping bottle
into one unit .Water Filling Machine is used to produce bottled
mineral water, purified water, flavored water, alcoholic beverage and other non-gas Liquid.
This Machine can be
applied
to all kinds of
plastic products
such as PET, PE. Bottles size varies from
250ml-2500ml
meanwhile few changeover is needed. This series of filling machine capacity varies from
3000BPH to 32000BPH
.
Main features of the equipment:
1. The suspending bottleneck clamping design make the bottle stable during the high speed moving conditions.
By changing a few parts
, it can meet the need of production of
different types of bottles easily
.
2. The new generation of stainless steel grab is adopted and the grabs have no contact with the area above the bottle's screw thread. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.
3. The advanced
Atmospheric pressure filling
technology used in this machine makes the filling quick, steady and accurate. The beverage -holding tank is fully-closed and also, temperature control device and CIP washing interface are intalled.
4. Advanced technologies, such as human-machine interface
touch-screen and PLC
computer program control are adopted in this machine.
|
Model
|
CGF8-8-3
|
CGF12-12-6
|
CGF18-18-6
|
CGF24-24-8
|
CGF32-32-12
|
CGF40-40-12
|
|||||
|
Heads of washing filling capping
|
8-8-3
|
12-12-6
|
18-18-6
|
24-24-8
|
32-32-12
|
40-40-12
|
|||||
|
Output500mlB/H
|
2000
|
4000
|
6000
|
10000
|
12000
|
14000
|
|||||
|
Suitable Bottle Size
|
Φ=50-95mm 330ml-1500ml
|
|
|
Φ=50-105mm 330ml-2000ml
|
|
Φ=50-110mm
|
|||||
|
Spraying Pressure(Mpa)
|
0.25-0.3Mpa
|
|
|
|
|
|
|||||
|
Power Supply(Kw)
|
3.5
|
5
|
6.6
|
7
|
10.4
|
11.5
|
|||||
|
Overall Dimentsion(LxWxH)mm
|
2000x1500x2300
|
2300x1700 x2500
|
2500x1850 x2500
|
3100x2100 x2500
|
4600x2160 x2500
|
4600x3800 x2500
|
|||||
Auxiliary machines
Water treatment system RO/Hollow ultra filter
Automatic bottle blowing machine
Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc
Auto bottle unscrambler
The machine is used to sort out the disordered PET and PP bottles. When the output is relatively large, the bottle can be sent to the filling machine through the machine in an orderly manner, and the next process is carried out with high economic efficiency. 12F + 4R sliding sleeve displacement .High speed operatin, easy to combine With all kinds of filler or filling prodution line.
Automatic sticker labeling machine
1) This labeler is full- automatic and can label on any shape bottles: single side labeling and double sides.
2) Equipped with PLC control system and Touch Screen Control. The machine automatically stop running when no label and no bottles.
3) Photoelectric detecting make labeling in high speed and high accuracy.
2) Equipped with PLC control system and Touch Screen Control. The machine automatically stop running when no label and no bottles.
3) Photoelectric detecting make labeling in high speed and high accuracy.
4) Have a very good labeling effect, no crumple and no bubble..
Auto shrink sleeve labeling machine .
1/Heat shrink sleeve labeling machine
It adopts double driving structure which is a new and advanced driving device for the thermal shrink sleeve machine, that is, four-wheel driving, self-centering and balanced pressure of four wheels. It can achieve the good effect of transmission of labels smoothly, stably and rapidly.
Date printer /inkjet printer /laser printer
1.Print up to 3 lines of text ,bar codes, 2D code ,and logos at speeds up to 180 meter/min.
2.USB connector ,allow the message transfer between different printers.
3.Optimized printhead heating thermostatic between different printers.
4.Optimized printhead heating thermostatic system, printhead temperature can be kept as a very stable level, more flexible to extreme environment.
Auto shrink wrapping machine
1/PE film shrink wrapping machine
2/Half-tray shrink wrapping machine
3/Carton box packaging machine
It adopts the photoelectric sensor to detect online, gather signals which are controlled by PLC, and adopts piston as executable element, to realize product conveying, combination, film wrapping, cutting, heat& shrink, cool and finally get the finished product..
