Quick Details
-
Ice storage capacity:
-
1000kg
-
Applicable Industries:
-
Snow making industry
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Blue Ocean
-
Dimension(L*W*H):
-
2800mm*2600mm*2100mm
-
Weight:
-
1000 KG
-
Water volume:
-
46-60L/min snow making machine
-
Air compressor:
-
4KW
-
Range:
-
45 -60 m snow making machine
-
Total power:
-
29.5kw
-
Power supply:
-
3 Phase 380v
-
Snow production:
-
60-100 m3/h
-
Water pressure:
-
0.7-3.5MPa
-
Nozzle number:
-
325
-
Operating temperature:
-
0~-30 degrees
-
Product name:
-
commercial snow making machine price
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Pakistan
-
Showroom Location:
-
South Africa
-
Certification:
-
ce
-
After-sales Service Provided:
-
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
Marketing Type:
-
New Product 2020
Quick Details
-
Ice Shape:
-
Flake Ice
-
Voltage:
-
380v
-
Power:
-
19.5KW
-
Ice storage capacity:
-
1000kg
-
Applicable Industries:
-
Snow making industry
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Blue Ocean
-
Dimension(L*W*H):
-
2800mm*2600mm*2100mm
-
Weight:
-
1000 KG
-
Water volume:
-
46-60L/min snow making machine
-
Air compressor:
-
4KW
-
Range:
-
45 -60 m snow making machine
-
Total power:
-
29.5kw
-
Power supply:
-
3 Phase 380v
-
Snow production:
-
60-100 m3/h
-
Water pressure:
-
0.7-3.5MPa
-
Nozzle number:
-
325
-
Operating temperature:
-
0~-30 degrees
-
Product name:
-
commercial snow making machine price
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Pakistan
-
Showroom Location:
-
South Africa
-
Certification:
-
ce
-
After-sales Service Provided:
-
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
Marketing Type:
-
New Product 2020

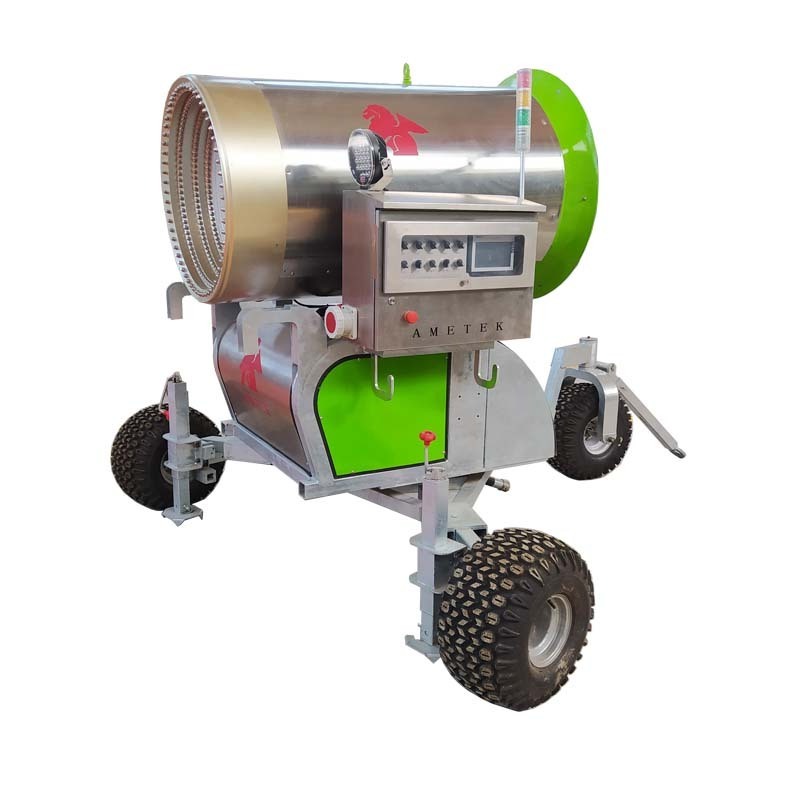

The AMETEK snow maker ejects a mixture of water and air in an appropriate proportion through a nozzle ring with 330 special nozzles. Under suitable weather conditions, this mixture of water and air will crystallize into tiny snow crystals before reaching the ground under the action of a low-pressure fan.
Due to the flexible regulation of water flow and the use of a scientific nozzle ring design, from the absolute critical/limit temperature range to the low temperature range, snow generators can efficiently perform snow making operations, and the snow is large and the snow quality is good. The air compressor is located below the hinge cover or detachable cover.
The water source can pass through the swing joint under the base of the snow maker or flow directly through the water tank and valve before entering the nozzle ring. After the snow machine is closed, it can be drained on its own. The electric control box is located on the side of the snowmaker.
The freeze-prone parts of the snow maker can effectively prevent freezing by installing heating devices.
The fan can rotate upwards or horizontally.
The snow maker has the following four bases to choose from:
L Tripod type
L Wheel
L Tower
L Elevation
L Single axle wheel
L Hydraulic cantilever type
Specifications:
|
Product name |
Blue sea snow machine |
|
Total power |
29.5kw |
|
Power supply |
3 Phase 380v |
|
Fan |
18.5KW |
|
Air compressor |
4KW |
|
Range |
45 -60 m |
|
Heating system |
4-6 KW |
|
Water volume |
46-60L/min |
|
Snow production |
60-100 m3/h |
|
Water pressure |
0.7-3.5MPa |
|
Nozzle number |
325 |
|
Nuclear device |
20 nuclear nozzles |
|
Filtering system |
60 mesh stainless steel filter |
|
Water pipe interface |
DN40/DN50 |
|
Operating temperature |
0~-30 degrees |
|
Automatic swing device |
Automatic 70 degrees / manual 360 degrees |
|
Pitch angle |
0-45° manually adjustable |
|
Snow production |
80-100 m3/h/-15 degrees |
|
Volume |
Length: 3.2 m, width: 2.1 m, height: 2.3 m |
