Quick Details
-
Color:
-
Green
-
Selling point:
-
Superior quality and competitive prices
-
Pitch:
-
5.08mm
-
Terminal Number:
-
2P-24P
-
Screws:
-
M3*5 Steel Zinc plated
-
Terminal Material:
-
Brass
-
Rated Voltage:
-
300V
-
Rated Current:
-
15A
-
Wire Size:
-
24-12AWG
-
Application:
-
PCB
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
XIONGSHI
-
Model Number:
-
SDK
-
Color:
-
Green
-
Selling point:
-
Superior quality and competitive prices
-
Pitch:
-
5.08mm
-
Terminal Number:
-
2P-24P
-
Screws:
-
M3*5 Steel Zinc plated
-
Terminal Material:
-
Brass
-
Rated Voltage:
-
300V
-
Rated Current:
-
15A
-
Wire Size:
-
24-12AWG
-
Application:
-
PCB

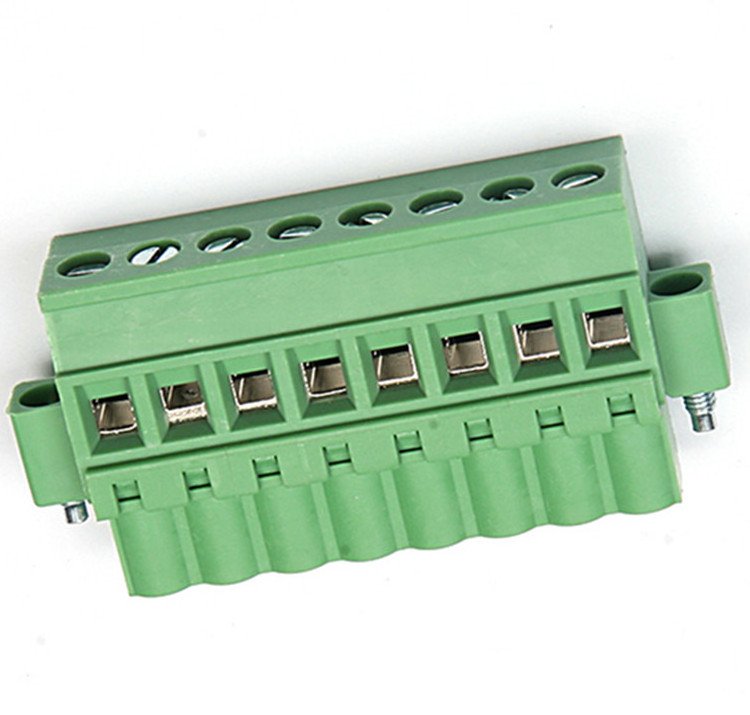

5.08mm Pitch Pluggable Terminal Block with Fix Ear 5.08mm Pitch 300V 15A XS2ESDK-5.08 KF2EDGKAM-5.08
5.08mm Pitch Pluggable Terminal Block with Fix Ear 5.08mm Pitch 300V 15A XS2ESDK-5.08 KF2EDGKAM-5.08 Back Fix Bar
5.08mm Pitch Pluggable Terminal Block with Fix Ear 5.08mm Pitch 300V 15A XS2ESDK-5.08 KF2EDGKAM-5.08 Back Fix Bar Spec:
1,Pitch: 5.08mm
2,Terminal number:2P-24P
Material
1,Screws: M3.5 steel Ni plated
2,Pin header: Brass, Tin plated
Electrical
1,Rated voltage: 300V
2,Rated current: 15A
3,Wire range: 24-12AWG 2.5mm²
Mechanical
Temp. Range: -40ºC to +105ºC
MAX Soldering: +250ºC for 5 Sec.
5.08mm Pitch Pluggable Terminal Block with Fix Ear 5.08mm Pitch 300V 15A XS2ESDK-5.08 KF2EDGKAM-5.08 Back Fix Bar Spec:
|
Model: |
XS2ESDK-5.08 |
|
Type: |
Female |
|
Rated Voltage: |
300V |
|
Rated Current: |
15A |
|
Pitch: |
5.08mm |
|
Poles: |
2-24Poles |
|
Terminal Material: |
Tin Plated Brass |
|
Screws: |
Nickel Plated Iron Screws |
|
Plastic Housing: |
PA66 V-0 |
|
Screws Torque: |
4.5Ib-inch |
|
Wire Range: |
24-12AWG 2.5mm² |
5.08mm Pitch Pluggable Terminal Block with Fix Ear 5.08mm Pitch 300V 15A XS2ESDK-5.08 KF2EDGKAM-5.08 Back Fix Bar Drawing:
5.08mm Pitch Pluggable Terminal Block with Fix Ear 5.08mm Pitch 300V 15A XS2ESDK-5.08 KF2EDGKAM-5.08 Back Fix Bar
5.08mm Pitch Pluggable Terminal Block with Fix Ear 5.08mm Pitch 300V 15A XS2ESDK-5.08 KF2EDGKAM-5.08 Face Fix Bar
5.08mm Pitch Pluggable Terminal Block with Fix Ear 5.08mm Pitch 300V 15A XS2ESDK-5.08 KF2EDGKAM-5.08 Face Fix Bar Design
5.08mm Pitch Pluggable Terminal Block with Fix Ear 5.08mm Pitch 300V 15A XS2ESDK-5.08 KF2EDGKAM-5.08 Face Fix Bar
5.08mm Pitch Pluggable Terminal Block with Fix Ear 5.08mm Pitch 300V 15A XS2EHDC-5.08 KF2EDGK-5.08 Angle Pin
5.08mm Pitch Pluggable Terminal Block with Fix Ear 5.08mm Pitch 300V 15A XS2EHDB-5.08 KF2EDGK-5.08 Straight Pin
Brass Right Angle Pin Plug-in 5.08mm Pitch, 300V 15A , Close Type,
PCB Terminal Block Socket XS2EHDF
Brass Straight Pin Plug-in 5.0mm 5.08mm Pitch 300V 15A , Close Type,
PCB Terminal Block Socket XS2EHDL
Brass Straight Pin Plug-in 5.0mm 5.08mm Pitch 300V 15A , Open Type,
PCB Terminal Block Socket XS2EHDV
Brass Right Angle Pin Plug-in 5.0mm 5.08mm Pitch 300V 15A , Open Type,
PCB Terminal Block Socket XS2EHDR
Plug-in PCB Terminal Block Connector Plug , Model: XS2ESDV, 300V, 15A , 5.0mm 5.08mm Pitch
Plug-in PCB Terminal Block Connector Plug , Model: XS2ESDA, 300V, 15A , 5.0mm 5.08mm Pitch
