20% off Multipurpose essential oil extractor

Multipurpose essential oil distillation equipment

This unit is popular in production of Chinese medicines, health products, Biological drugs, cosmetics and food, it use technology of biological and chemical separation, can extract Plant components efficiently by steam distillation, have good effect in collecting essential oil from plants.

The simple flow chart of essential oil production process

Herbs Essential Oil Distillers Main equipment

1, Extracting tank    2, Oil-water separator  3, Receiver  4, Oil cooling system  5, Plate distillation system

6, Vacuum system  7, Frame    8, Pipes    9, Valves    10, Digital temperature sensor.

GENYOND Herbs Essential Oil Distillers Advantage

1.  This equipment is made of SUS304 stainless steel with special frame.

2.  It has three layers SS Plate distillation system which can extract the oil efficiently.

3.  This machine equips Digital control system and Touch screen display control system .

4. Easy operation ,o ne people can operate this machine easily.

5. Compact structure ,i t covers only about 1.5 square meter.

6.  We can also make it according to your request .

Herbs Essential Oil Distillers Models for our small machine

Model	Capacity (L/3-4hr)	Power (KW/H)	Supply Power		Dimension(mm)
			Voltage	Phase	Length	Width	Height
EO-10	10	4.5	380/220	3	1300	550	1800
EO-20	20	5.5	380/220	3	1200	700	1700
EO-30	30	6	380/220	3	1300	800	1700
EO-40	40	7.3	380/220	3	1400	700	1800
EO-50	50	7.5	380/220	3	1600	850	1800
EO-60	60	8	380/220	3	1600	850	1850
EO-80	80	9	380/220	3	1700	850	1900
EO-100	100	12	380/220	3	1700	900	2100
EO-150	150	18	380/220	3	1800	900	2100
EO-200	200	25	380/220	3	1800	1000	2100
EO-300	300	38	380/220	3	1900	1000	2100
Note: Besides the above model, we also have 500L,1000L,1500L,2000L 3000L and above.

Raw material can be use to extract essential oil as below for reference:

Conventional plant mosaic: roses, osmanthus, Wild chrysanthemum, lavender, wormwood, rosemary, bloom, SJ, see the May grass, mint, thyme;

Plant roots: aloes, ginger, aloe vera, cloves, Atractylodes;

Plant fruit: passion fruit, pepper, castor bean, star anise, grape seed, lemon, Litsea, pine nuts.

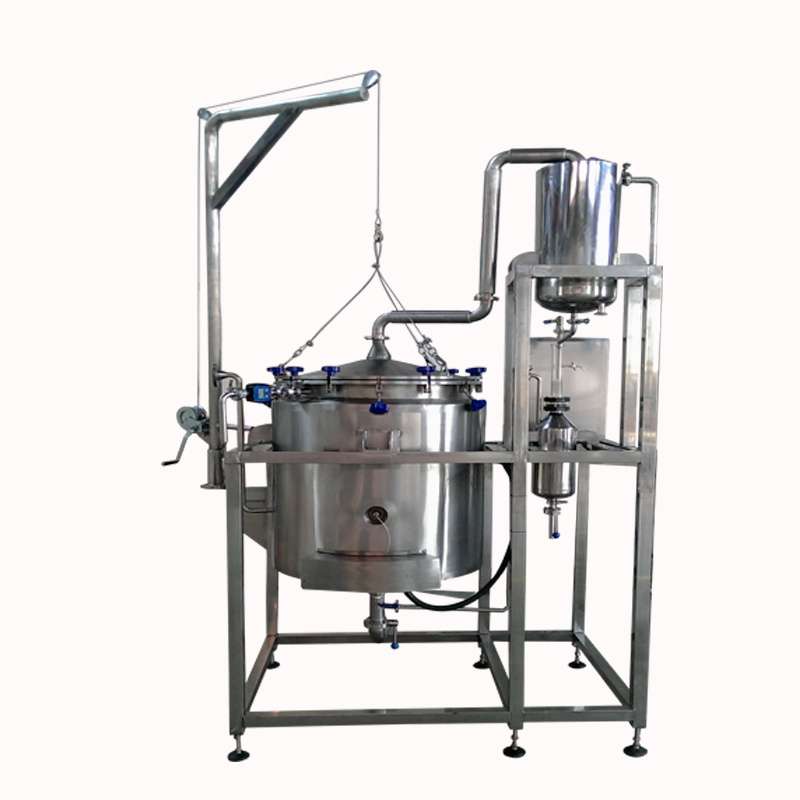

Herbs Essential Oil Distillers More pictures for reference

Package of  Herbs Essential Oil Distillers : wooden case package

PAYMENT: 30% as deposit and 70% before shipment.

DELIVERY: 30 days after the order confirmation, the receipt of the down-payment.

INSTALLATION:

1. We will assemble and test the machine before packing,and provide English manual.

2. If customer need, we will send one or two engineers for assembling and training of workers.The buyer shall bear the engineers round-trip tickets fees, basic accommodation and Transportation,the allowance shall be 70usd/day/person.

GUARANTEE: 12 months.

Please kindly inform us your requested processing capacity, raw material,so that

we can offer you accordingly based on your requirement.

We will stand at your point to suggest low cost and suitable production line for you.We s incerely want to cooperate with you.
