Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
OV Laser
-
Marking Head Brand:
-
OV Laser
-
Weight (KG):
-
50 KG
-
Marking Area:
-
110*110mm-300mm*300mm, 70mm*70mm--- 300mm*300mm
-
Core Components:
-
laser source
-
Mode of Operation:
-
Software
-
Configuration:
-
High configuration
-
Laser Source:
-
IPG, Raycus, JPT
-
Laser Head:
-
Galvanometer
-
Marking Speed:
-
7000mm/s
-
Laser Marking Depth:
-
0.01-1mm
-
Laser Wavelength:
-
1064nm
-
Fiber Laser Source Lifespan:
-
100,000hours
-
Applicable Materials:
-
Metal and some plastics
-
Power Supply:
-
220V/50HZ/1-PH or 110v/60HZ/1PH
-
Laser Power:
-
20W 30W 50W 60W 80W 100W
Quick Details
-
Working Accuracy:
-
0.001mm
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
OV Laser
-
Marking Head Brand:
-
OV Laser
-
Weight (KG):
-
50 KG
-
Marking Area:
-
110*110mm-300mm*300mm, 70mm*70mm--- 300mm*300mm
-
Core Components:
-
laser source
-
Mode of Operation:
-
Software
-
Configuration:
-
High configuration
-
Laser Source:
-
IPG, Raycus, JPT
-
Laser Head:
-
Galvanometer
-
Marking Speed:
-
7000mm/s
-
Laser Marking Depth:
-
0.01-1mm
-
Laser Wavelength:
-
1064nm
-
Fiber Laser Source Lifespan:
-
100,000hours
-
Applicable Materials:
-
Metal and some plastics
-
Power Supply:
-
220V/50HZ/1-PH or 110v/60HZ/1PH
-
Laser Power:
-
20W 30W 50W 60W 80W 100W
OV Laser Raycus JPT 30w 50w 60w 100w 200w mopa fiber laser marking machine deep engraving jewelry gold silver cutting metal 3D laser engraver Lightburn
Big Promotion Now!!!
For the latest price and more product information, please contact:
Contact: Wendy, Phone No.: +86 13307107836

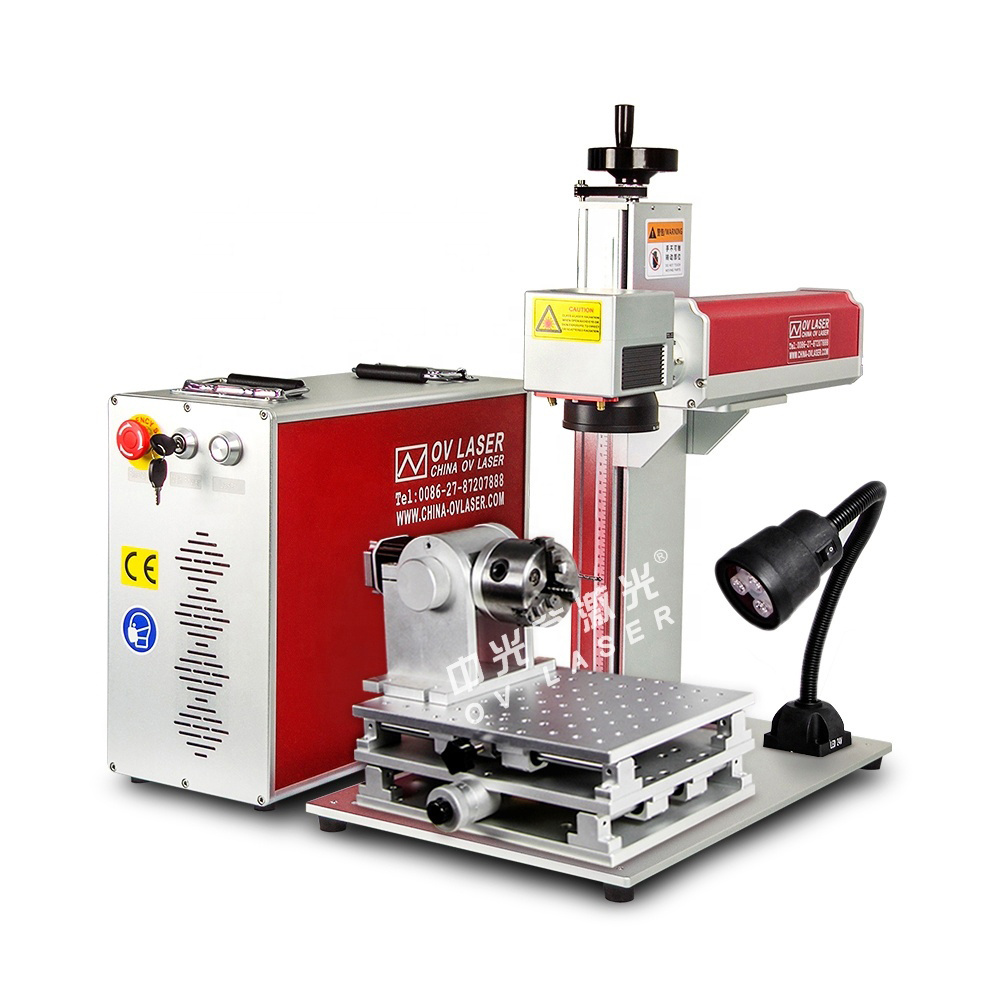

Fiber Laser marking machine:
Fiber laser marking engraving cutting machine is with wide application for marking logo, text, time, serial and part number, QR code, bar code, 2D code, bitmap, pictures and images on almost all metal and part of non-metal materials. It's flexible to work with electric XY moving table to get large-format engraving area, work with rotary fixture to mark cylinder objects too. It is applicable for engraving gold silver jewelry, firearm guns, knives, gift items, tumbler cups, pens, auto parts, metal tools and machinery parts etc.
Mopa laser is very popular now. It has wide frequency (1-4000kHz) and adjustable pulse width, which can have more possibilities for engraving more materials, and can mark colors on stainless steel and titanium, mark black on anodised aluminum.
We have Fiber Laser 30W 50W and JPT Mopa Laser 20W 30W 60W 100W 200W
Contact us for more prices and machine details .
Main Features:
1.
Marking Area
: 110*110 mm, 175*175 mm, 200*200 mm, 300*300 mm.
2.
Best Marking Effect
:
The laser beam is fine and thin to ensure best marking effect. Together with the stable precision slider, the fiber laser marker is especially good for large size seamless splicing image marking.
3.
Higher Accuracy
:
It can reach up to 0.001 mm precision.
4.
Long lifetime
:
100,000 hours for laser source .
5.
No consumption
except electricity.
6.
Air cooling
method.
7.
Free Maintenance
.
8.
Easy operation
:
Machine is assembled well. With detailed step-by-step manual & operation videos & a lot free parameters on various materials to help you use machine.
9. Free marking program EZCAD 2 , lightburn also compatible; EZCAD 3; 3D software.
10. Real factory + 8-year gold supplier on Alibaba + Free online training + Free lifetime technical support.
What you will get:
We produce small enclosed, big enclosed, desktop type, split type, portable type for Fiber /CO2 / UV laser marking engraving machine.
Jewelry Samples:
Metal & Plastic Samples:
Stone/ Slate Engraving:
Coin Engraving:
Marking Color by Mopa Laser:
We also have 2.5D and 3D machines for you to choose.
You can contact Wendy for more details and prices:
WhatsApp: +86 13307107836
2.5D / 3D Relief Engraving:
3D Curved Surface Engraving:
