Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Foneacc Motor
-
Model Number:
-
PG16-1625R
-
Torque:
-
up to 5 N.m
-
Motor type:
-
PMDC Planetary Gear coreless electric Motor
-
Power:
-
1W to 4W
-
shaft Diameter:
-
3 mm
-
Product Name:
-
PG16-1625 planetary geared motor
-
Gear Material:
-
Metal
-
Keywords:
-
1625R geared motor
-
Brush Type:
-
metal brush
-
Typical Applications:
-
Industrial automation,peristaltic pump, actuators
-
Direction of rotation:
-
CW and CCW
-
PCD:
-
11 mm
Quick Details
-
Speed(RPM):
-
5 RPM to 2500RPM
-
Continuous Current(A):
-
less than 3A
-
Efficiency:
-
IE 2
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Foneacc Motor
-
Model Number:
-
PG16-1625R
-
Torque:
-
up to 5 N.m
-
Motor type:
-
PMDC Planetary Gear coreless electric Motor
-
Power:
-
1W to 4W
-
shaft Diameter:
-
3 mm
-
Product Name:
-
PG16-1625 planetary geared motor
-
Gear Material:
-
Metal
-
Keywords:
-
1625R geared motor
-
Brush Type:
-
metal brush
-
Typical Applications:
-
Industrial automation,peristaltic pump, actuators
-
Direction of rotation:
-
CW and CCW
-
PCD:
-
11 mm

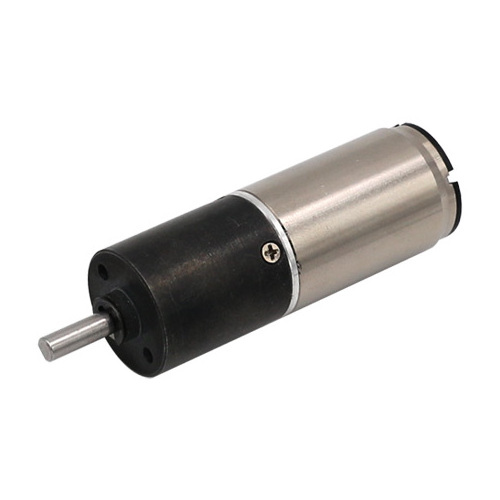

PG16-1625R compact planetary metal gear coreless electric motor diameter 16mm small epicyclic geared coreless dc motor
Main features:
|- Model: PG16-1625R;
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 1.5V, 3V, 6V, 9V,12V,24V;
|- Rated Torque: Max. 3.5 Kgf-cm ;
|- Size : Φ16* L TBD ;
|- Shaft : concentric driveshaft, Φ3mm D-cut 0.5mm, custom;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: Permanent Magnet coreless motor;
|- Encoder: Magnetic encoder;
|- MOQ: 500 pcs;
PG16-1625R metal dc geared motor data examples:
| Model | No load | Rated Load |
Breaking
Torque |
|
| Speed | Torque | Speed | ||
| r/min | kgf.cm | r/min | kgf.cm | |
| PG16-1625R-4.5V4K | 1950 | 0.03 | 1541 | 1.5 |
| PG16-1625R-4.5V5K | 1560 | 0.04 | 1232 | 1.5 |
| PG16-1625R-4.5V16K | 487.5 | 0.11 | 385 | 2 |
| PG16-1625R-4.5V19K | 410.5 | 0.14 | 324 | 2 |
| PG16-1625R-4.5V23K | 339.1 | 0.16 | 268 | 2 |
| PG16-1625R-4.5V64K | 121.9 | 0.39 | 96 | 3.5 |
| PG16-1625R-4.5V76K | 102.6 | 0.47 | 81 | 3.5 |
| PG16-1625R-4.5V90K | 86.7 | 0.55 | 68 | 3.5 |
| PG16-1625R-4.5V107K | 72.9 | 0.65 | 58 | 3.5 |
| PG16-1625R-4.5V256K | 30.5 | 1.31 | 24 | 3.5 |
| PG16-1625R-4.5V304K | 25.7 | 1.55 | 20 | 3.5 |
| PG16-1625R-4.5V361K | 21.6 | 1.84 | 17 | 3.5 |
| PG16-1625R-4.5V509K | 15.3 | 2.6 | 12 | 3.5 |
| PG16-1625R-12V4K | 3000 | 0.03 | 2790 | 1.5 |
| PG16-1625R-12V5K | 2400 | 0.04 | 2232 | 1.5 |
| PG16-1625R-12V16K | 750 | 0.11 | 698 | 2 |
| PG16-1625R-12V19K | 631.6 | 0.14 | 587 | 2 |
| PG16-1625R-12V23K | 521.7 | 0.16 | 485 | 2 |
| PG16-1625R-12V64K | 187.5 | 0.39 | 174 | 3.5 |
| PG16-1625R-12V76K | 157.9 | 0.47 | 147 | 3.5 |
| PG16-1625R-12V90K | 133.3 | 0.55 | 124 | 3.5 |
| PG16-1625R-12V107K | 112.1 | 0.65 | 104 | 3.5 |
| PG16-1625R-12V256K | 46.9 | 1.31 | 44 | 3.5 |
| PG16-1625R-12V304K | 39.5 | 1.55 | 37 | 3.5 |
| PG16-1625R-12V361K | 33.2 | 1.84 | 31 | 3.5 |
| PG16-1625R-12V509K | 23.6 | 2.6 | 22 | 3.5 |
Dimensions and configurations of PG16-1625R metal dc planetary gear motor for reference:
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
Other service we provide:
*** Motor Design for OEM and ODM ***
Foneacc Motor provides engineering and design services for OEM & ODM customers to develop custom motors based on their specific application requirements.
Generally, motor shell diameter and length is fixed values, volte, speed, torque, driveshaft shape and length could be customed free of charge. For big project shell diameter and length and other parameters can also be customized. Contact us for more info.
*** Product assembly and Global Motor Manufacturing and Sourcing ***
We also provide product assembly service, such as terminal soldering, product assembly, etc.
Whether built in our Shenzhen factory, or from elsewhere within our manufacturing network, we have boots on the ground overseas to reduce your supply chain costs while guaranteeing quality requirements are met or exceeded.
