Quick Details
-
Brand Name:
-
GEYA OEM ODM
-
Model Number:
-
GATS-W-63-2P
-
Rated Current:
-
16-100A
-
Frame current:
-
100
-
Product name:
-

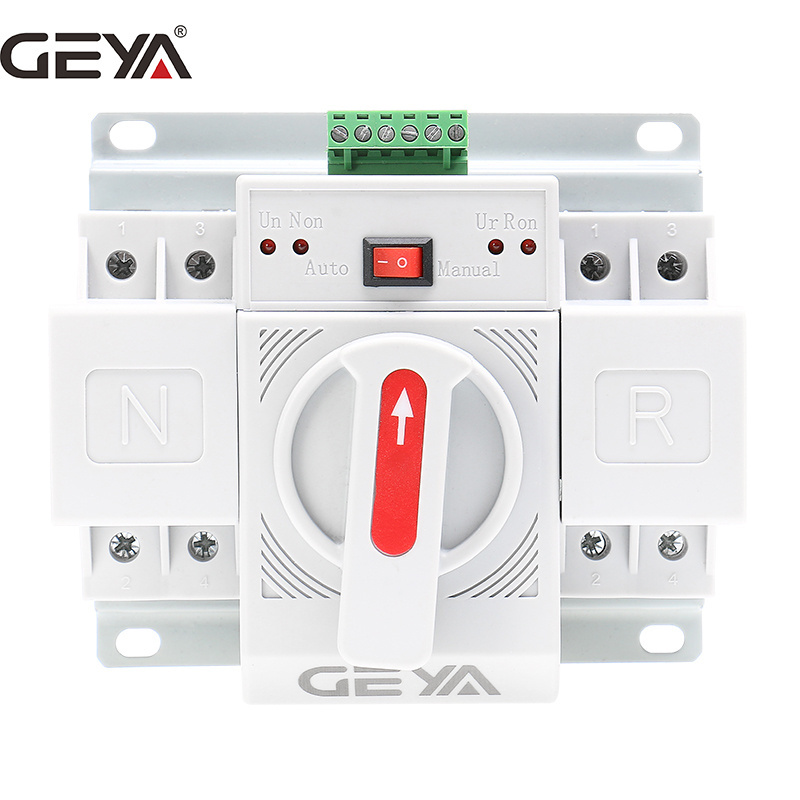

Dual Power Automatic Transfer Switch ATS
-
Insulation Voltage:
-
AC 690V
-
Rated Voltage:
-
AC 400V
-
Rated frequency:
-
50/60Hz
-
Rated current in:
-
16A 20A 25A 32A 40A 50A 63A 100A
-
Certificate:
-
CE ISO
-
Guarantee:
-
2years
-
Whether the smart:
-
Yes
-
Max. Current:
-
100A
-
Certification:
-
CE ISO CB ROHS
Quick Details
-
Type:
-
PC
-
Number of Pole:
-
2
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GEYA OEM ODM
-
Model Number:
-
GATS-W-63-2P
-
Rated Current:
-
16-100A
-
Frame current:
-
100
-
Product name:
-
Dual Power Automatic Transfer Switch ATS
-
Insulation Voltage:
-
AC 690V
-
Rated Voltage:
-
AC 400V
-
Rated frequency:
-
50/60Hz
-
Rated current in:
-
16A 20A 25A 32A 40A 50A 63A 100A
-
Certificate:
-
CE ISO
-
Guarantee:
-
2years
-
Whether the smart:
-
Yes
-
Max. Current:
-
100A
-
Certification:
-
CE ISO CB ROHS
············This link price is only for
GATS-W-63-2P ···········
Products Description
1.Main uses and scope of applicatio
-63 automatic transfer switch is a terminal type automatic transfer switching equipment newly developed by our company, applicable for three-phase four-wire (or one-phase one-wire)dual-supply power grid systems of AC 60Hz,rated voltage 400V/230V and rated current up to 63A. It transfers one or more load circuits to the other power supply when one of the power supplies goes wrong(it detects the A-phase voltage of normal power and A-phase voltage of reserve power only if there is no-voltage or open-phase), to ensure normal power supply for load circuits.
The products are in conformity with the standards IEC60947-6-1 and GB/'T14048.11.
-63 automatic transfer switch is a terminal type automatic transfer switching equipment newly developed by our company, applicable for three-phase four-wire (or one-phase one-wire)dual-supply power grid systems of AC 60Hz,rated voltage 400V/230V and rated current up to 63A. It transfers one or more load circuits to the other power supply when one of the power supplies goes wrong(it detects the A-phase voltage of normal power and A-phase voltage of reserve power only if there is no-voltage or open-phase), to ensure normal power supply for load circuits.
The products are in conformity with the standards IEC60947-6-1 and GB/'T14048.11.
Packing List
|
Items
|
Specifical
|
PCS/CTN
|
Item Size
(CM) |
Carton Size
(CM) |
K.W.
(KG) |
N.W.
(KG) |
|
|
|
|
|
|
|
|
|
GATS-W-63/2P 220V
|
6-63A
|
12
|
15*13.2*12
|
44.5*35*29
|
17.50
|
14.64
|
|
GATS-W-63/3P 220V
|
|
8
|
22*13.2*12
|
47*31.5*29
|
13.50
|
11.36
|
|
GATS-W-63/4P 220V
|
|
8
|
22*13.2*12
|
47*31.5*29
|
15.00
|
12.96
|
