Quick Details
-
Length:
-
Max 6000mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Besca
-
Model Number:
-
BM5-50Z
-
Side Rail Height:
-
50-200mm
-
Max. Working Load:
-
Depends
-
Certificates:
-
CE, NEMA, UL
-
Product Name:
-
BESCA WIRE MESH CABLE TRAY
-
Surface Finish:
-
Electro Zinc Plated
-
Color:
-
Silver
-
Raw material:
-
Q235B
-
Finish:
-
Pre-galvanized (Z80 - Z275)/Powder Coating
-
Product type:
-
WIRE MESH
-
Export Range:
-
Overseas
-
Thickness:
-
4mm or 5mm
-
Application:
-
Projects
Quick Details
-
Type:
-
Wire Mesh
-
Material:
-
Steel
-
Width:
-
50-900mm
-
Length:
-
Max 6000mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Besca
-
Model Number:
-
BM5-50Z
-
Side Rail Height:
-
50-200mm
-
Max. Working Load:
-
Depends
-
Certificates:
-
CE, NEMA, UL
-
Product Name:
-
BESCA WIRE MESH CABLE TRAY
-
Surface Finish:
-
Electro Zinc Plated
-
Color:
-
Silver
-
Raw material:
-
Q235B
-
Finish:
-
Pre-galvanized (Z80 - Z275)/Powder Coating
-
Product type:
-
WIRE MESH
-
Export Range:
-
Overseas
-
Thickness:
-
4mm or 5mm
-
Application:
-
Projects
Besca manufacturing unit is well equipped with an in house design unit well supported by a CAD/CAM facility ensuring in customizing our range as per the latest design and specifications of our clients. Further, we regularly update our range of machines so as to keep ourselves abreast of the current changes and trends in the industry.
From now on ,we have the belows machines to ensure the customized capacity;
Drilling Machines
Grinding Machines
Cutting Machines
Welding Machines
Galvanized Insulated Pipe Clamp Official Certificates Worldwide
Besca has been certified by ISO9001 in China, UL in U.S.A and CE in E.U. with professional design and extremely well production techniques. These certifications are Besca's first step into the International market.
Insulated Pipe Clamp For Greenhouse Production Flow Strictly Managed
Besca Factory has various types of CNC machines, high quality modeling machines, processing equipment, which provides the most powerful guarantee for high quality products.
Quality Traceability System Maintained
In order to serve high quality products, it is essential to test the manufactured products before delivery. In this session, Besca develops the most stringent testing procedures, and trains factory inspectors besides its already high level product inspection equipment.

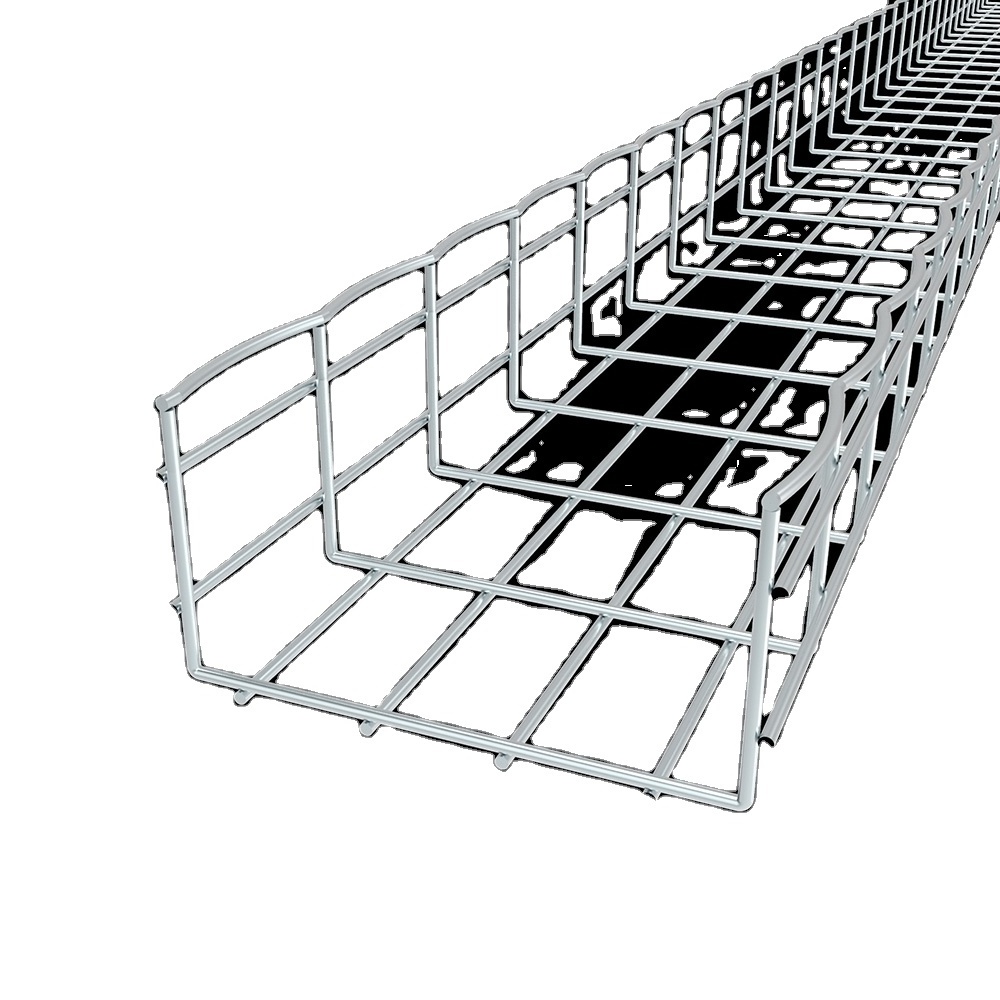

The detailed images of our product wire mesh cable tray
Presentation of wire mesh cable tray
Material of wire mesh cable tray
Q235B Steel (Chinese standard steel), SS304, SS316
Surface Finish of wire bask
et cable tray
Electro zinc plated – for indoor use to BS EN 12329-2000, 12microns thick.
Hot Dipped Galvanized – for outdoor use to BS EN 1461-1999, between 60 and 80 microns thick
Electrolytic Polishing – for stainless steel use
Dimensions of wire mesh cable tray
Cable Tray dimensions are all internal.
Depth of 50mm, 100mm &150mm
Widths of 50mm, 100mm, 150mm, 200mm, 300mm, 400mm, 450mm, 500mm & 600mm.
Length of 2997 fit max loading capacity in 40'ft containers.
Wire Mesh Cable Trays are constructed with a 50mm x 100mm mesh configuration. Diameters of wires are 5.0mm
Installation Notice of wire mesh cable tray
Bends, Risers, T Junctions, Crosses & Reducers can be made from wire mesh cable tray straight sections flexibly in projects.Trays shall be supported at a maximum span of 2.5 m by trapeze, wall, floor or channel mounting methods and will not exceed maximum loads as specified by the manufacturer. Wire Mesh Cable Tray systems can be safely employed in places where the temperature ranges between -40°C and +150°C without any change to their characteristics.
Application of wire basket cable tray
Wire Mesh Cable Trays are mainly used for low voltage,
telecommunication, and fiber optic cables supported on short spans.
Features & Advantages of wire mesh tray
All sharp ends are cut off to protect cables. Weight loading capacity is 27% stronger than traditional cable trays and cable ladders.
Packaging Details:
Standard export packing or according to customer's requirement
Delivery Detail:
10-30days(normal)or according to order
