Quick Details
-
Filling Accuracy:
-
99.9%
-
Voltage:
-
Customized
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DATONG
-
Dimension(L*W*H):
-
2200X2100X2200MM
-
Weight:
-
3500 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-

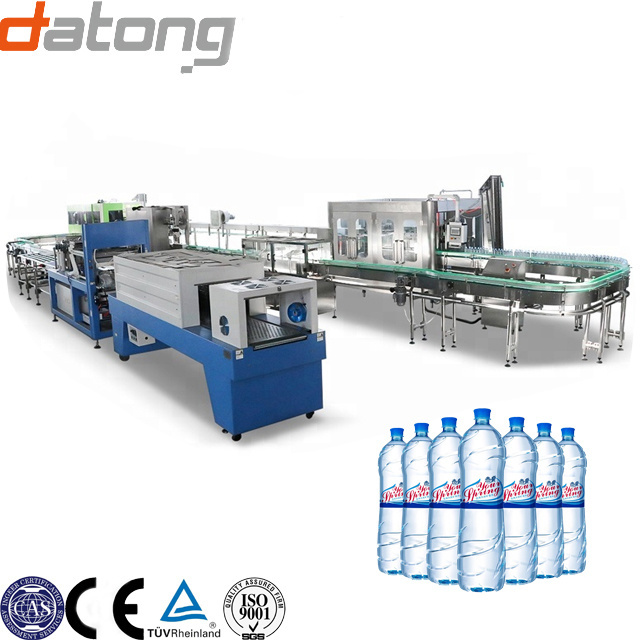

water production line
-
Function:
-
Washing Filling Capping
-
Processing Types:
-
Automatic Bottle Filling Sealing Machine
-
Usage:
-
Beverage Packaging
-
Filling material:
-
Flowing Liquid
-
Material:
-
Stainless Steel
-
Bottle type:
-
PET Plastic Bottle
-
Marketing Type:
-
New Product 2020
Quick Details
-
Machinery Capacity:
-
6000BPH
-
Packaging Material:
-
Plastic
-
Filling Material:
-
Water
-
Filling Accuracy:
-
99.9%
-
Voltage:
-
Customized
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DATONG
-
Dimension(L*W*H):
-
2200X2100X2200MM
-
Weight:
-
3500 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
water production line
-
Function:
-
Washing Filling Capping
-
Processing Types:
-
Automatic Bottle Filling Sealing Machine
-
Usage:
-
Beverage Packaging
-
Filling material:
-
Flowing Liquid
-
Material:
-
Stainless Steel
-
Bottle type:
-
PET Plastic Bottle
-
Marketing Type:
-
New Product 2020
Products Description
By 3-in-1 monoblock ,the bottle goes through washing,filling and capping with little abrasion,and the transferring isstable,bottle changing is easier. Specially designed stainless steel bottle gripper dose not contact the thread parts of the bottle neck,avoiding the second contamination. High speed and mass flow filling valve ensures the high filling speed and exact fluid level.parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic.
*
CGF series bottled water filling machine line is used to filling mineral water or purified water into PET bottle from
200ml-2000ml. Inside the three-in-one unit, three processes of bottle washing, filling and sealing are completed at one time. The bottle Production capacity can be reached 2000-30000BPH,It suitable for PET bottle, plastic bottle filling mineral water and pure water.
200ml-2000ml. Inside the three-in-one unit, three processes of bottle washing, filling and sealing are completed at one time. The bottle Production capacity can be reached 2000-30000BPH,It suitable for PET bottle, plastic bottle filling mineral water and pure water.
|
Model
|
CGF14-12-5
|
CGF16-16-6
|
CGF18-18-6
|
CGF24-24-8
|
CGF32-32-10
|
CGF40-40-12
|
CGF50-50-15
|
CGF60-60-15
|
|||||||
|
Production Capacity(b/h)
|
2000-3500
|
3500-5000
|
5000-7000
|
7000-12000
|
12000-15000
|
15000-20000
|
20000-24000
|
24000-30000
|
|||||||
|
Suitable bottle shape
|
Circular or square
|
|
|
|
|
|
|
|
|||||||
|
Bottle diameter (mm)
|
50-95
|
|
|
|
|
|
|
|
|||||||
|
Bottle height (mm)
|
150-310
|
|
|
|
|
|
|
|
|||||||
|
washing medium
|
aseptic water
|
|
|
|
|
|
|
|
|||||||
|
Total power (kw)
|
3
|
3.5
|
4
|
5.5
|
7.5
|
11
|
15
|
20
|
|||||||
|
weight(kg)
|
2200
|
2800
|
3000
|
4500
|
6000
|
9000
|
15000
|
18000
|
|||||||
|
Overall dimensions (mm)
|
2050*1550*2200
|
2400*1750*2200
|
2550*1850*2200
|
3000*2150*2200
|
4200*2700*2400
|
4700*3200*2400
|
6500*3350*2400
|
7200*3650*2600
|
|||||||
Details Images
Washing Part
*
304stainless steel rinse heads, water spray style inject design, more save water consumption and more clean
*The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution
*The rinse is driven by driving system positioned inside machine frame via gear transmission.
Filling Part
*The filler is designed and manufactured with application of Italy technology, providing hardware guarantee for securing product quality and reducing loss.
*Rotary wheel are fully made of stainless steel SS304.
*Filling valves are designed and manufactured with German technology, made of SS304, featu
ring high filling accuracy and high filling speed.
Capping Part
*The capping system applies advanced French technology,when clamp the cap will screw immediately and magnetic torque type capping head,
The cover track has the device to prevent the reversal cover from passing and pick out the reversal cover. Meanwhile the photoelectric switch can stop the machine automatically when there is no cover on the track, by which it can avoid bottle without cover effectively.
