Quick Details
-
Brand Name:
-
WELIFTRICH
-
Fork Length:
-
1150mm, 1150mm
-
Fork Width:
-
565/685mm, 565/685mm
-
Overall Dimensions:
-
1600*790*1400MM
-
Weight (KG):
-
300 kg
-
Product Name:
-

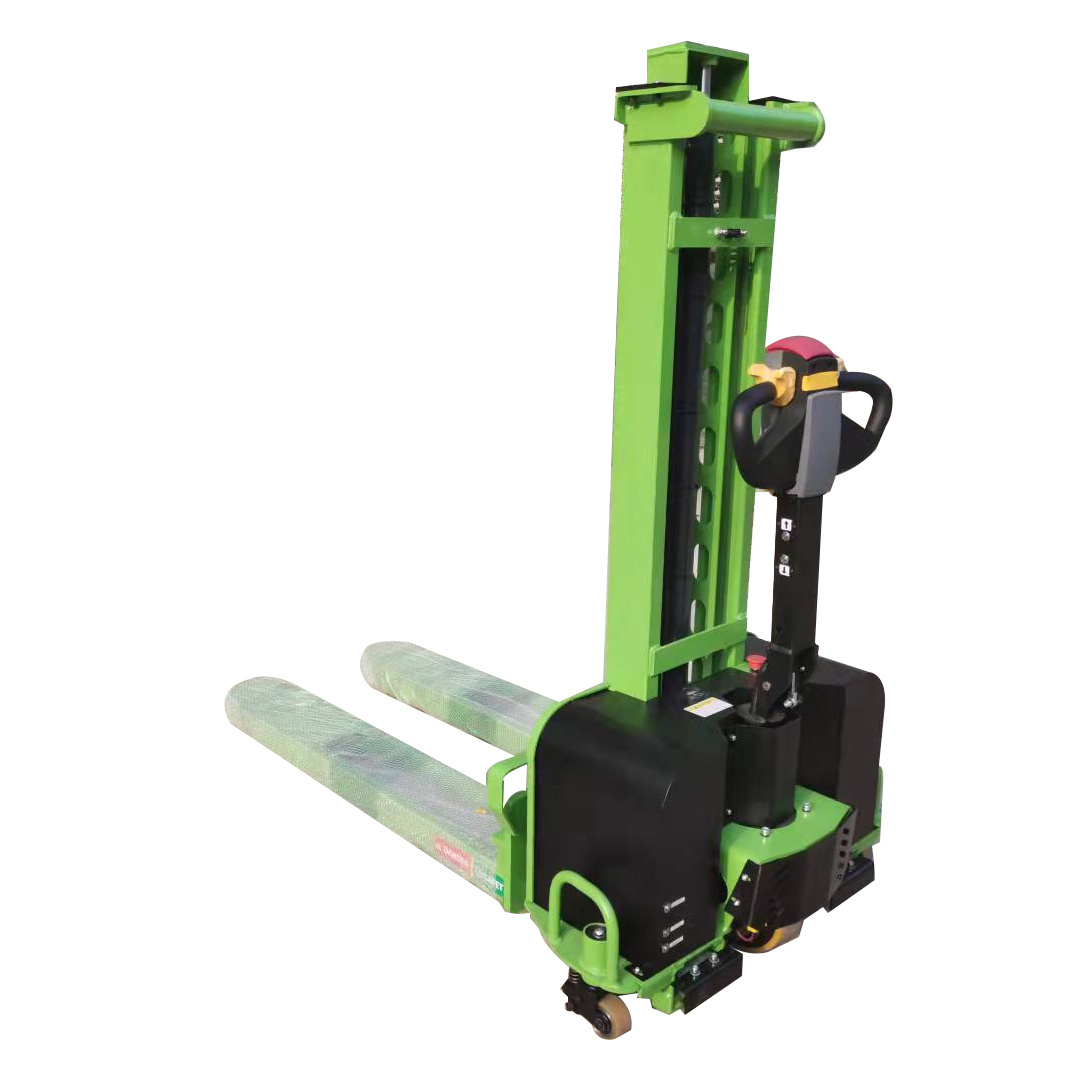

Full electric self-loading stacker
-
Max. lifting height:
-
1300mm
-
Certification:
-
CE/ISO
-
After-sales Service Provided:
-
Online Support
-
Battery Volume:
-
12V/45Ah
-
Color:
-
Customized Color
Quick Details
-
Min. Lifting Height:
-
85mm, 85 mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
WELIFTRICH
-
Fork Length:
-
1150mm, 1150mm
-
Fork Width:
-
565/685mm, 565/685mm
-
Overall Dimensions:
-
1600*790*1400MM
-
Weight (KG):
-
300 kg
-
Product Name:
-
Full electric self-loading stacker
-
Max. lifting height:
-
1300mm
-
Certification:
-
CE/ISO
-
After-sales Service Provided:
-
Online Support
-
Battery Volume:
-
12V/45Ah
-
Color:
-
Customized Color
Product Description
OPERATION STEP
DETAILS
PARAMETERS
| ZTS-10F | |||||||
| Model | ZTS-10F | ||||||
| Performanc | Maximum load capacity | kg | 1000 | 1000 | 1000 | 1000 | 1000 |
| with load center at | mm | 400 | 400 | 400 | 400 | 400 | |
| Weight (with battery) | kg | 436 | 440 | 448 | 456 | 464 | |
| Maximum lifting height | mm | 800 | 900 | 1100 | 1300 | 1500 | |
| Lifting speed (without load) | mm/s | 140 | 140 | 140 | 140 | 140 | |
| Lifting speed (with load) | mm/s | 135 | 135 | 135 | 135 | 135 | |
| Lowered speed (without load) | mm/s | 140 | 140 | 140 | 140 | 140 | |
| Lowered speed (with load) | mm/s | 145 | 145 | 145 | 145 | 145 | |
| Overall length of frame | mm | 1658 | 1658 | 1658 | 1658 | 1658 | |
| Dimensions | Overall width of frame | mm | 900 | 900 | 900 | 900 | 900 |
| Mast lowered height | mm | 1158 | 1258 | 1458 | 1658 | 1678 | |
| Max height(mast lifted with backrest | mm | 2375 | 2475 | 2675 | 2875 | 3075 | |
| Wheelbase | mm | 985 | 985 | 985 | 985 | 985 | |
| Fork length | mm | 1188 | 1188 | 1188 | 1188 | 1188 | |
| Fork outside width | mm | 680 | 680 | 680 | 680 | 680 | |
| Fork inside width | mm | 270 | 270 | 270 | 270 | 270 | |
| Fork thickness | mm | 80 | 80 | 80 | 80 | 80 | |
| width of theoretical minimum aisle for right-angle stacking (1200x1000) | mm | 1500 | 1500 | 1500 | 1500 | 1500 | |
| Min frounf height | mm | 20 | 20 | 20 | 20 | 20 | |
| Fork lowered height | mm | 90 | 90 | 90 | 90 | 90 | |
| Minimum turning radius | mm | 1300 | 1300 | 1300 | 1300 | 1300 | |
| Tire | Front wheel | mm | 80*50 | 80*50 | 80*50 | 80*50 | 80*50 |
| Motor | Type or drive motor | DC | |||||
| Rated output | KW | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | |
| Lifting motor | DC | ||||||
| Rated output | kw | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | |
| Battery | Voltage | V | 24 | 24 | 24 | 24 | 24 |
| Capacity | AH | 45 | 45 | 45 | 45 | 45 | |
| Model | ZTS05F ZTS07F | ZTSO5 | |
| Capacity | Q(Kg) | 500 | 500 |
| Load center | C(mm) | 400 | 400 |
| Type of lifting | Electric | Electric | |
| Operating type | Walkie | Walkie | |
| Material | PU/Nylon | PU/Nylon | |
| Wheel base | y(mm) | 860 | 860 |
| Front wheel base | b11(mm) | 380 | 380 |
| Backwheel base | b10(mm) | 670 | 670 |
| Quantity Steering/Bearing/Balance | 2002-2-6 | 2002-2-6 | |
| Bearing wheel size | mm | 70x60 | 70x60 |
| Steering wheel size | mm | 100x50 | 100x50 |
| Balance wheel size | mm | 40x26 | 40x26 |
| Training wheel size | mm | 30x26 | 30x26 |
| Min. fork height | mm | 90 | 90 |
| Max. fork height | h3(mm) | 1100 | 1300 |
| Fork outside width | [mm | 535, | 535 |
| Fork inside width | mm | 225 | 225 |
| Fork length | 12(mm) | 1150 | 1150 |
| Single fork size | e/s(mm) | 155/60 | 155/60 |
| Overall length | L1(mm) | 1600 | 1600 |
| Overall width | b1(mm) | 790 | 790 |
| Overall height | h1(mm) | 1400 | 1600 |
| Whole height (after tape file | h4(mm) | 2700 | 2900 |
| Min. turning radius | Wa(mm) | 1100 | 1120 |
| Lifing speed (laden/unladen) | mm/s | 80/110 | 80/110 |
| Lowering speed(laden/unladen) | mm/s | 80/80 | 80/80 |
| Lift motor | Kw | 12V0.8 | 12V0.8 |
| Battery capacity | VIAh | 12/45 | 12/45 |
| Battery weight | Kg | 10 | 10 |
| Net weight | Kg | 197 | 219 |
