Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Dingxie
-
Voltage:
-
220/440V
-
Dimension(L*W*H):
-
2060x1730x2580mm
-
Weight (KG):
-
700 kg
-
HS Code:
-
8474802000
-
PLC Control System:
-
Siemens
-
AC Contactor:
-
Schneider
-
Workshop Area:
-
250-300m2
-
Motor:
-
Siemens or ABB
-
Product Name:
-
Hydraulic Pressure Block Making Machine
-
Installation:
-
free
-
Rated Pressure:
-
21MPa
-
Cycle:
-
15-18 Seconds for One Sheet
-
After Warranty Service:
-
Video technical support
Quick Details
-
Type:
-
Hollow Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine
-
Brick Raw Material:
-
Concrete and cement
-
Production Capacity (Pieces/8 hours):
-
15360-100800
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Dingxie
-
Voltage:
-
220/440V
-
Dimension(L*W*H):
-
2060x1730x2580mm
-
Weight (KG):
-
700 kg
-
HS Code:
-
8474802000
-
PLC Control System:
-
Siemens
-
AC Contactor:
-
Schneider
-
Workshop Area:
-
250-300m2
-
Motor:
-
Siemens or ABB
-
Product Name:
-
Hydraulic Pressure Block Making Machine
-
Installation:
-
free
-
Rated Pressure:
-
21MPa
-
Cycle:
-
15-18 Seconds for One Sheet
-
After Warranty Service:
-
Video technical support

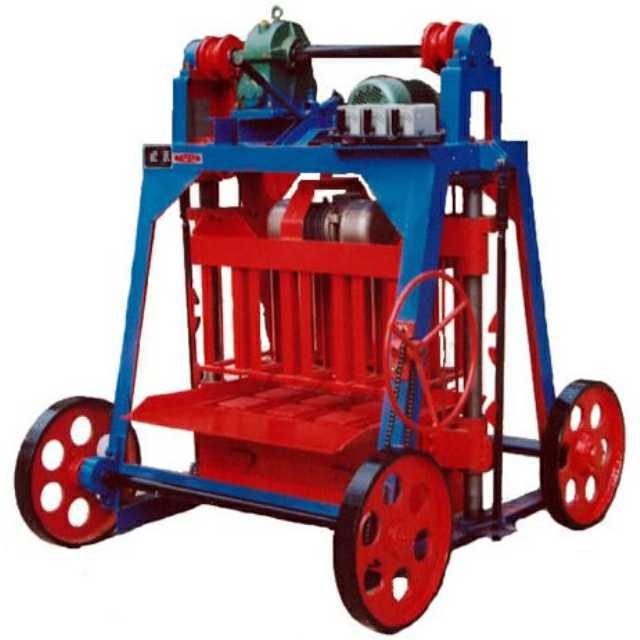

Movable Manual Brick Laying Block Making Machines For Cement Block machine Price Philippines in 2022
1. Hydraulic Pressure Block Making Machine
2.QMD6-15(A) Hydraulic Pressure Block Making Machine
Technical parameter
| Overall size | 5300*2050*2700mm | Host machine power | 56KW | Molding period | 12-20S |
| Pallet Size | 1100×850×25mm | Vibration Force | 90-110KN | Pallet quantity | 1500pcs |
3.
Theoretical workshop area :200m
2
, Need about 3-4workers.
office.curing and stacking area to arrange according to demands
4.QT10-15 concrete block making machine production capacity
| Size(mm) | Pcs/Mould | Pcs/ Hr | Pcs/ 8 Hr |
| 450*225*225mm | 10PCS | 2400 | 19200 |
| 200*100*80mm | 33PCS | 5400 | 43200 |
| 200*100*60mm | 33PCS | 5400 | 43200 |
| 400*150*225mm | 16pcs | 3840 | 30720 |
|
1.We can design mould as per client requests
2.Capacity above is indicative only,The actual capacity varies with operator efficiency and material quality etc |
|||
5.Raw material formula
1.Cement :8%-10% sand:30%-40% small chips:50-60%
2.Sand:60% fly ash :30% cement:8-10% lime:2%
3.Color material formula:50kgs cement,100kgs sand ,3kgs color material
Remark:the formula varies as per the local raw material quality.
6.Block curing
The block can be taken offer pallet after 18-24hours.In hot place like middle east,blocks can be
taken after several hours
In the first 3-5 days,spray water on the block.Then dry the block for 10-15 days.The block is done.
The blocks can be finished product after 9 hours if there is curing room
