Quick Details
-
Brand Name:
-
ALD
-
Model Number:
-
10mm
-
Surface Treatment:
-
thread
-
Product name:
-
grp fiberglass rebar
-
Color:
-
white Black Blue
-
Material Sources:
-
Glass Fiber Reinforced Plastics
-
Finish:
-
Galvanized.yellow Zinc Plated
-
Surface treatment:
-
Thread, Anti-static/thread / sand-coated /customized
-
Size:
-
Accept Customized
-
Grade:
-
4.8/ 6.8/ 8.8/ 10.9/ 12.9
-
Packing:
-
Bundle with pallet
-
Name:
-
Frp rebar production line
Quick Details
-
Application:
-
ore,building, Construction, mining,tunnel,slope,sea wall
-
Technique:
-
Pultrusion
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ALD
-
Model Number:
-
10mm
-
Surface Treatment:
-
thread
-
Product name:
-
grp fiberglass rebar
-
Color:
-
white Black Blue
-
Material Sources:
-
Glass Fiber Reinforced Plastics
-
Finish:
-
Galvanized.yellow Zinc Plated
-
Surface treatment:
-
Thread, Anti-static/thread / sand-coated /customized
-
Size:
-
Accept Customized
-
Grade:
-
4.8/ 6.8/ 8.8/ 10.9/ 12.9
-
Packing:
-
Bundle with pallet
-
Name:
-
Frp rebar production line
Product Description
FRP REBAR
FRP (Fiberglass Reinforced Polymer) Rebar is a spiral wrapped structural reinforcing rod made from a combination of fiberglass roving and resin. FRP Rebar has been developed as a non-corrosive alternative to steel in concrete reinforcement and is suitable for any structural or architectural application where a material that is corrosion resistant, lightweight or non-conductive is required.
BENEFITS
FRP Rebar Offers Many Benefits Over Standard Steel Rebar:
• Lightweight (1/4 the Weight vs. Steel Rebar)
• Non-Corrosive & Unsusceptible to Chemical Attack
• Radar Transparent
• Electrically & Thermally Non-Conductive
APPLICATIONS
• Concrete Susceptible to Corrosion
• Tunneling & Mining
• Building & Historic Preservation
• Exposure of Concrete to De-Icing Chlorides
• Masonry Strengthening
• Exposure of Concrete to Marine Chlorides
• Exposure of Concrete to High Voltages & Electromagnetic Fields
Specification
|
diameter (mm)
|
Weight per meter(kg)
|
Meters per ton
|
tensile strength Mpa
|
|
8
|
0.1
|
10000
|
≥750
|
|
10
|
0.15
|
6666
|
≥750
|
|
12
|
0.2
|
4762
|
≥750
|
|
14
|
0.28
|
3572
|
≥750
|
|
16
|
0.32
|
3125
|
≥600
|
|
18
|
0.43
|
2326
|
≥600
|
|
20
|
0.55
|
1819
|
≥600
|
|
22
|
0.61
|
1640
|
≥600
|
|
25
|
0.95
|
1053
|
≥600
|
|
28
|
1.15
|
870
|
≥600
|
|
30
|
1.36
|
735
|
≥600
|
|
32
|
1.51
|
663
|
≥600
|
|
34
|
1.71
|
584
|
≥600
|
|
36
|
1.91
|
524
|
≥600
|
Appearance:uniform texture,no bubbles,cracks and other defects affecting strength
Length deviation:±10mm , Diameter deviation:±1,mm
Strainghtening of rod body:≤3mm/m , Ultimate strain:≥1.2 , elastic modulus:≥40Gpa
The FRP rebar produced by aoliande is the full-threaded fiberglass rod made of high-performance glass fiber material, resin matrix and curing agent, etc with a certain proportion.
Due to the similar performance, it has been regarded as the replacement of steel bars.The All-Thread GFRP bolt was developed for strata support in mining and tunneling as well as for slope and face stabilization.
Details Images
|
Product Name
|
Glass fiber reinforced rebar
|
|
Material
|
Fiberglass plastic, expoy resin, curing agent
|
|
Product features
|
Light weight, intensile strength, corrosion resistance, non-magnetic, easy to cut, no electricity, no heat conduction and no rust
ect. |
|
Product specifications
|
Diameter: φ8—φ40 Length: Customized (Normal: 1.4m-2,6m)
Shape: Customized |
|
Product parameters
|
Tensile strength ≥ 600-1000MpaShear strength ≥ 110Mpa
Elastic modulus ≥ 40Gpa Density 1.9 g/cm3 ~ 2.2 g/cm3 |
|
Certification
|
ISO9001, CE
|
|
Colors
|
Customized (Normal:Black,Yellow)
|
|
Sample
|
Free (Not bear the freight cost)
|
|
Packaging
|
Bulled on the pallet with stretch film
|

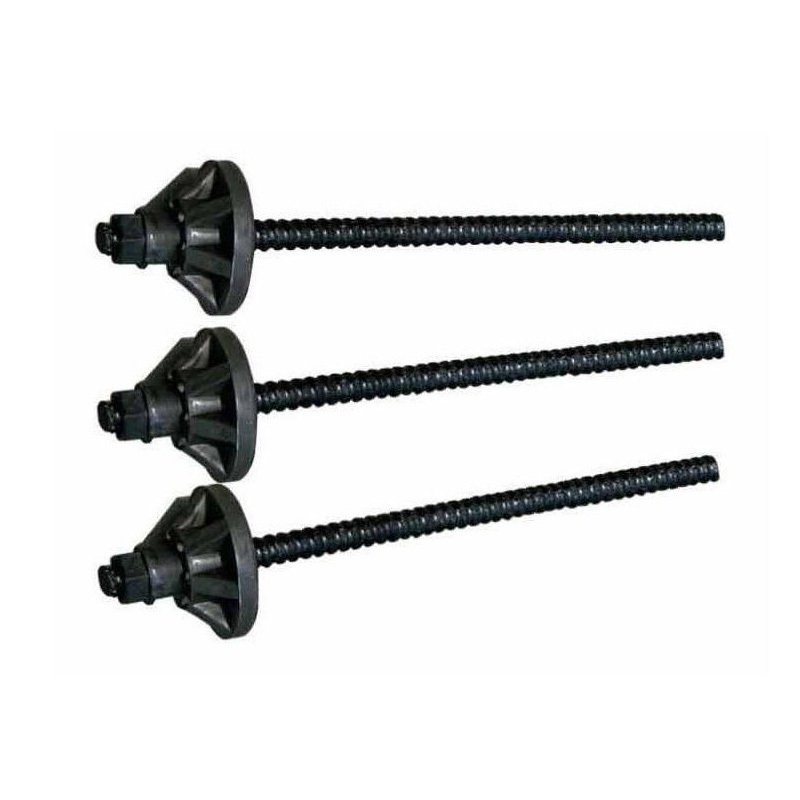

(1)All-Thread FRP Bolt:
The rod is threaded over the whole length, i.e. "All-Thread";
(2)High Corrosion Resistance
:The base materials used by the bolt are durable materials, and they are molded through the composite process. The life span is up to 100 years. They can be used as permanent support materials;
(3)High Tensile Strength:
The load is approximately double that of a steel bar with the same diameter;
(4)Low Weight
:The weight is only 1/4 that of a steel bar with the same diameter. Therefore, the labor intensity is greatly reduced, and the transportation cost is reduced at the same time;
(
5)Anti-static:
It has no electrical conductivity, and no sparks will be produced when being cut. It is particularly suitable for high gas zones;
(6)Non-flammable:
It is non-flammable and has high thermal isolation;
(7)Cuttability:
It avoids damages to cutter heads, and does not delay excavation;
As the replacement of steel bars, it has better performance and suitable for so many of fields.
Tensile strength ≥750-1000Mpa,
shear strength ≥ 90-110Mpa, elastic modulus ≥ 40-60Gpa, ultimate strain ≥ 1.2
Tensile strength ≥750-1000Mpa,
shear strength ≥ 90-110Mpa, elastic modulus ≥ 40-60Gpa, ultimate strain ≥ 1.2
Glass fiber reinforcement has been widely used in many fields which is decided by the characteristics of glass fiber reinforcement.
Widely used in subway tunnels (shield), subway continuous walls, retaining piles, coastal engineering, tunnel new construction, pavement deck pavement, airport, dock, station, foundation pit construction, cement products and other fields.
1.The application of glass fiber reinforcement in bridge and road engineering is to solve the problem of corrosion of reinforcement
2.The application of glass fiber reinforcement in concrete structure in offshore area can avoid chloride ion corrosion and reduce the damage of revetment pile, bearing pile and sheet pile.
