- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Geshem/OEM/ODM
-
Model Number:
-
GD-DH1519R
-
Operating System:
-
Windows 10/ Linux (J1900 also support Win7)
-
Processor Type:
-
Intel Celeron/Core
-
Chipset Type:
-
Intel
-
Warranty:
-
1 Year
-
Memory:
-
J1900 2GB ,up to 8GB 3855U/3865U/Core i3/i5/i7 2GB DDR4, up to 16GB
-
Storage:
-
SSD 64GB up to 512GB
-
Interface:
-
6*COM+4*USB +2*RJ45+1*MiniPCIE+1*HDMI+1*GPIO
-
Power supply:
-
Support DC9~36V Wide Voltage
-
Product name:
-
Industrial Touch Screen Panel Pc
-
Touch screen:
-
Multi-Point Capacitive touch
-
Accessory:
-
VESA mounting/Embedded mounting
-
IP Level:
-
Front panel IP65
Quick Details
-
Display resolution:
-
1920x1080
-
Hard Drive Type:
-
SSD
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Geshem/OEM/ODM
-
Model Number:
-
GD-DH1519R
-
Operating System:
-
Windows 10/ Linux (J1900 also support Win7)
-
Processor Type:
-
Intel Celeron/Core
-
Chipset Type:
-
Intel
-
Warranty:
-
1 Year
-
Memory:
-
J1900 2GB ,up to 8GB 3855U/3865U/Core i3/i5/i7 2GB DDR4, up to 16GB
-
Storage:
-
SSD 64GB up to 512GB
-
Interface:
-
6*COM+4*USB +2*RJ45+1*MiniPCIE+1*HDMI+1*GPIO
-
Power supply:
-
Support DC9~36V Wide Voltage
-
Product name:
-
Industrial Touch Screen Panel Pc
-
Touch screen:
-
Multi-Point Capacitive touch
-
Accessory:
-
VESA mounting/Embedded mounting
-
IP Level:
-
Front panel IP65
Details Images
Specification
|
Display
|
|
|
|
Screen
|
15.6" TFT LCD
|
|
|
Resolution
|
1920*1080
|
|
|
Brightness
|
300 cd/m2
|
|
|
Contrast
|
800:1
|
|
|
Touchscreen
|
Multi-point Capacitive touch
|
|
|
Performance
|
|
|
|
Chipset
|
Intel® Celeron J1900/3855U/3865U/Core I3/I5/I7
|
|
|
RAM
|
J1900 Standard 2GB DDR3，up to 8GB
3855U/3865U/Core i3/i5/i7 Standard 2GB DDR4, up to 16GB |
|
|
Hardware Monitor
|
Monitors voltage, CPU, TEMP
|
|
|
Watch dog Timer
|
0-255 sec by software
|
|
|
Storage
|
SSD 64GB, up to 512GB
|
|
|
Power Supply
|
|
|
|
Power Supply
|
9-24V DC （Standard 12V/5A adaptor, 9-36V DC optional）
|
|
|
OS
|
|
|
|
OS
|
Windows 10、Linux (J1900 also support Win7)
|
|
|
IO Port
|
|
|
|
USB
|
J1900:3*USB2.0+1*USB3.0
3855U/3865U/Core6th/7th：4*USB 3.0 |
|
|
Ethernet
|
2* GbE LAN RJ45 1000M
|
|
|
COM
|
6*RS232 (1~2*RS485/RS422 optional)
|
|
|
Audio
|
1*Line-out+1*Mic-in
|
|
|
Display
|
1*VGA，1*HDMI
|
|
|
Mini PCIe
|
1*MiniPCIe(WIFI/BT/3G/4G optional)
|
|
|
GPIO
|
1*4 in/4 out
|
|
|
Environmental
|
|
|
|
Anti-vibration
|
5-19Hz/1.0mm amplitude;19-200Hz/1.0g, acceleration
|
|
|
Anti-shock
|
10g acceleration, 11ms duration
|
|
|
IP65
|
Front panel IP65
|
|
|
Reliability
|
MTBF≥5000h; MTTR≤0.5h
|
|
|
Operating Temp.
|
0℃--50℃ with air flow
|
|
|
Storage Temp.
|
-30℃ --70℃
|
|
|
Operating Humidity
|
95% @40℃, non-condensing
|
|
|
Mechanical
|
|
|
|
Dimensions
|
406.2mm(L)*255.6mm(W)*52.3mm(H)
|
|
|
Mounting size
|
VESA mounting: 75*75mm/100*100mm
Embedded mounting: 396mm*245mm |
|
|
Material
|
Fanless High-strength and elegant Al-alloy panel
|
|
|
Weight
|
3.57kg/4.77kg(NET/Gross)
|
|
|
Color
|
Silver
|
|
|
Certificates
|
|
|
|
Certificates
|
CE, ROHS, FCC, WEEE
|
|

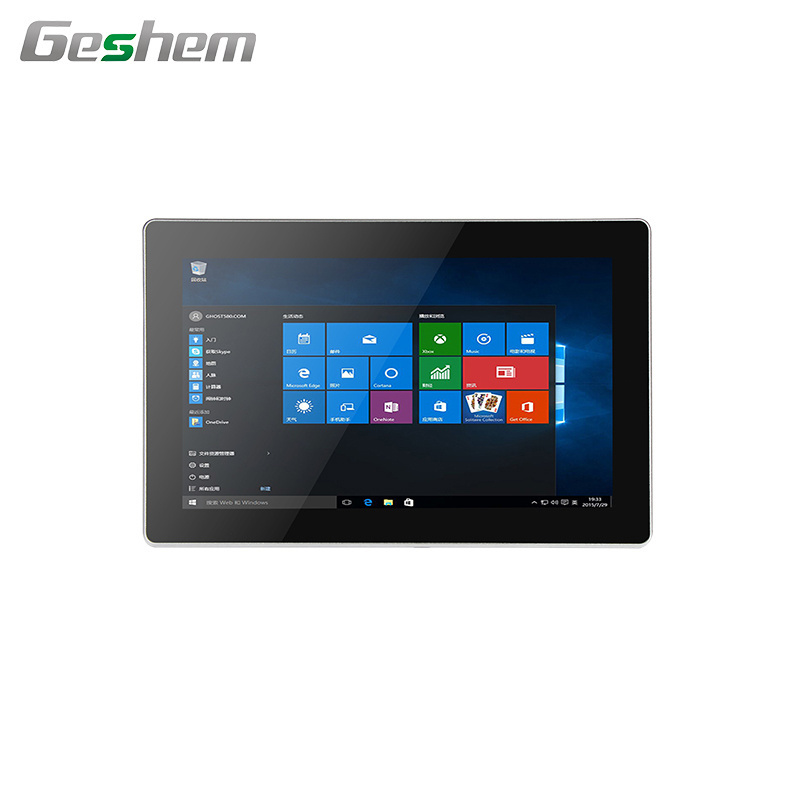

Product photo
