- Product Details
- {{item.text}}
Quick Details
-
Min. Lifting Height:
-
lifting height 8m
-
Table Size:
-
1400*700*1100mm
-
Overall Dimensions:
-
1.52*0.88*2.16m
-
Weight:
-
1260 kg
-
Marketing Type:
-
New Product 2024
-
product name:
-
Online support
-
lifting height:
-
6m
-
working height 8:
-
8m
-
load capacity:
-
230kg
-
Power supply:
-
DC battery
-
Wheel:
-
Rubber track tires
-
Application:
-
Working at height on rough roads
-
Move type:
-
self propelled type
-
Whether there are outriggers:
-
Without legs
-
Minimum turning radius:
-
0m
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Weiying
-
Min. Lifting Height:
-
lifting height 8m
-
Table Size:
-
1400*700*1100mm
-
Overall Dimensions:
-
1.52*0.88*2.16m
-
Weight:
-
1260 kg
-
Marketing Type:
-
New Product 2024
-
product name:
-
Online support
-
lifting height:
-
6m
-
working height 8:
-
8m
-
load capacity:
-
230kg
-
Power supply:
-
DC battery
-
Wheel:
-
Rubber track tires
-
Application:
-
Working at height on rough roads
-
Move type:
-
self propelled type
-
Whether there are outriggers:
-
Without legs
-
Minimum turning radius:
-
0m
|
My dear friend, the following parameters are the basic parameters of our products. If you want to know more details, please send them to us in the inquiry. We will provide you with high quality products and services.
|
|
|
|
|
|
|
||||||
|
Model
|
Table size(m)
|
Load
capacity
|
Platform height
|
Overall size(m)
|
Extension of platform(m)
|
Overall weight(kg)
|
||||||
|
GTJZ-6
|
2.26*1.13
|
230kg
|
6m
|
2.4791.17*2.29
|
0.9
|
1900
|
||||||
|
GTJZ-8
|
2.26*1.13
|
230kg
|
8m
|
2.47*1.17*2.31
|
0.9
|
2060
|
||||||
|
|
|
|
|
|
|
|
||||||
|
GTJZ-10
|
2.26*1.13
|
320kg
|
10m
|
2.47*1.17*2.43
|
0.9
|
2730
|
||||||
|
|
|
|
|
|
|
|
||||||
|
GTJZ-12
|
2.26*1.13
|
320kg
|
12m
|
2.47*1.17*2.55
|
0.9
|
2860
|
||||||

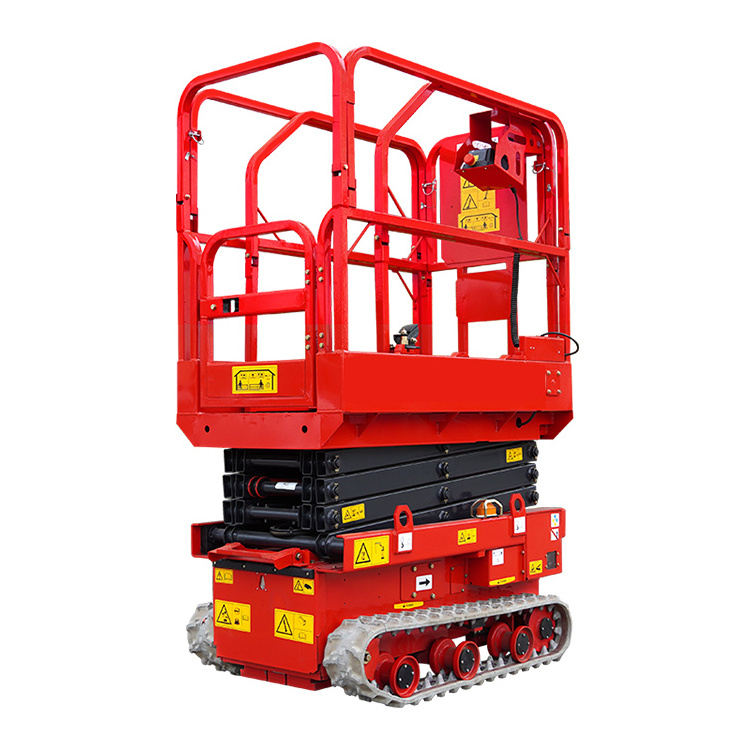

Thanks for your time , In order to sending you right price , Please imform us your detailed needs for " 6m Mobile Lifting Platform Automatic Electric Track Crawler Scissor Man Lift "
1. What platform height do you need?
2. How much platform load is need for you?
3. Do you prefer hydraulic drive or electric drive?
4.H
ow many would you like to order?
5. Which port shall we ship the goods to?
