Quick Details
-
Engine Brand:
-
Other
-
Weight:
-
3000 KG
-
Product name:
-
Agricultural Tractor
-
Engine:
-
Diesel Motor
-
Horse power:
-
25-240hp
-
Keywords:
-
Farmr Tractor
-
Engine type:
-
4 Cylinder Diesel
-
Model:
-
TB904
-
Color:
-
Green, Red, Blue, on request.
-
PTO Speed::
-
540/760rpm
-
Power:
-
66.2KW
Quick Details
-
Brand Name:
-
PANDA
-
Place of Origin:
-
Shandong, China
-
Marketing Type:
-
New Product 2022
-
Engine Brand:
-
Other
-
Weight:
-
3000 KG
-
Product name:
-
Agricultural Tractor
-
Engine:
-
Diesel Motor
-
Horse power:
-
25-240hp
-
Keywords:
-
Farmr Tractor
-
Engine type:
-
4 Cylinder Diesel
-
Model:
-
TB904
-
Color:
-
Green, Red, Blue, on request.
-
PTO Speed::
-
540/760rpm
-
Power:
-
66.2KW
Product Description
Specification
|
Model
|
|
|
TB904
|
||
|
Type
|
|
|
4×4
|
||
|
Overall Dimension
（mm） |
L×W×H
|
|
3900×1795×2700
|
||
|
|
Tread
|
Front Wheel
|
1300
|
||
|
|
|
Rear Wheel
|
1300 (usual),1400, 1500
|
||
|
|
Wheel Base
|
|
2072
|
||
|
|
Min. Ground Base
|
|
390 (the bottom of steering horizontal pulling rod)
|
||
|
Min. Usage Mass （kg）
|
|
|
3000
|
||
|
Engine
|
Model
|
|
Quanchai 4C6-90C33
|
||
|
|
Type
|
|
Vertical, water cooled and 4-stroke
|
||
|
|
Rated Power（kw）
|
|
66.2
|
||
|
|
Rated Rev.（r/min）
|
|
2300
|
||
|
|
Fuel
|
|
Diesel Oil
|
||
|
Tire
|
Front Wheel
|
|
8.3-24
|
||
|
|
Rear Wheel
|
|
14.9-30
|
||
|
Clutch
|
|
|
dry-friction, dual stage
|
||
|
Steering
|
|
|
Hydraulic type
|
||
|
Transmission Box
|
|
|
12F+12R Shuttle Shift
|
||
|
Suspension Type
|
|
|
Post Positioned Three-point Suspension Catalogue II
|
||
|
PTO
|
Type and Rev.（r/min）
|
|
Post-position, independent, 540/760 or 540/1000
|
||
|
|
Spline Size
|
|
I35 Rectangle Spline with 6 teeth
|
||

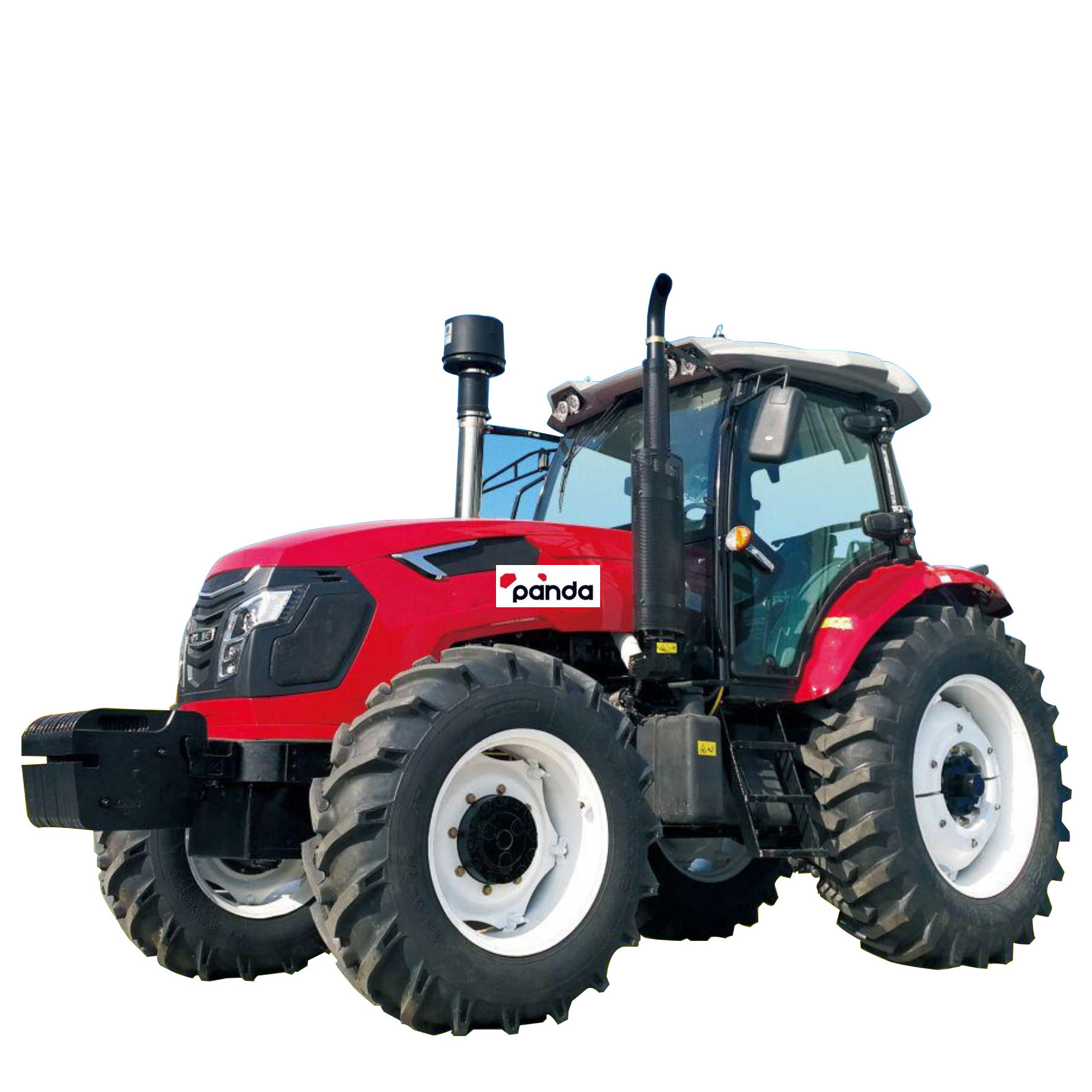

Product show
Features
1.Famous brand diesel engine
2.Increase 30% efficience,Save 25% fuel
3.4 wheel drive, Shuttle shift 12F+12R, High Ground clearance.
4.Stable performance in Mountain Area with low maintenance rate.
5.Rear 3 point hitch, can equipped different farm implements easily.
6.PTO according international standard 540/1000.
7. Equipped Hydraulic steering and Shock absorption seat.
1.Famous brand diesel engine
2.Increase 30% efficience,Save 25% fuel
3.4 wheel drive, Shuttle shift 12F+12R, High Ground clearance.
4.Stable performance in Mountain Area with low maintenance rate.
5.Rear 3 point hitch, can equipped different farm implements easily.
6.PTO according international standard 540/1000.
7. Equipped Hydraulic steering and Shock absorption seat.
