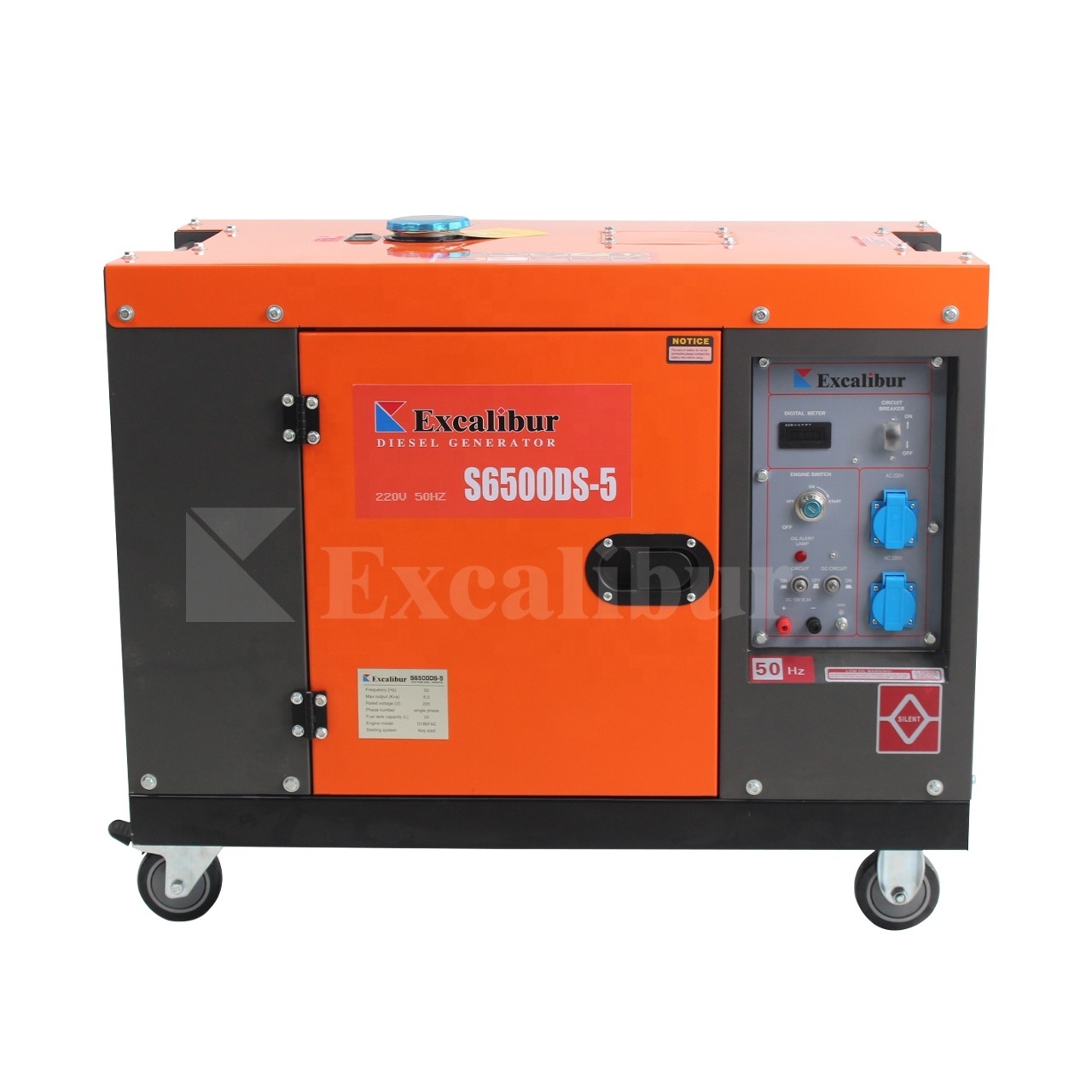

* 100% copper wire alternator
* Silent canopy, portable model
* 5KVA output
* Four wheels ensure easy moving
* Ele ctric start with 30AH battery
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
1year, 1 Year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Excalibur
-
Model Number:
-
S6500DS-5
-
Speed:
-
3000rpm/3600rpm
-
Weight:
-
153kgs
-
Product Name:
-
Silent Diesel Generator
-
Alternator:
-
100% Copper Alternator
-
Options:
-
Automatic Transfer Switch and Remote controller
-
Color:
-
Customization
-
Control panel:
-
Customization
-
Fuel Tank:
-
20L
-
Phase:
-
1 Phase 3 Phase
-
Engine type:
-
4 cycle Air cooled Diesel Engine
-
Starting system:
-
Electric Starter
-
Certification:
-
CE,ISO
Quick Details
-
Rated Voltage:
-
110V, 120V, 220V, 230V,240V, 220/380V
-
Rated Current:
-
12V-8.3A
-
Frequency:
-
50Hz/60Hz
-
Warranty:
-
1year, 1 Year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Excalibur
-
Model Number:
-
S6500DS-5
-
Speed:
-
3000rpm/3600rpm
-
Weight:
-
153kgs
-
Product Name:
-
Silent Diesel Generator
-
Alternator:
-
100% Copper Alternator
-
Options:
-
Automatic Transfer Switch and Remote controller
-
Color:
-
Customization
-
Control panel:
-
Customization
-
Fuel Tank:
-
20L
-
Phase:
-
1 Phase 3 Phase
-
Engine type:
-
4 cycle Air cooled Diesel Engine
-
Starting system:
-
Electric Starter
-
Certification:
-
CE,ISO
Products Description
Product Features
* 10HP diesel engine S186FAE
* 100% copper wire alternator
* Silent canopy, portable model
* 5KVA output
* Four wheels ensure easy moving
* Ele ctric start with 30AH battery
* 100% copper wire alternator
* Silent canopy, portable model
* 5KVA output
* Four wheels ensure easy moving
* Ele ctric start with 30AH battery
|
Model
|
S3500DS
|
S5000DS
|
S6500DS
|
S7500DS
|
S8500DS
|
S9800DS
|
S1100DS
|
||||||
|
Frequency
|
50 / 60HZ
|
|
|
|
|
|
50 / 60HZ
|
||||||
|
Rated Voltage
|
110, 120, 130, 220, 230, 240, 220/380V
|
|
|
|
|
|
|
||||||
|
Rated output (KVA)
|
2.8 / 3.0
|
4.2 / 4.6
|
4.5 / 5.0
|
5.0 / 5.5
|
6.0 / 6.5
|
7.5 / 8.0
|
8.5 / 9.0
|
||||||
|
Max output (KVA)
|
3.0 / 3.3
|
4.6 / 5.0
|
5.0 / 5.5
|
5.5 / 6.0
|
6.5 / 7.0
|
8.0 / 8.5
|
9.0 / 10.0
|
||||||
|
DC output
|
12V-8.3A
|
|
|
|
|
|
|
||||||
|
Power factor
|
1.0 / 0. 8(Three phase)
|
|
|
|
|
|
|
||||||
|
Noise level (7m)db(A)
|
72
|
|
|
|
|
|
|
||||||
|
Engine model
|
D178FE
|
D186FE
|
D186FAE
|
D188FBE
|
D192FE
|
SD650
|
S1100FE
|
||||||
|
Fuel tank capacity(L)
|
20
|
|
|
|
|
|
|
||||||
|
Countinuous running time (hr)
|
14.5
|
9.7
|
9.3
|
8.5
|
6.8
|
6.1
|
5.8
|
||||||
|
Starting system
|
Electric start
|
|
|
|
|
|
|
||||||
|
Packing size(mm)
|
950*530*700
|
|
|
|
|
1130*650*750
|
1070*715*770
|
||||||
|
Net weight (kg)
|
140
|
150
|
153
|
155
|
160
|
184
|
195
|
||||||
