Quick Details
-
Voltage:
-
380V 50HZ
-
Power:
-
3.5KW
-
Dimension(L*W*H):
-
Customized upon requirements
-
Weight (KG):
-
3200
-
Product name:
-
spray paint machine for golf ball
-
Speed:
-
2000pcs/hr
-
Air pressure (bar):
-
5-7
-
Total jigs:
-
884 sets
-
Tunnel oven:
-
0-120 degree available
-
Machine Size:
-
1870*2200*2000mm
-
Print area:
-
diameter 50mm*H40mm.
-
Spray gun:
-
3
-
Application:
-
Golf ball, table tennis etc
Quick Details
-
Machine Type:
-
Automatic, Spray Booths, Painting Equipment, Plc Controller Programmable Logic Controller, Pre-treatment Equipment, Conveying Equipment, Drying Oven, Curing oven, Coating Equipment, Other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DEMA Machine
-
Voltage:
-
380V 50HZ
-
Power:
-
3.5KW
-
Dimension(L*W*H):
-
Customized upon requirements
-
Weight (KG):
-
3200
-
Product name:
-
spray paint machine for golf ball
-
Speed:
-
2000pcs/hr
-
Air pressure (bar):
-
5-7
-
Total jigs:
-
884 sets
-
Tunnel oven:
-
0-120 degree available
-
Machine Size:
-
1870*2200*2000mm
-
Print area:
-
diameter 50mm*H40mm.
-
Spray gun:
-
3
-
Application:
-
Golf ball, table tennis etc
Our Service
Pre sale:
After sales:
1. Provide professional advice to provide customers with the best solution.
2. According to the customer's needs or requirements, our engineers will provide you with drawings and solutions.
3. We will provide competitive prices based on customer solutions.
4. Before shipping, we will provide product testing videos and pictures for customer confirmation before shipping.
After sales:
1. We will send engineers to the site for installation, debugging, and operation training.
2. We will provide fault handling services and lifetime warranty.
3. We provide a 5 years warranty for each machine.
4. We will contact you regularly to understand the condition of the machine.
5. We also offer services to further expand on your existing machine.
Related Products
Product Details

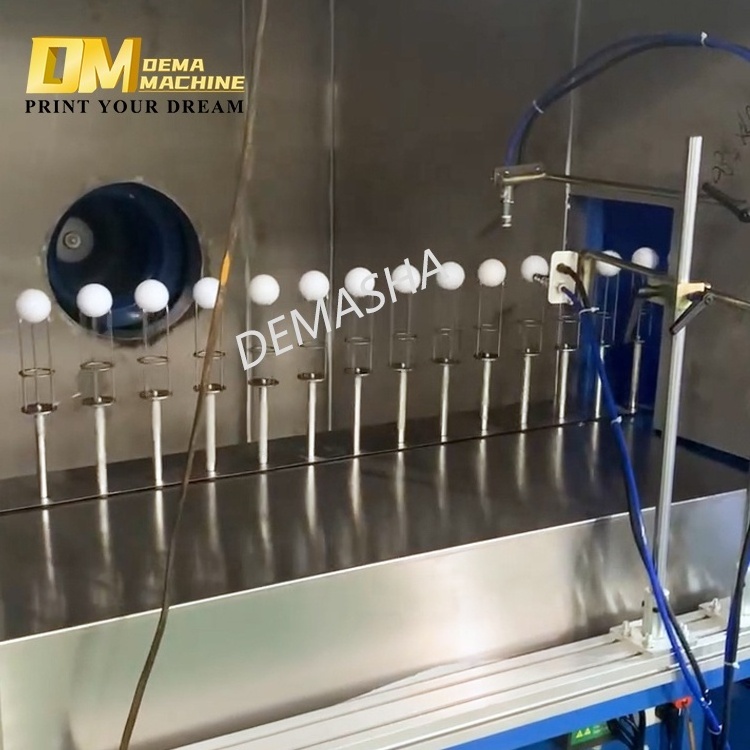

Spray coating machine line for ball ball
Machine Dimension(L*W*H): Customized Size
Customized Conveyor Length
|
Specification
|
1. Machine Chain Total is 68M
2. The chain adopts P38.1mm pitch carbon steel chain. Fixtures are separated by one full of one.
3. The curing furnace chain is 50 meters long. Cooling area is 5 meters, oil injection area is 6 meters, feeding area is 3.3 meters, unloading area is 3.7 meters 4. Total jigs: 884 sets. |
|
Material
|
1. Electric heating, adjustable temperature within 120 degrees, total power 24KW
|
|
Water Curtain booth+Brush System
|
1. Water Curtain booth size is W:1870*D2200*H2000mm
2. The dust removal cabinet is 1200mm wide x 1400mm deep and 2000mm high
3. A 1.1KW motor is used for air extraction. dogtag 4. With a drag 4 electrostatic spray gun |
|
Control System
|
1. The heating is output by thyristor. Divided into 2 sections can be warmed. Temperature 0-200 degrees can be adjusted.
2.Electric addition. Stainless steel heat sink heating tube. 3. Other electrical parts use Schneider brand, and the wire part uses Pearl River national standard wire 4. One set of pneumatic control system, with 6 controls. 5. Spray gun 3 Iwata WA101-1302 6. 1 pcs pneumatic diaphragm pump 7. 1 pcs 20L stainless steel paint bucket 8. One set of main control cabinet |
Machine Feature：
1. Automatic spray paint line includes the Preheating, automatic spraying paint, automatic drying and automatic cooling. Save labor and cost, improve the efficiency.
2. Spray evenly, high precision, the running accuracy is within 0.2mm, the spraying accuracy is within 0.2-1mm.
3. Flexible spraying size can save 20% paint.
4. High efficiency, can reach continuous work for 24 hours, the output is 3-5 times than the labor.
5. Spraying debugging is simple within ten mins. The program is easy to operate.
6. Automatic spray paint line are widely used to the workpiece which will be achieve high efficiency ,high output.
7. Spraying painting machine can paint multi colors of product simultaneously.
1. Automatic spray paint line includes the Preheating, automatic spraying paint, automatic drying and automatic cooling. Save labor and cost, improve the efficiency.
2. Spray evenly, high precision, the running accuracy is within 0.2mm, the spraying accuracy is within 0.2-1mm.
3. Flexible spraying size can save 20% paint.
4. High efficiency, can reach continuous work for 24 hours, the output is 3-5 times than the labor.
5. Spraying debugging is simple within ten mins. The program is easy to operate.
6. Automatic spray paint line are widely used to the workpiece which will be achieve high efficiency ,high output.
7. Spraying painting machine can paint multi colors of product simultaneously.
