Quick Details
-
Standard:
-
IEC60947-4-1, IEC60439-1
-
Product name:
-
DOL starter
-
Type:
-
Motor protection
-
Phase:
-
Three Phase
-
Protection Level:
-
IP65
-
Voltage of coil:
-
230V,240V,380V
-
Rated current(A):
-
9 12 18 25 32 40 50 65 80 95A
-
Rated insulating voltage:
-
690V
-
Material:
-
Plastic and metal
-
Frequency of coils:
-
50Hz
Quick Details
-
Brand Name:
-
EBASEE
-
Place of Origin:
-
Shanghai, China
-
Model Number:
-
EBSE1
-
Standard:
-
IEC60947-4-1, IEC60439-1
-
Product name:
-
DOL starter
-
Type:
-
Motor protection
-
Phase:
-
Three Phase
-
Protection Level:
-
IP65
-
Voltage of coil:
-
230V,240V,380V
-
Rated current(A):
-
9 12 18 25 32 40 50 65 80 95A
-
Rated insulating voltage:
-
690V
-
Material:
-
Plastic and metal
-
Frequency of coils:
-
50Hz

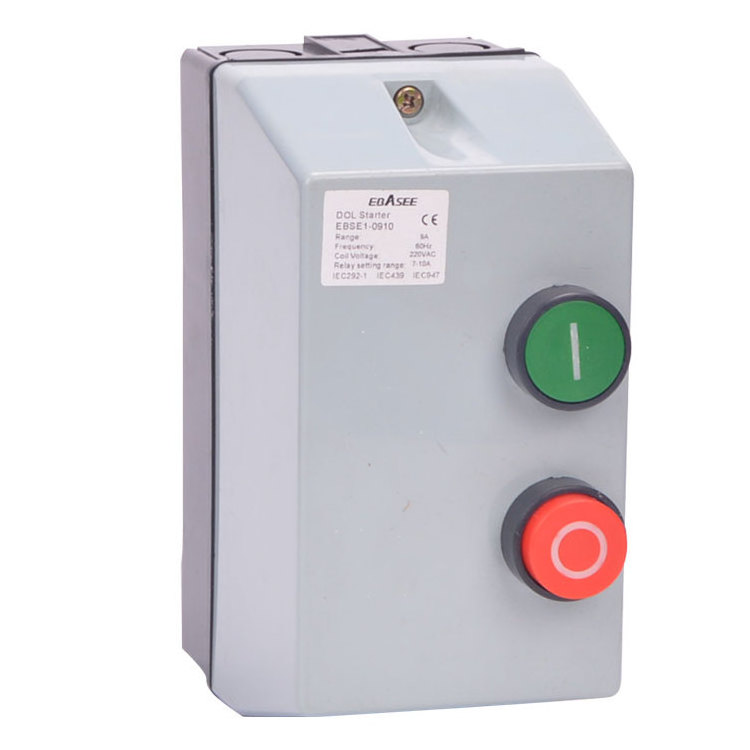

DOL Starter Function
EBSE1 DOL magnetic Starter mainly applies to circuit if AC 50 or 60Hz, voltage up to 550V for remote making and breaking circuit and frequently starting and controlling motor.
EBSE1 DOL magnetic Starter mainly applies to circuit if AC 50 or 60Hz, voltage up to 550V for remote making and breaking circuit and frequently starting and controlling motor.
|
Model Name
|
EBSE1 Dol starter
|
|
Standard
|
IEC60947-4-1 IEC60439-1
|
|
Voltage of coil
|
P 230V; U 240V; Q 380V
|
|
Rated current(A)
|
9 12 18 25 32 40 50 65 80 95A
|
|
Rated insulating voltage
|
690V
|
|
Material
|
Plastic and metal
|
|
Protection level
|
IP65
|
|
Connection
|
Pre-wired power and control circuit connections
|
Features
1. EBSE1 DOL Starter features small volume light weight, low power consumption, high efficiency, safe and reliable performance etc.
2. One starter can be installed with different setting current thermal relay to control different power motor and protect
overload,the relay has to be ordered separately.
1. EBSE1 DOL Starter features small volume light weight, low power consumption, high efficiency, safe and reliable performance etc.
2. One starter can be installed with different setting current thermal relay to control different power motor and protect
overload,the relay has to be ordered separately.
|
Ambient temperature
|
-5~+40℃, the average value cannot exceed to +35℃ within 24h
|
|
Altitude
|
≤2,000m
|
|
Relative humidity
|
≤95%
|
|
Pollution level
|
III.
|
|
Installation category
|
3
|
