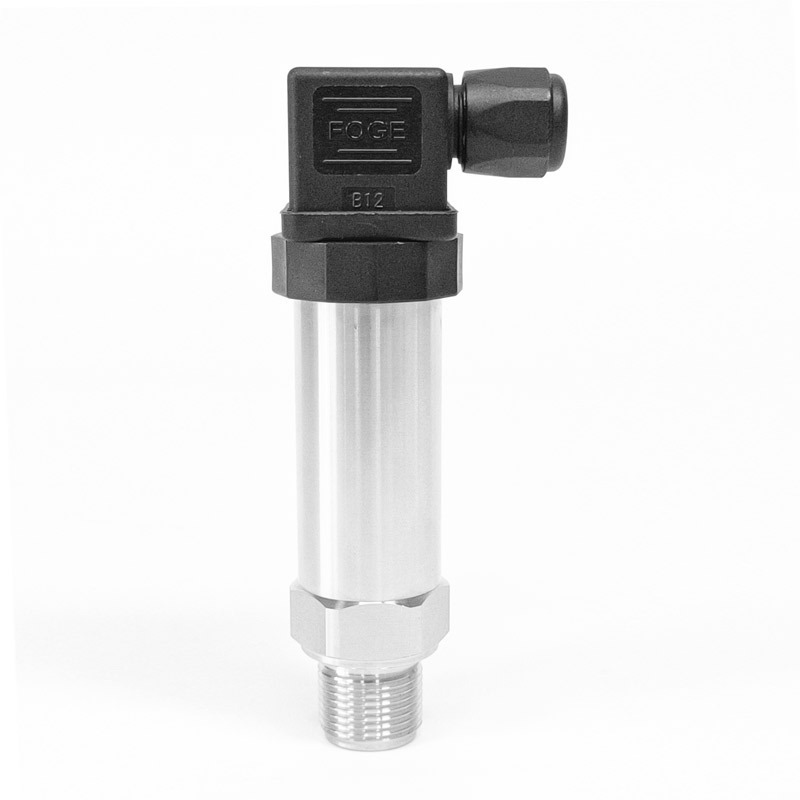

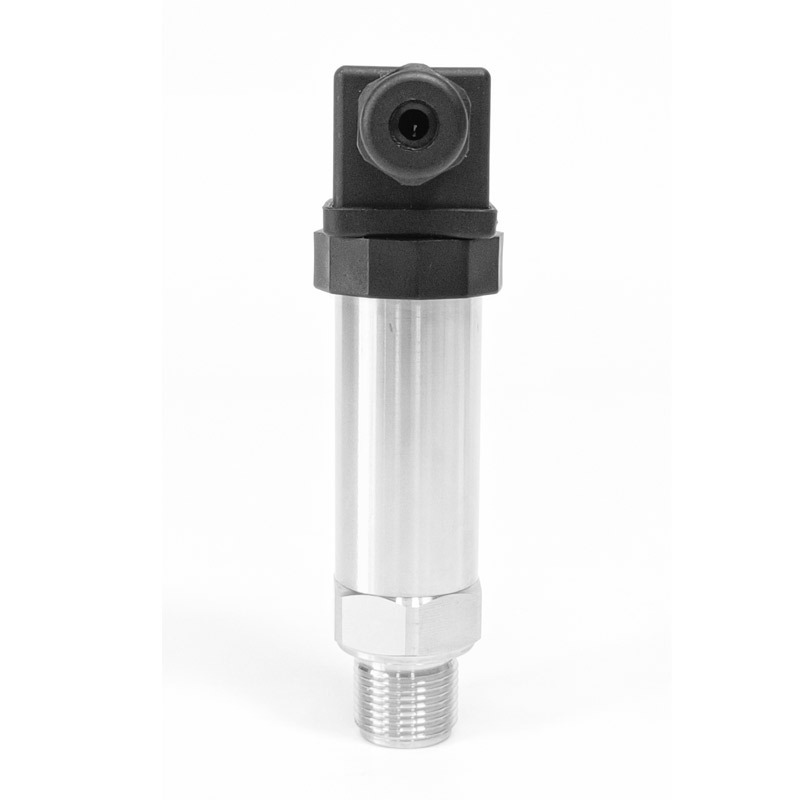

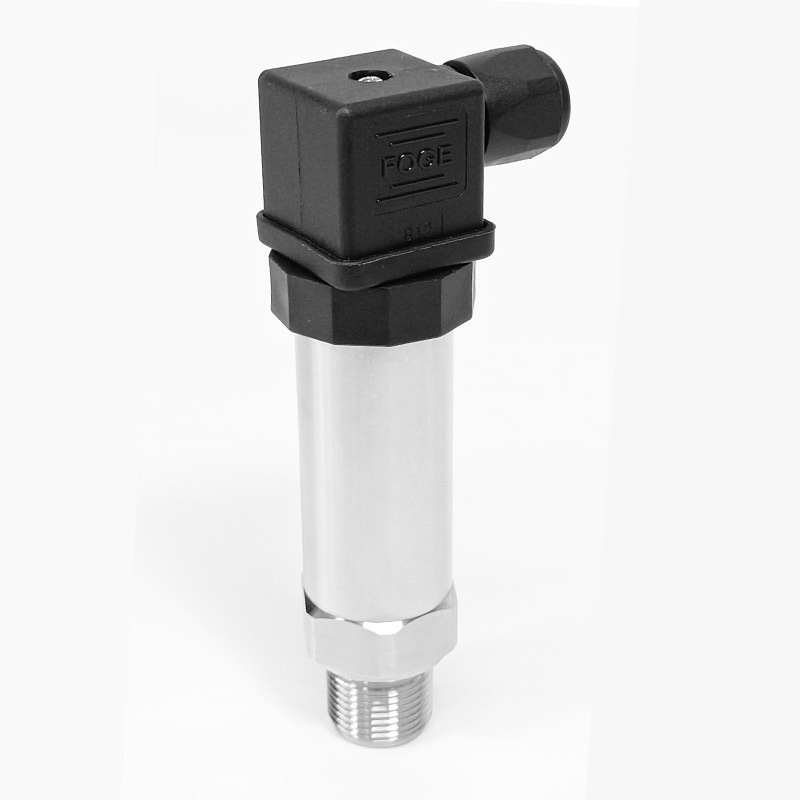

OEM DAXI service water pressure meter silicon pressure sensor 4~20ma monitor 250bar rs485 pressure transducer

OEM DAXI service water pressure meter silicon pressure sensor 4~20ma monitor 250bar rs485 pressure transducer

FOB Reference Price: Get Latest Price

≥1 Sets

US $45

≥10 Sets

US $42

≥100 Sets

US $38

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: DX-PT-2

Material:: 304/316

Accuracy:: ±0.25%(Typical) ±0.5%(Max.), ±0.25%(Typical) ±0.5%(Max.)

Product name:: Pressure Transmitter

Measurement Range:: 0~100 MPa

Proof pressure:: ≤1.5X rated pressure or 110MPa which ever is less

Pressure type:: Gauge, Absolute, Sealed gauge

Operating Temperature Range:: -20℃~80℃

Power supply:: 12~30VDC

Output signal:: 4-20 mA or Modbus RS485

Housing material:: Stainless steel

Protection:: IP65

Quick Details

Warranty:: 1 years

Place of Origin:: Guangdong, China

Brand Name:: DAXIN

Model Number:: DX-PT-2

Material:: 304/316

Accuracy:: ±0.25%(Typical) ±0.5%(Max.), ±0.25%(Typical) ±0.5%(Max.)

Product name:: Pressure Transmitter

Measurement Range:: 0~100 MPa

Proof pressure:: ≤1.5X rated pressure or 110MPa which ever is less

Pressure type:: Gauge, Absolute, Sealed gauge

Operating Temperature Range:: -20℃~80℃

Power supply:: 12~30VDC

Output signal:: 4-20 mA or Modbus RS485

Housing material:: Stainless steel

Protection:: IP65

Application scenarios of pressure sensors The pressure transmitters can convert the pressure signal into a standard electrical signal output, which can be monitored and controlled by PLC, DCS and other control systems. It is widely used in industrial automation, manufacturing, chemical industry, oil and gas, energy, environmental protection, food, pharmaceuticals and other fields.

Specification

Product Name	Pressure Transmitter			liquid level sensor
Measure range	-01~0 Mpa	0~0.01 Mpa	0~100 Mpa
Proof pressure	≤1.5X rated pressure or 110MPa which ever is less			0.2% FS
Pressure type	Gauge	Absolute	Sealed gauge
Accuracy	±0.25%（Typical） ±0.5%（Max.）
Stability	±0.1%F.S/Year（Typical ）	±0.2%F.S/year（ Max.）		≤0.5
Temperature Error- Zero	±0.03%F.S/℃（≤100KPa）	±0.02%F.S/℃（＞100KPa）		≤0.5
Temperature Error -Span	±0.03%F.S/℃（≤100KPa）	±0.02%F.S/℃（＞100KPa）		≤0.5
Operating Temperature Range	-20℃~80℃			DC 12V
Power supply	12～30VDC			RS485 MODBUS RTU
Output signal	4~20mA	Rs485 modbus RTU
Pressure port	M20×1.5; G1/2; Clamp type; or customize			IP68
Housing material	Stainless steel
Diaphragm material	316L/ 304 SS
O-ring	Fluororubber
Protection	IP65
Insulation resistance	100MΩ 100VDC

Product Description

PRESSURE SENSOR

HERSMAN CONTACT easy to install

PRESSURE HOLE reduce the instantaneous pressure and extend the service life of the transmitter

INLET SENSOR stable work,long service life

What are the characteristics of pressure sensors?

- The pressure transmitter has a small volume and light weight, making it easy to install, debug, and use.

- Its stainless steel fully enclosed shell has anti-corrosion function.

- The pressure transmitter is widely used in liquid level measurement in various industries.

- It can also be used in conjunction with computers, recorders, regulators, and counters, and can automatically detect and control the production process.

MULTIFUNCTION

Pressure transmitter is a device that converts pressure into pneumatic signal or electric signal for control and remote
transmission.-Smart chip -Laser marking -Overvoltage protection -Waterproof and dustproof

Hydraulic pressure /Oil pressure/Pressure

Compact size:

Suit for various of industry application;

316L:

316L stainless steel housing,anti-corrosive;

Stable:

American imported circuit board,stable for 10 years;

Flush Ceramic sensor;

Germany imported Flush Ceramic sensor.durable and stable;

Anti-interference chip:

Independent R&D of anti-interference chip,anti-interference improvement.

DX-PT-2

Screw thread

1. Suitable for room temperature;

2. Core:Monocry stallinesilicon oil-filled;

3. Widely range; 4. Easy clean;

5. Wetted material:SS316L.

DX-PT-3

Clamp type

1. Mechanical Engineering;

2. Water pressure,air pressure;

3. Health care;

4. Food and beverage processing;

5. General industrial high precision control;

What are the use cases of pressure sensors?

Pressure sensor is commonly used in industrial practice.It is widely used in various industrial automation environments,including water conservancy and hydropower,railwat transportation,intelligent buildings,production automation,aerospace,petrochemical,oil wells,electricity,ships,machine tools,pipelines,etc.

Packing & Delivery

Standard export packing 1pc/box
