Quick Details
-
Power (W):
-
10
-
Voltage (V):
-
12
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AQUAPURE
-
Model Number:
-
OZQS0.5-D 90103
-
Ozone Output 1::
-
500 mg/h at 2.5 L/min dry air
-
Ozone output 2::
-
300 mg/h at 2.0 L/min normal air (1000 ppm)
-
Ozone output 3::
-
1000 mg/h at 1 L/min oxygen
-
Output connections::
-
6.0 mm diameter
-
Ozone generating technology::
-
Corona discharge, quartz tube
-
Size Generator::
-
100.6 x 40 x 30 mm
-
Size Electronics::
-
100 x 40 x 33 mm
-
Weight::
-
0.27 Kg
-
Certification:
-
ce,EMC,RoHS
Quick Details
-
Warranty:
-
1 Year
-
Application:
-
Car, Hotel, Household
-
Type:
-
Ozone Generator
-
Power (W):
-
10
-
Voltage (V):
-
12
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AQUAPURE
-
Model Number:
-
OZQS0.5-D 90103
-
Ozone Output 1::
-
500 mg/h at 2.5 L/min dry air
-
Ozone output 2::
-
300 mg/h at 2.0 L/min normal air (1000 ppm)
-
Ozone output 3::
-
1000 mg/h at 1 L/min oxygen
-
Output connections::
-
6.0 mm diameter
-
Ozone generating technology::
-
Corona discharge, quartz tube
-
Size Generator::
-
100.6 x 40 x 30 mm
-
Size Electronics::
-
100 x 40 x 33 mm
-
Weight::
-
0.27 Kg
-
Certification:
-
ce,EMC,RoHS

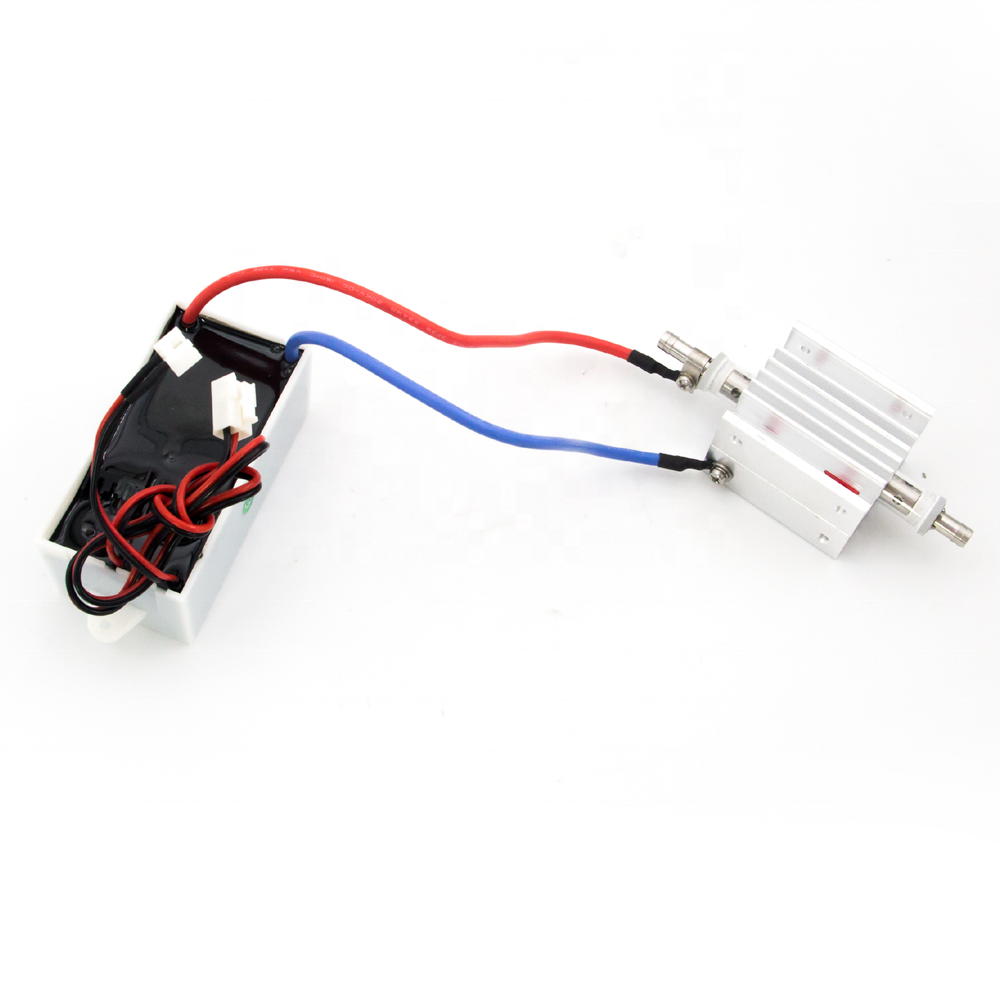

AQUAPURE 500mg ozone generator spare parts: o3 core unit OZQS0.5-D
AQUAPURE ozone cell module uses the latest Quartz tube with SS or Titanium electrode technology , which is the best to get stable ozone output and high ozone concentration .
This series of ozone cell module can be widely applied in ozone air treatments or ozone water treatments.
----
100% test for ozone concentration & ozone output
---- 100% inside ozone tolerance
---- 100% life burning test
---- 100% ozone compatible material
---- Suitable for water treatment/air treatment/medical treatment
---- 300mg/h-500mg/h ozone output for adjust
Produ ct Sp ecification:
|
Ozone Output 1
|
|
500 mg/h at 2.5 L/min dry air
|
|
||
|
Ozone Output 2
|
|
300 mg/h at 2.0 L/min normal air (1000 ppm)
|
|
||
|
Ozone Output 3
|
|
1000 mg/h at 1 L/min oxygen
|
|
||
|
Gas source
|
|
Ambient air, dry air and oxygen source
|
|
||
|
Ozone generating technology:
|
|
Corona discharge, quartz tube
|
|
||
|
Cooling way:
|
|
air cooling
|
|
||
|
Continuous operation:
|
|
Available for non-stop working when will cooling fan
|
|
||
|
Input voltage
|
|
12V DC (24V DC optional; 100-240VAc optional)
|
|
||
|
Power
|
|
< 10w
|
|
||
|
Size Generator L x W x H (mm)
|
|
100.6 x 40 x 30 mm
|
|
||
|
Size Electronic L x W x H (mm)
|
|
100 x 41 x 33 mm
( potted )
|
|
||
|
Weight
|
|
0.27 kg
|
|
||
Product Drawing:
200mg OZQS0.2-D (OZQT0.2-D)
700mg/Hr OZQS0.7-D
1000mg/Hr OZQS1.0-D
Packing
YOUMO AQUAPURE OZQS0.5-D 500mg ozone tube:
1>. Standard export carton packing
2>. 60pc / box
3>. carton box size:45*33*33 cm ; 17.5kg / carton box
DELIVERY TIME:
1> samples------------within 2 days after payment arrive
2> batch orders-------2-30 days after payment deposit
