Quick Details
-
Weight:
-
930 KG
-
Product name:
-

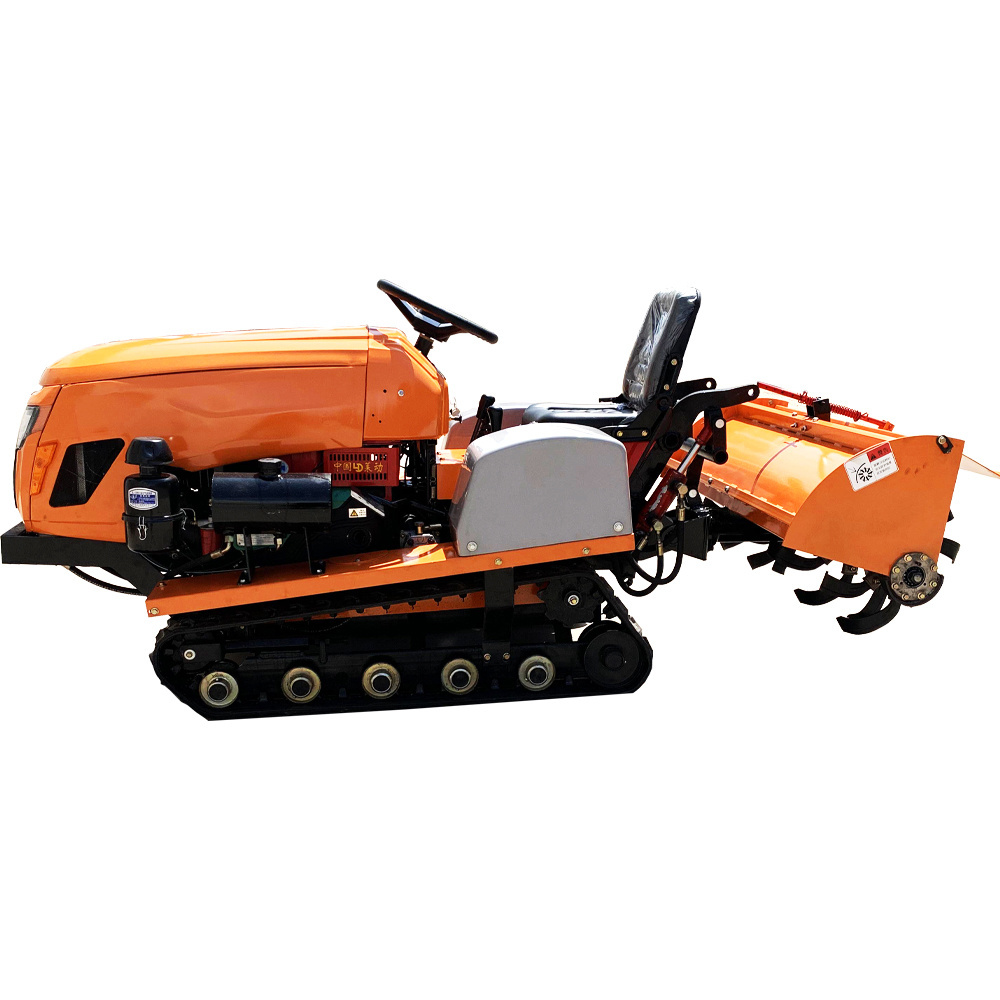

Mini Crawler Tractor
-
Horse power:
-
35HP
-
Size:
-
2600*1100*1130mm
Quick Details
-
Brand Name:
-
CF
-
Place of Origin:
-
Shandong
-
Engine Brand:
-
LAIDONG
-
Weight:
-
930 KG
-
Product name:
-
Mini Crawler Tractor
-
Horse power:
-
35HP
-
Size:
-
2600*1100*1130mm
◆ Patented gearbox with full gear shaft transmission, rear output three-point suspension, hydraulic strong lifting and lowering, the rear output shaft has forward and reverse rotation, and has high and low speed rotary tillage, ditching, and fertilizing functions. There is no need to disassemble the gearbox, just replace it Just knives. All four-wheel tractor farm implements can be installed, steering wheel operated, and remote controlled.
◆ There will be six forward gears and two reverse gears to adapt to the requirements of different functions, soil texture, and depth.
◆ Reinforced gearbox and chassis, the whole machine weighs 930 kilograms, has a compact structure and powerful functions, covering all functions of a four-wheel tractor. Optional remote control and manual driving models
|
Item
|
|
Unit
|
Value
|
|
|
Host Power
|
Size (in rotary tillage state)
|
mm
|
2600*1100*1130(length*width*height)
|
|
|
|
Quality
|
kg
|
930
|
|
|
|
Walking Gear
|
|
6 forward gears, 2 reverse gears
|
|
|
|
Working Gear
|
|
2 gears for ditching, 2 gears for rotary tillage
|
|
|
|
Track Material
|
/
|
Rubber and steel frame, steel wire
|
|
|
|
Width
|
mm
|
180
|
|
|
|
Control Method
|
|
Manual driving (can be upgraded to remote control/manual dual system)
|
|
|
Battery
|
Fuel Type
|
/
|
diesel fuel
|
|
|
|
Structure Type
|
/
|
Single cylinder 4 stroke water cycle diesel engine
|
|
|
|
Power
|
Kw(hp)
|
25(35)
|
|
|
|
Rotating Speed
|
r/min
|
2200
|
|
|
Rotary Tillage
|
Type
|
/
|
Lead-acid power battery
|
|
|
|
Capacity
|
Ah
|
45
|
|
|
Function Ditching
|
Rotary Tillage Depth
|
mm
|
0~300
|
|
|
|
Rotary Tillage Width
|
|
Standard 1200 maximum 1500 (can be customized according to demand)
|
|
|
Function Weeding
|
Trenching Depth
|
|
0~400
|
|
|
|
Trench Width
|
|
Standard 350~400 (can be customized according to demand)
|
|
|
Function
|
Weeding Width
|
|
Standard 1200 maximum 1500 (can be customized according to demand)
|
|
Founded in April 2010,ChengFeng Machinery Technology Ltd.ls a renowned provider otagriculture machinery technologies and solutions, and a verified high-tech enterprise focusedon the research and development, manufacturing and sales of agriculture machinery. Our fullsuite of products spans Mini-Tillers,Remote-Control Mowers.Remote-Contro Sprayers, Tracked Tractors, among others, and have been sold across China and exported to the U.S. Europe, Asia and Africa, etc.The company achieved lS09001 Certification, a widely recognized quality management standard.
ChengFeng Machinery is devoted to agriculture machinery R&D,and works with research institutions includina Chinese Academy of Aaricultural Sciences.Shandong University Of Science and Technology,and Shandong Agricultural University. With over 20 patented technologies and dozens of specialized equipment sets covering robotic welding, CNC manufacturing, surface treatment,etc, the company is capable of customizing solutions andlarge-scale manufacturing of agriculture machines numbering in the tens of thousands. With adedicated product R&D team and a robust auality assurance system, we are well positioned tcdevelop products that meet different requirements of customers and ensure high-quality delivery. Until now, ten of our products have been verified by China's national promotion standard and are entitied to dedicated subsidies.
At ChengFeng Machinery, we believe in innovation, collaboration and win-win, and wilcontinue to create better products that enable
