Quick Details
-
Voltage:
-
220 v
-
Power:
-
1.1 kw
-
Machine Size:
-
720x500x730 mm
-
Weight:
-
80 kg
Quick Details
-
Brand Name:
-
VOT/Lotustep
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
LS-300-2-A
-
Voltage:
-
220 v
-
Power:
-
1.1 kw
-
Machine Size:
-
720x500x730 mm
-
Weight:
-
80 kg

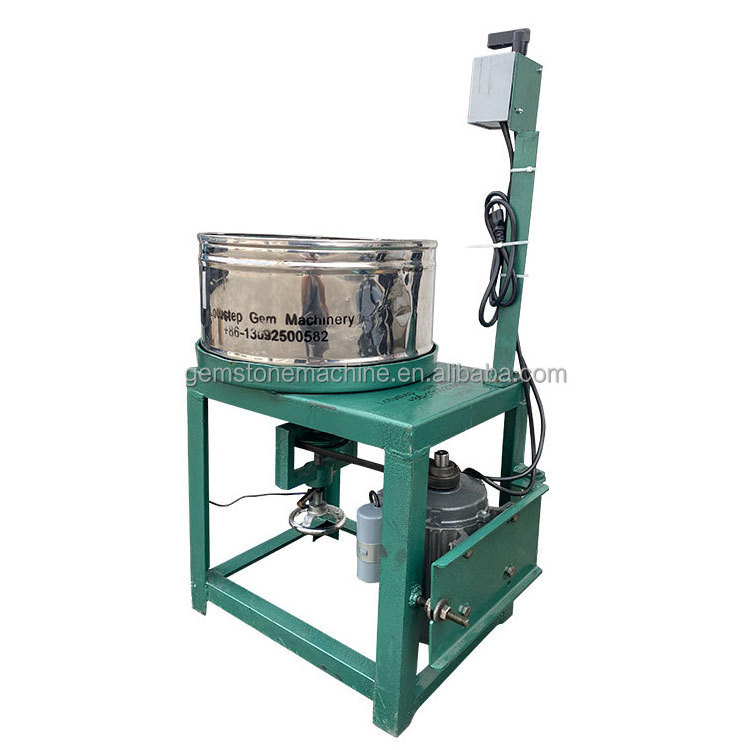

LS-300-2-A Single Drive Stone Bead Milling Machine
This is the second machine to use mass making gemstone bead size 3-20 mm, used after the LS-300-1 chamfer machine, make the chamfered bead round, but not totally round, 80% round.
LS-300-2-A stone bead milling machine can mill 356pcs of 4mm bead at a time, 292pcs of 6mm bead, 236pcs of 8mm bead, 144pcs of 10mm bead, 100pcs of 12mm bead, 84pcs of 14mm bead, 68pcs of 16mm bead, 48pcs of 18mm bead at a time.
Different size bead with different size of diamond plate, diamond plate size can be 3/4/6/8/10/12/14/16/18/20 mm, machine will work with a diamond plate and a steel plate, put beads in the plate, adjust the gap between the diamond plate and steel plate, normally take 15-25 minutes a time.
Diamond plate Grit to choose from 45/60/80/100/120/150/180/220, decided by the stone hardness, we suggest grit 80/100 for very hard stone like jade and agate, grit 240 for stone like natural turquoise.
Used for gemstone like jade, agate, crystal, fossi, shell, opal, chalcedony, obsidian and lapis, mohs hardness 4-7.
Bead quantity can mill a time
356 PCS 4mm bead at a time, 4mm diamond plate 17 grooves
292 PCS 6mm bead at a time, 4mm diamond plate 15 grooves
236 PCS 8mm bead at a time, 4mm diamond plate 13 grooves
144 PCS 10mm bead at a time, 4mm diamond plate 10 grooves
100 PCS 12mm bead at a time, 4mm diamond plate 9 grooves
84 PCS 14mm bead at a time, 4mm diamond plate 7 grooves
68 PCS 16mm bead at a time, 4mm diamond plate 6 grooves
48 PCS 18mm bead at a time, 4mm diamond plate 5 grooves
36 PCS 20mm bead at a time, 20mm diamond plate 4 grooves
Specification of LS-300-2-A
Voltage:110/220 V
Power:1.1 KW(1.5 HP)
Speed of blade:1400 RPM
Overall Size:L75*W48*H70 cm
Put beads in the plate and adjust the gap between diamond plate and steel plate
the chamfered bead a little outstanding is ok
Bead after milling, almost round
Diamond Plate to use
Small batch stone bead making process(2-5 kg one day)
Mass Production stone bead making process(15-50 kg one day)
