Quick Details
-
Storage Type:
-
GEL
-
The charging ratio:
-
99%
-
The discharge rate:
-
80%
-
Battery Size:
-
12V
-
Brand Name:
-
Greensun
-
Model Number:
-
FM7-12
-
Place of Origin:
-
Jiangsu, China
-
Weight:
-
2.18kg
-
Electric Energy:
-
1200 Wh
-
Sealed Type:
-
Sealed
-
Maintenance Type:
-
Free
-
Voltage:
-
12v
-
Size:
-
151*65*93mm
-
OEM Order:
-
Acceptable
-
Terminal:
-
T1/T2
-
Material:
-
High Pure Lead
-
Certificate:
-
CE / ISO9001 / ISO14001 / Rohs
-
Usage:
-
solar energy system
Quick Details
-
Chargeable:
-
Yes
-
Battery Type:
-
Deep Cycle: Sealed Gel
-
Cycle Life:
-
3000
-
Storage Type:
-
GEL
-
The charging ratio:
-
99%
-
The discharge rate:
-
80%
-
Battery Size:
-
12V
-
Brand Name:
-
Greensun
-
Model Number:
-
FM7-12
-
Place of Origin:
-
Jiangsu, China
-
Weight:
-
2.18kg
-
Electric Energy:
-
1200 Wh
-
Sealed Type:
-
Sealed
-
Maintenance Type:
-
Free
-
Voltage:
-
12v
-
Size:
-
151*65*93mm
-
OEM Order:
-
Acceptable
-
Terminal:
-
T1/T2
-
Material:
-
High Pure Lead
-
Certificate:
-
CE / ISO9001 / ISO14001 / Rohs
-
Usage:
-
solar energy system
Key Features :
♦Safety seal ,Deflating system ,Simple maintenance ,long lasting ,Stable quality and high reliability
♦Gelled electrolyte made by mixing sulfuric acid with silica fume.
♦The electrolyte is gel like ,immobile and does not leak ,enabling
uniform reaction of each part of the plate .
♦High rate discharge performance due to tight assembly technology
♦Strong heat dissipation and wide operating temperature range
♦Avoid acid mist being separated out , environment friendliness
♦Efficient venting system release excessive gas automatically
Applications :
♦Hybrid and off grid solar power system
♦ UPS battery backup
♦Wind solar energy system
♦ Signal system , emergency lighting system , security system
♦Telecommunication Equipment
♦Power station and plant room
|

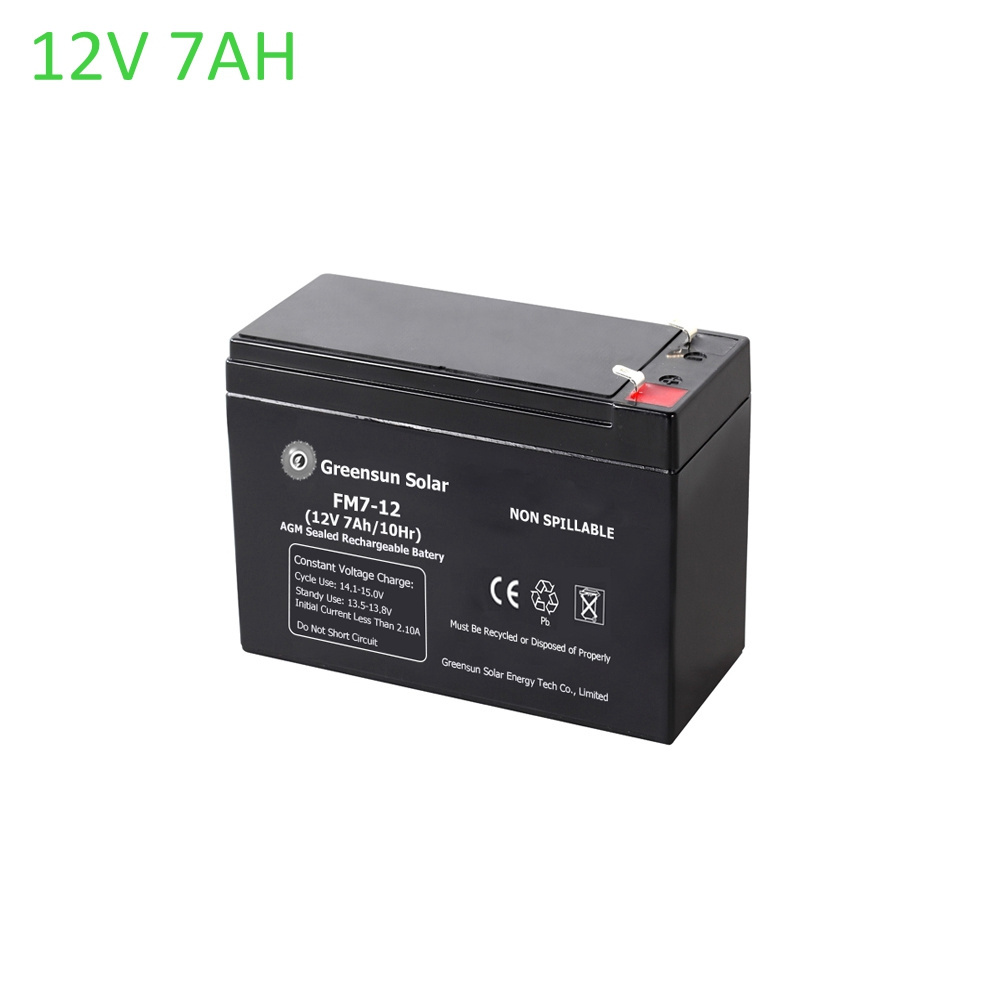

12V 7.0AH Lead Acid Battery Specification
|
|
|
|
Nominal Voltage
|
12V
|
|
|
Nominal Capacity (20HR)
|
7.0AH
|
|
|
Dimensions
|
L 151* W 65* H 93 mm
|
|
|
Approx Weight
|
Approx 2.18Kg (4.81lbs)
|
|
|
Terminal
|
T1/T2
|
|
|
Related Capacity
|
7.00 AH/0.35A (20hr ,1.80V/cell,25 C/77 ºF)
6.53 AH/0.65A (10hr,1.80V/cell, 25 C/77 ºF) 5.80 AH/1.16A (5hr,1.75V/cell, 25 C/77 ºF) 5.13 AH/1.71A (3hr,1.75V/cell, 25 C/77 ºF) |
|
|
Operating Tem.Range
|
Discharge : -15 ~50 ℃ (5 ~122 ºF)
Charge : 0 ~ 40 ℃ (32 ~104 ºF)
Storage : -15 ~40 ℃ (5 ~104 ºF)
|
|
|
|
Initial Charging Current less than 2.1A. Voltage
14.4V~15.0V at 25℃ (77 ºF)Temp. Coefficient -30mV/ ℃
|
|
|
Capacity affected by Temperature
|
40 ℃ (104 ºF) 103%
25 ℃ ( 77 ºF) 100%
0 ℃ ( 32 ºF) 86%
|
|
|
Container Material
|
ABS
|
|
|
Max Discharge Current
|
105A (5S)
|
|
♦ Founded in 2004 , 500MW solar panel production capacity , millions of battery, charge controller , inverter and pump production capacity
♦ Three factories , solar panel factory , battery factory , and pump factory
♦ Products are exported to more than 150 countries
♦ Turn-key solar systems are offered , to save the time and money for the clients
♦ Rich experience in overseas construction of solar projects
♦ Professional after sale service .
