Quick Details
-
Model Number:
-
BSRK
-
Input signal:
-
PT100,Cu50 and other resistance signal
-
Output signal:
-
4-20mA;0-20mA;0-5V;0-10V etc
-
Output load resistance:
-
RL≤500Ω(output current signal) RL≥1KΩ(output voltage signal)
-
Allowed line resistance:
-
≤100Ω
-
Power supply:
-
DC24V,±10%;AC85-265V
-
Temperature drift:
-
0.005%F.S./℃ (-20℃~+55℃)
-
Certificate:
-
ISO9001,CE
-
Color:
-
GREY
Quick Details
-
Warranty:
-
1 YEAR
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Qidian
-
Model Number:
-
BSRK
-
Input signal:
-
PT100,Cu50 and other resistance signal
-
Output signal:
-
4-20mA;0-20mA;0-5V;0-10V etc
-
Output load resistance:
-
RL≤500Ω(output current signal) RL≥1KΩ(output voltage signal)
-
Allowed line resistance:
-
≤100Ω
-
Power supply:
-
DC24V,±10%;AC85-265V
-
Temperature drift:
-
0.005%F.S./℃ (-20℃~+55℃)
-
Certificate:
-
ISO9001,CE
-
Color:
-
GREY
Introduction

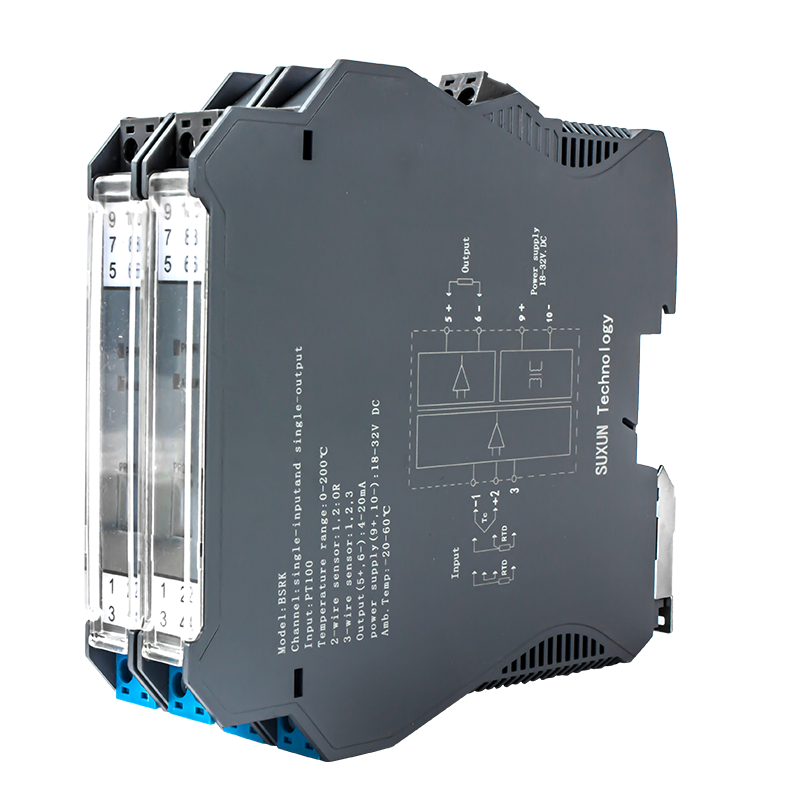

<1>It accepts the thermal resistance signal from the site,isolates and transformers it to standard current or voltage signal,then send the standard signal to the control room,PLC DCS and display instrument.
<2> This product has 3 types,1 in/1 out,1 in/2 out,2 in/2 out,input and output signal can be customized.
<3>
PT100,Cu50 sensor direct interface,containing linearized long line compensation.4-port isolation,the 2 output routes are isolated from each other.DIN T rail independent mounting,terminals pluggable.
| Input | Input signal | PT100,Cu50 and other resistance signal |
| RTD excitation voltage | 2.5V | |
| Allowed line resistance | ≤100Ω | |
| Output | Output signal | 4-20mA;0-20mA;0-5V;0-10V etc |
| Output load resistance |
RL≤500Ω(output current signal)
RL≥1KΩ(output voltage signal) |
|
| Parameters | Power supply | DC24V,±10%;AC85-265V |
| Current consumption |
≤70mA(1 in 1 out,24V power supply output 20mA) ≤90mA(1 in 2out,24V power supply output 20mA) ≤100mA(2 in 2 out,24V power supply output 20mA) |
|
| Accuracy | 0.2%F.S. | |
| Temperature drift | 0.005%F.S./℃ (-20℃~+55℃) | |
| Isolation intensity | 1500V AC/1min(between input-ouput-power) | |
| Insulation resistance | ≥100MΩ(between input-ouput-power) | |
| Working temperature range | -20℃~+55℃ | |
| EMC | complies with GB/T 18268(IEC61326-1) | |
| Applicable equipment | 2-wires or 3-wires thermal resistance |
